Model
IKEA ICS300RQ02
30" Gas Cooktop
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
ICS300RQ0230" Gas Cooktop
1 diagram31 parts
Parts Sections (1)
Diagram

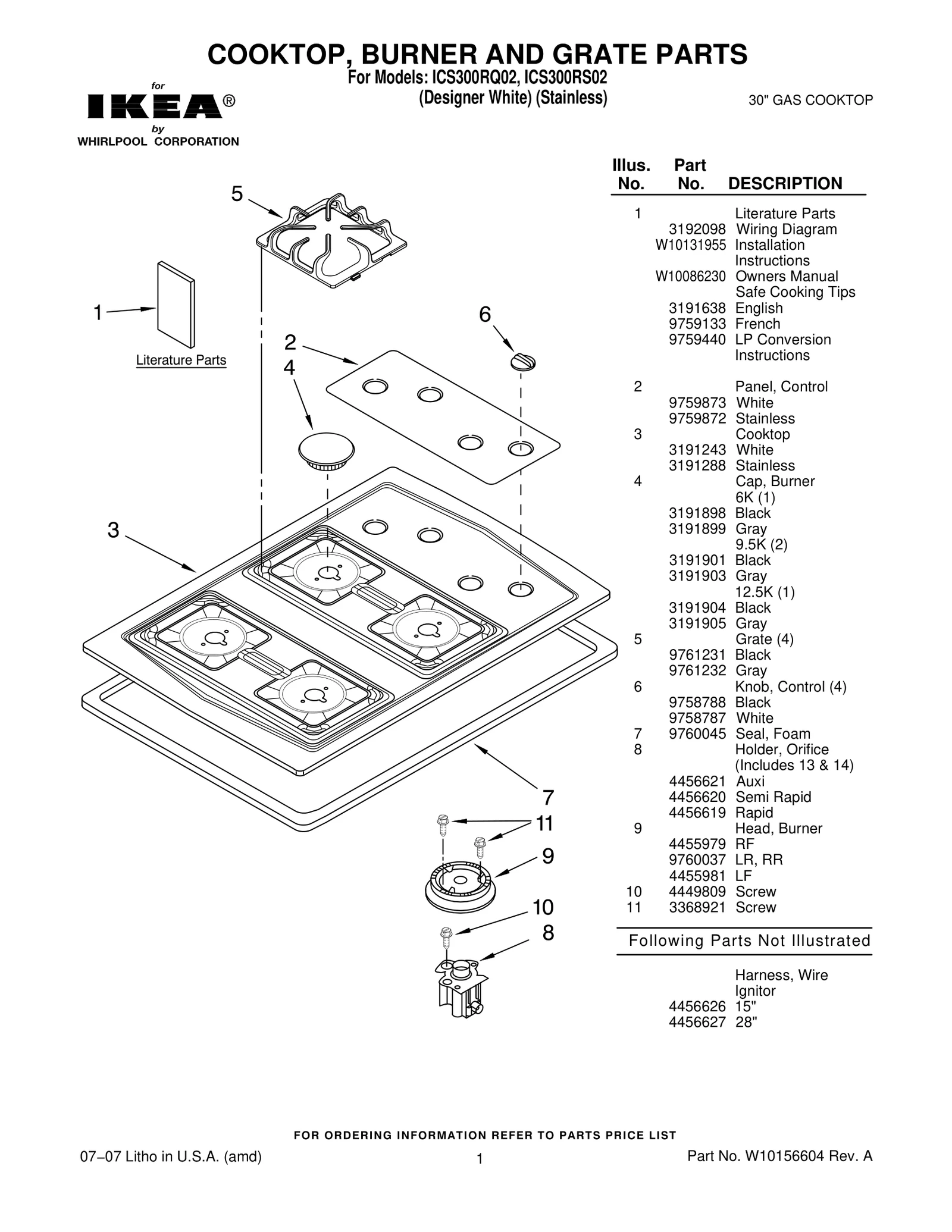

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3192098 Wiring Diagram | - |
| 1 | – | W10131955 Installation Instructions | - |
| 1 | – | W10086230 Owners Manual Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 1 | – | 9759440 LP Conversion Instructions | - |
| 2 | – | 9759873 Panel, Control — White | - |
| 2 | – | 9759872 Panel, Control — Stainless | - |
| 3 |  | WP3191243replaces 3191243 Cooktop — White | - |
| 3 |  | W11230936replaces 3191288 Cooktop — Stainless | $242.25 Part Advantage |
| 4 |  | WP3191898replaces 3191898 Cap, Burner 6K (1) — Black | $61.55 PartSelect |
| 4 | | 3191899NLA Cap, Burner 6K (1) — Gray | Discontinued |
| 4 |  | WP3191901replaces 3191901 Cap, Burner 6K (1) — Black | $77.76 ApplianceParts Pro |
| 4 |  | WP3191903replaces 3191903 Cap, Burner 6K (1) — Gray | $98.57 Part Advantage |
| 4 |  | WP3191904replaces 3191904 Cap, Burner 6K (1) — Black | $118.52 PartSelect |
| 4 |  | WP3191905replaces 3191905 Cap, Burner 6K (1) — Gray | $63.65 ApplianceParts Pro |
| 5 | | WP9761231replaces 9761231 Grate (4) — Black | $95.32 ApplianceParts Pro |
| 5 | – | 9761232 Grate (4) — Gray | - |
| 6 |  | Knob, Control (4) — Black | $14.43 ApplianceParts Pro |
| 6 | | Knob, Control (4) — White | - |
| 7 | | Seal, Foam | - |
| 8 |  | WPW10128448replaces 4456621 Holder, Orifice — Auxi | $62.08 Part Advantage |
| 8 |  | WPW10155784replaces 4456620 Holder, Orifice — Semi Rapid | $41.28 Part Advantage |
| 8 |  | WPW10155785replaces 4456619 Holder, Orifice — Rapid | $41.77 Part Advantage |
| 9 |  | WP4455979replaces 4455979 Head, Burner — RF | $37.41 Parts Dr |
| 9 | | LR, RR | - |
| 9 |  | WP4455981replaces 4455981 Head, Burner — LF | $75.95 ApplianceParts Pro |
| 10 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 11 |  | WP3368921replaces 3368921 Screw Following Parts Not Illustrated Harness, Wire Ignitor | $1.48 Part Advantage |
| 11 |  | 15" | $29.10 Part Advantage |
| 11 |  | 28" | $35.03 RepairClinic |
