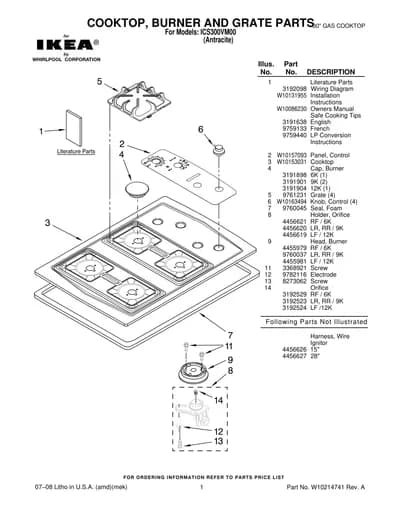

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3192098 Wiring Diagram | - |
| 1 | – | W10131955 Installation Instructions | - |
| 1 | – | W10086230 Owners Manual Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 1 | – | 9759440 LP Conversion Instructions | - |
| 2 | – | W10157093 Panel, Control | - |
| 3 | – | W10153031 Cooktop | - |
| 4 |  | WP3191898replaces 3191898 6K (1) | $61.55 PartSelect |
| 4 |  | WP3191901replaces 3191901 9K (2) | $77.76 ApplianceParts Pro |
| 4 |  | WP3191904replaces 3191904 12K (1) | $118.52 PartSelect |
| 5 | | WP9761231replaces 9761231 Grate (4) | $95.32 ApplianceParts Pro |
| 6 | | Knob, Control (4) | - |
| 7 | | Seal, Foam | - |
| 8 |  | WPW10128448replaces 4456621 Holder, Orifice — RF / 6K | $62.08 Part Advantage |
| 8 |  | WPW10155784replaces 4456620 LR, RR / 9K | $41.28 Part Advantage |
| 8 |  | WPW10155785replaces 4456619 Holder, Orifice — LF / 12K | $41.77 Part Advantage |
| 9 |  | WP4455979replaces 4455979 Head, Burner — RF / 6K | $37.41 Parts Dr |
| 9 | | LR, RR / 9K | - |
| 9 |  | WP4455981replaces 4455981 Head, Burner — LF / 12K | $75.95 ApplianceParts Pro |
| 11 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 12 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 13 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 14 |  | WP3192529replaces 3192529 Orifice — RF / 6K | - |
| 14 |  | WP3192523replaces 3192523 LR, RR / 9K | $56.33 PartSelect |
| 14 |  | WP9753930replaces 3192524 Orifice — LF /12K | $51.62 ApplianceParts Pro |
| 14 |  | Orifice — 15" | $29.10 Part Advantage |
| 14 |  | Orifice — 28" | $35.03 RepairClinic |
