Model
IKEA IFR42001
Compact Automatic Washer
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IFR42001Compact Automatic Washer
7 diagrams140 parts

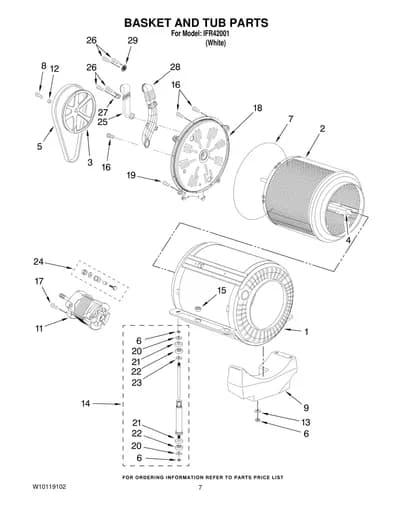

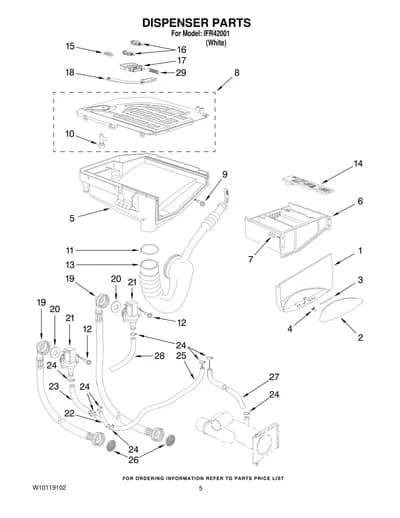

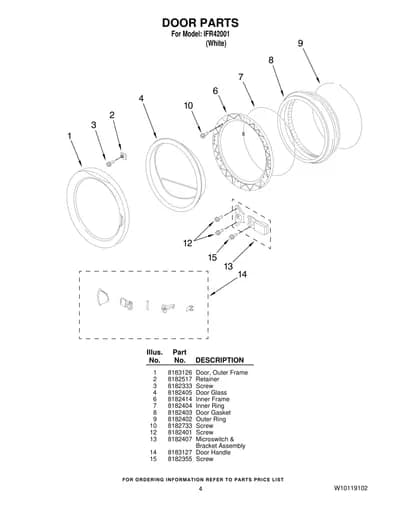

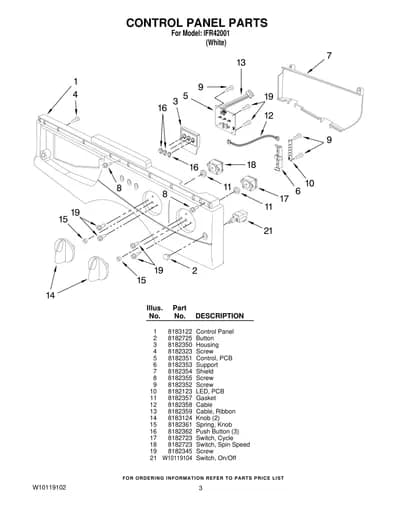

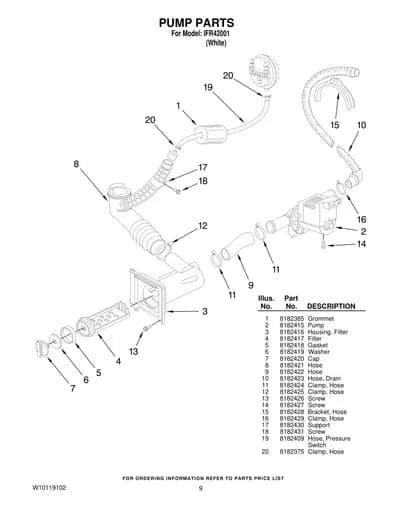

Parts Sections (7)
Diagram

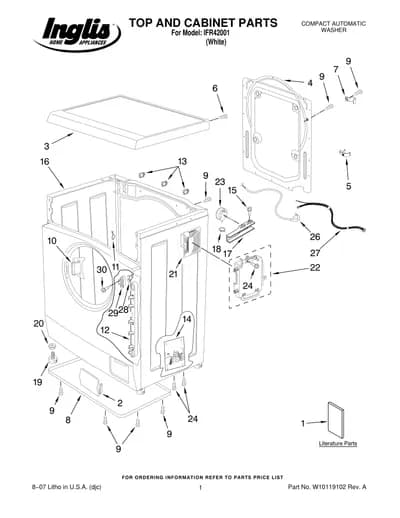

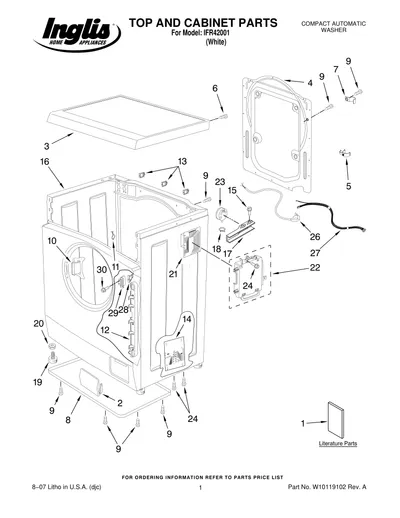

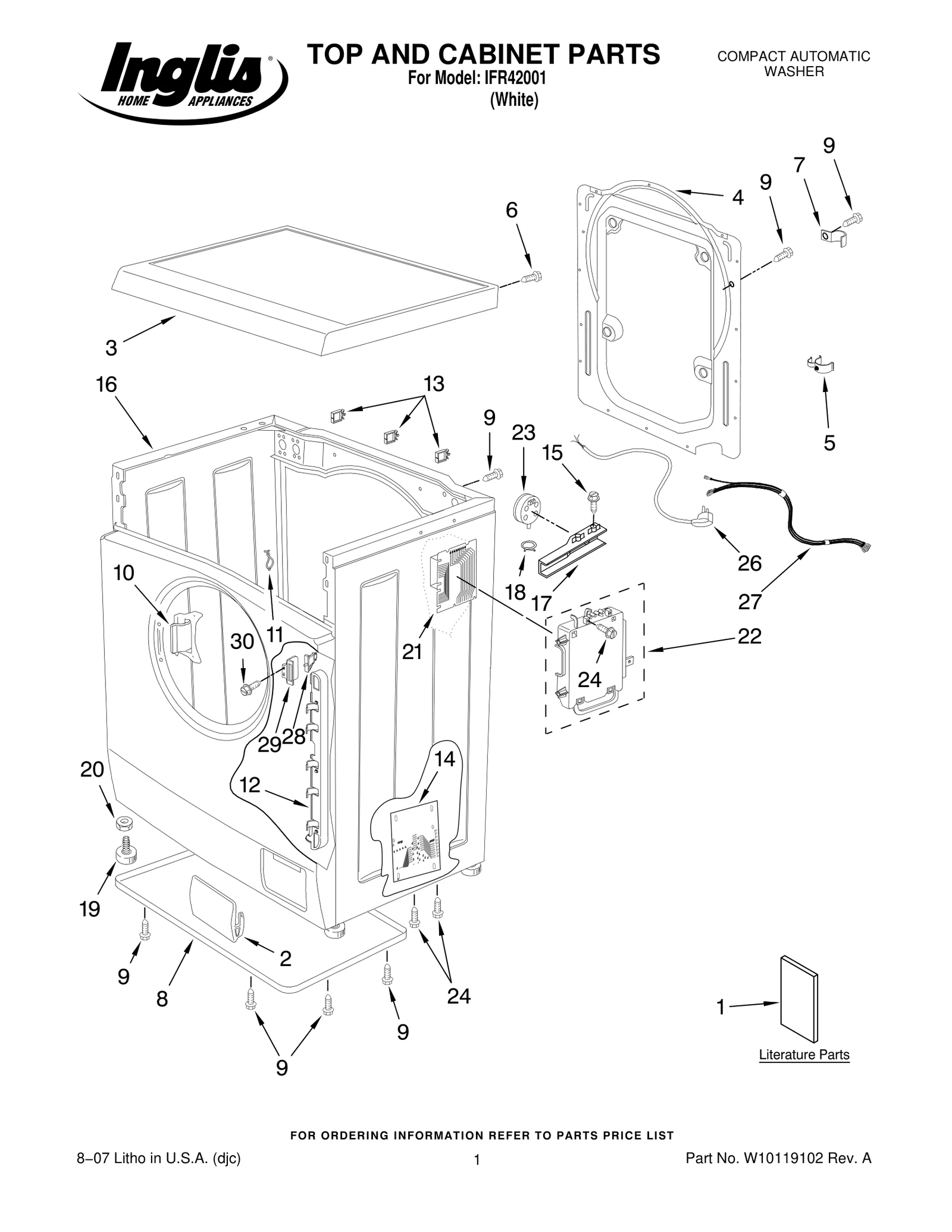

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8578920 Use & Care Guide | - |
| 1 | – | W10156738 Wiring Diagram | - |
| 2 |  | Cover, Filter | $61.94 RepairClinic |
| 3 | | Top | - |
| 4 | – | 8183139 Panel, Rear | - |
| 5 | | Clamp, Hose | - |
| 6 |  | W11233072replaces 8182338 Screw | $8.78 Part Advantage |
| 7 | – | 8182324 Clamp, Hose | - |
| 8 | – | 8183142 Bottom Plate | - |
| 9 |  | W11245710replaces 8182323 Screw | $10.70 Parts Dr |
| 10 | – | N/S Hinge | - |
| 11 | | Clip, Harness | - |
| 12 | | Support, Harness | - |
| 13 | – | 8182328 Clip | - |
| 14 | | 8183137NLA Control, Inverter | Discontinued |
| 15 | – | W10119096 Screw | - |
| 16 | – | N/S Cabinet | - |
| 17 | – | W10119095 Bracket, Pressure Switch | - |
| 18 | | Clamp | - |
| 19 | | Foot, Leveling | - |
| 20 | | Nut | - |
| 21 | – | 8183273 Electronic Control | - |
| 22 | | Bracket, Control | - |
| 23 |  | Switch, Pressure | $154.41 RepairClinic |
| 24 | | W11233072replaces 8182341 Screw | $8.78 Part Advantage |
| 26 | | Power Cord | - |
| 27 | – | W10156737 Harness, Main | - |
| 28 |  | Microswitch, Door | Discontinued |
| 29 | | Bracket | - |
| 30 |  | Screw | - |
