Model
Amana IGD7200TW10
27" Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
IGD7200TW1027" Gas Dryer
5 diagrams98 parts

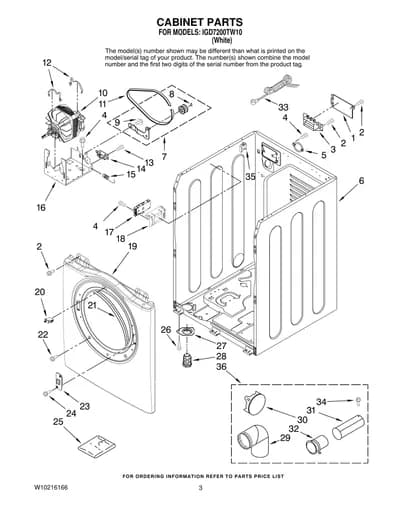

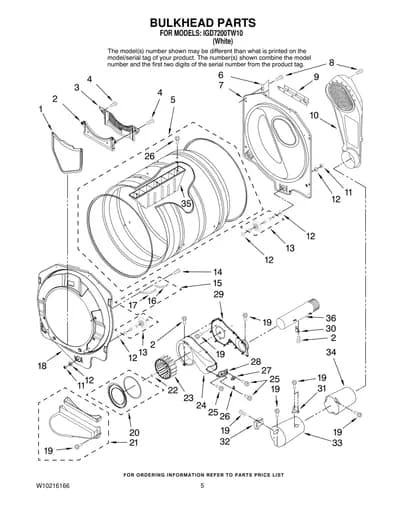

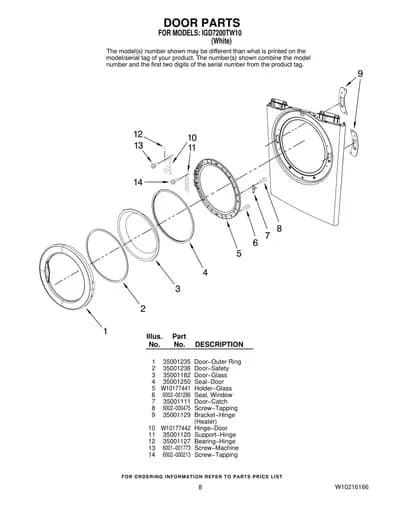

Parts Sections (5)
Diagram

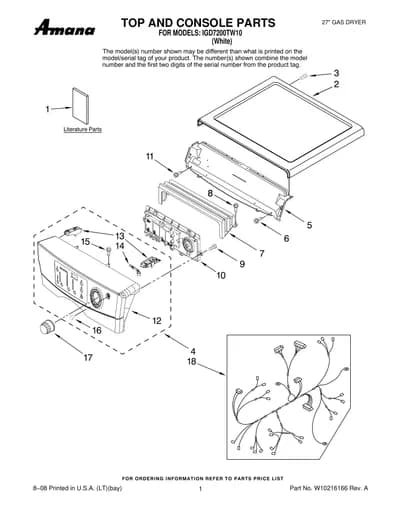

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10161019 Use & Care Guide | - |
| 1 | – | 16026881 Tech Sheet | - |
| 1 | – | W10161759 Installation, Instruction | - |
| 2 |  | Top | - |
| 3 | – | N/S 6009−001476 Screw−Hex (2) | - |
| 4 | – | W10222765 Panel−Console Assembly | - |
| 5 | – | 35001162 Frame−Plate | - |
| 6 | – | N/S 6006−001174 Screw−Tapping (2) | - |
| 7 | – | 35001232 Support−Panel | - |
| 8 | – | N/S 6002−000470 Screw−Tapping (4) | - |
| 9 | – | 600200213 Screw−Tapping (5) | - |
| 10 | – | 35001269 User Interface | - |
| 11 | – | N/S 6006−001170 Screw−Tapping (1) | - |
| 12 | – | 35001229 Panel−Control | - |
| 13 | – | 35001231 Bracket−Panel | - |
| 14 | | Lever−Power | - |
| 15 | – | N/S 6002−000231 Screw−Tapping (4) | - |
| 16 | | Button, Power | - |
| 17 | | Knob, Control | - |
| 18 | | Harness, Main FOR MODELS: IGD7200TW10 | - |
