Model
IKEA IGS365RS3
30" Gas Freestanding Self Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IGS365RS330" Gas Freestanding Self Clean Range
7 diagrams174 parts
Parts Sections (7)
Diagram

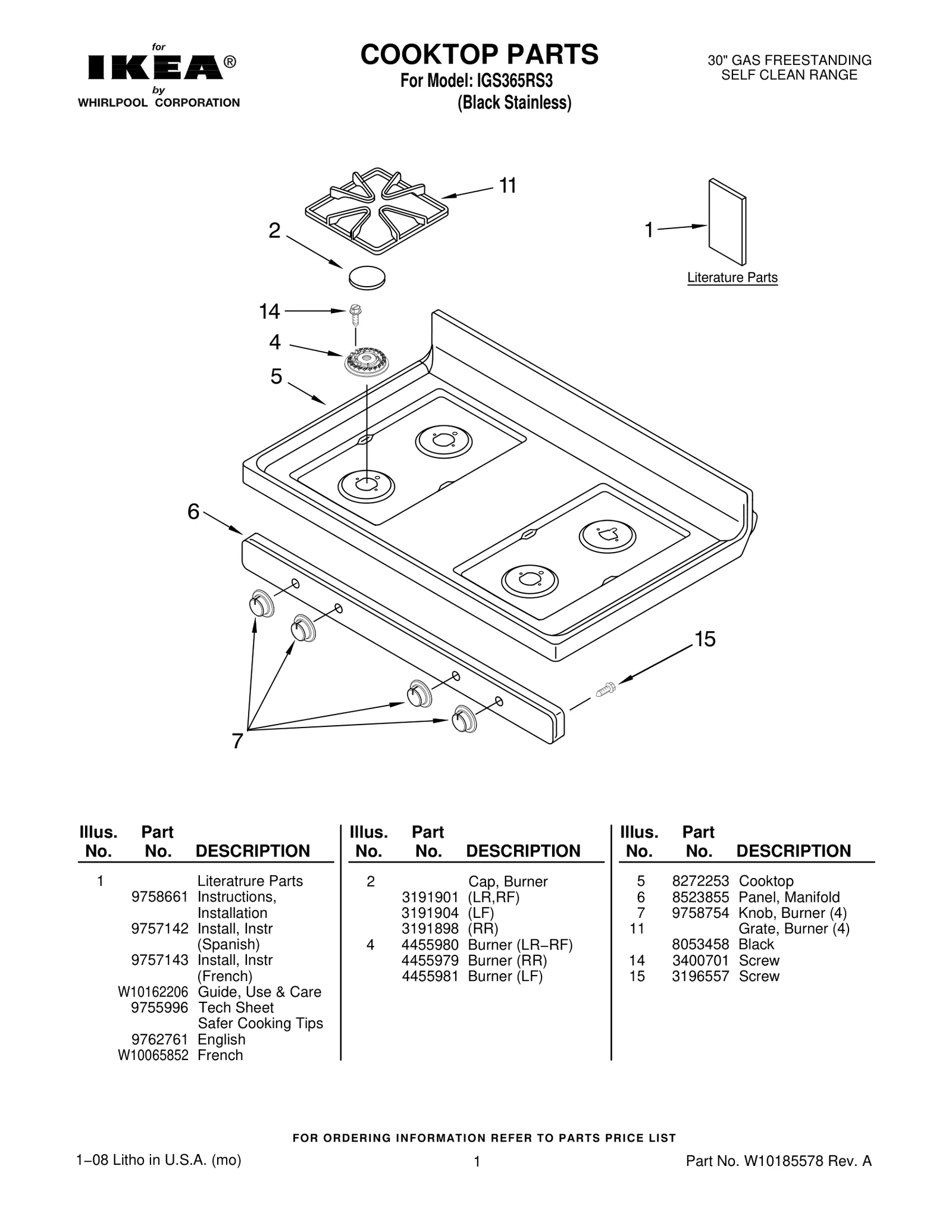

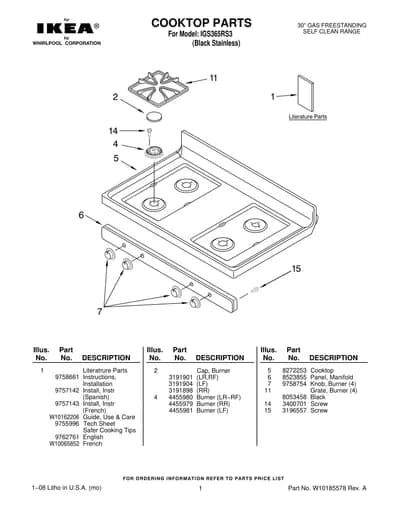

COOKTOP PARTS
Parts in COOKTOP PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9758661 Instructions, Installation | - |
| 1 | – | 9757142 Install, Instr | - |
| 1 | – | 9757143 Install, Instr | - |
| 1 | – | W10162206 Guide, Use & Care | - |
| 1 | – | 9755996 Tech Sheet Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WP3191901replaces 3191901 (LR,RF) | $77.76 ApplianceParts Pro |
| 2 |  | WP3191904replaces 3191904 (LF) | $118.52 PartSelect |
| 2 |  | WP3191898replaces 3191898 (RR) | $61.55 PartSelect |
| 4 |  | WP4455980replaces 4455980 Burner (LR−RF) | $38.12 Part Advantage |
| 4 |  | W10888931replaces 4455979 Burner (RR) | - |
| 4 |  | WP4455981replaces 4455981 Burner (LF) | $75.95 ApplianceParts Pro |
| 5 |  | W11213958replaces 8272253 Cooktop | - |
| 6 |  | Panel, Manifold | - |
| 7 | – | 9758754 Knob, Burner (4) | - |
| 11 |  | WPW10268483replaces 8053458 Grate, Burner (4) — Black | $82.31 Part Advantage |
| 14 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 15 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
