Model
IKEA IGS385RS3
30" Gas Freestanding Self Clean Range Sealed Burner
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IGS385RS330" Gas Freestanding Self Clean Range Sealed Burner
7 diagrams176 parts
Parts Sections (7)
Diagram

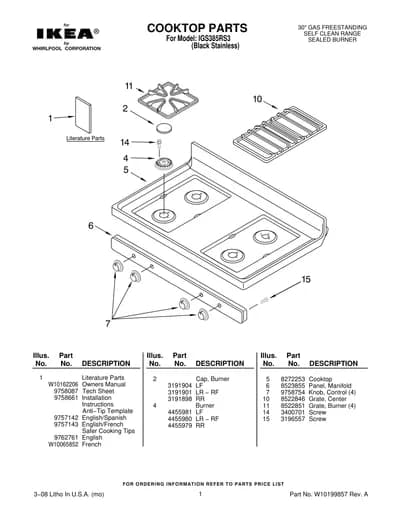

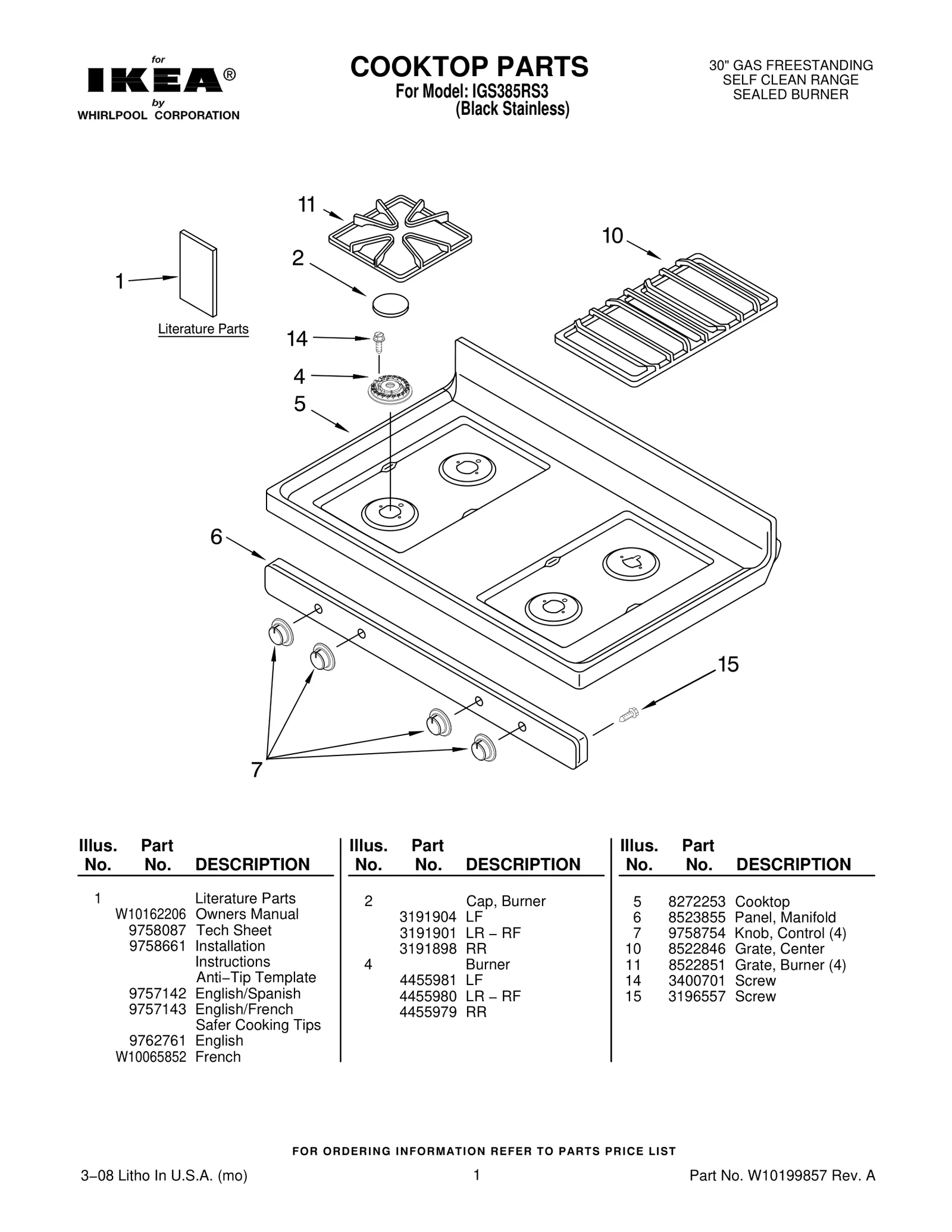

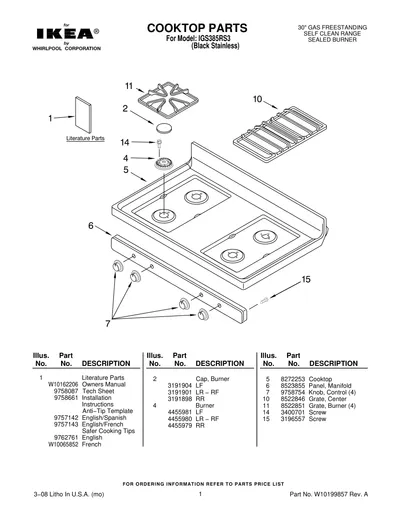

COOKTOP PARTS
Parts in COOKTOP PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10162206 Owners Manual | - |
| 1 | – | 9758087 Tech Sheet | - |
| 1 | – | 9758661 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WP3191904replaces 3191904 Cap, Burner — LF | $118.52 PartSelect |
| 2 |  | WP3191901replaces 3191901 Cap, Burner — LR − RF | $77.76 ApplianceParts Pro |
| 2 |  | WP3191898replaces 3191898 Cap, Burner — RR | $61.55 PartSelect |
| 4 |  | WP4455981replaces 4455981 Burner — LF | $75.95 ApplianceParts Pro |
| 4 |  | WP4455980replaces 4455980 Burner — LR − RF | $38.12 Part Advantage |
| 4 |  | WP4455979replaces 4455979 Burner — RR | $37.41 Parts Dr |
| 5 |  | W11213958replaces 8272253 Cooktop | - |
| 6 |  | Panel, Manifold | - |
| 7 | – | 9758754 Knob, Control (4) | - |
| 10 |  | 8522846NLA Grate, Center | Discontinued |
| 11 |  | WPW10447925replaces 8522851 Grate, Burner (4) | $197.17 Parts Dr |
| 14 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 15 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
