Model
IKEA IH1300RQ0
30" Range Hood
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IH1300RQ030" Range Hood
1 diagram27 parts
Parts Sections (1)
Diagram

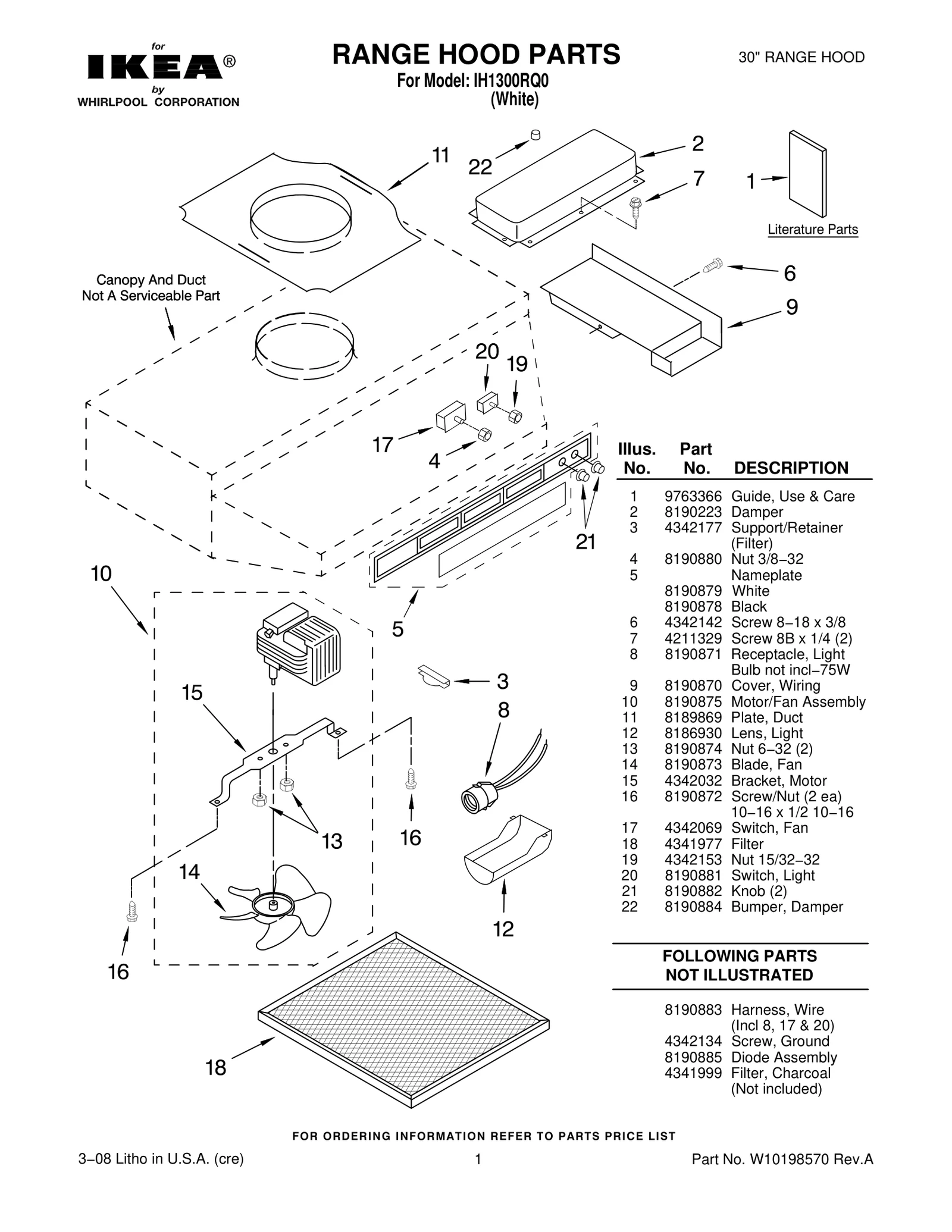

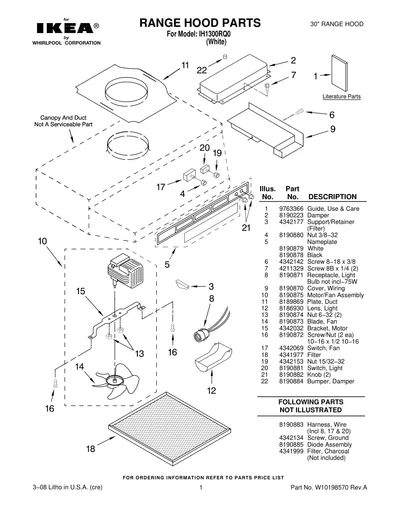

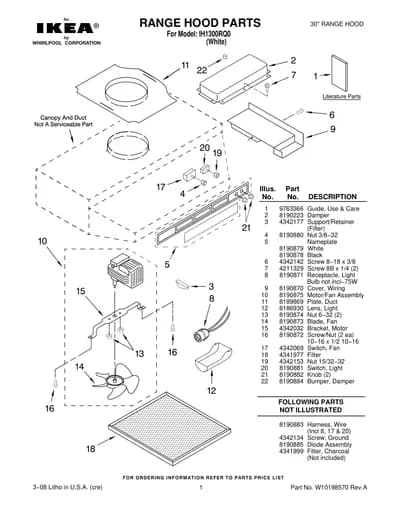

RANGE HOOD PARTS
Parts in RANGE HOOD PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9763366 Guide, Use & Care | - |
| 2 |  | 8190223NLA Damper | Discontinued |
| 3 | | 4342177NLA Support/Retainer | Discontinued |
| 4 | – | 8190880 Nut 3/8−32 | - |
| 5 | – | 8190879 Nameplate — White | - |
| 5 | – | 8190878 Nameplate — Black | - |
| 6 | – | 4342142 Screw 8−18 x 3/8 | - |

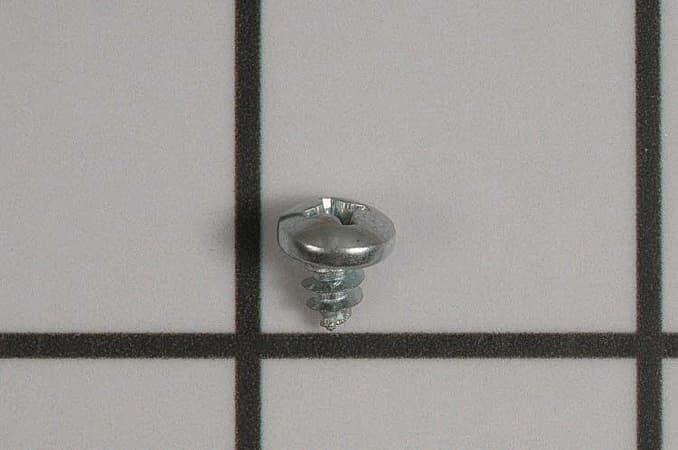

| 7 |  | WP7101P246-60replaces 4211329 Screw 8B x 1/4 (2) | $5.00 RepairClinic |
| 8 | | 8190871NLA Receptacle, Light Bulb not incl−75W | Discontinued |
| 9 | | Cover, Wiring | - |
| 10 | | Motor/Fan Assembly | - |
| 11 | | Plate, Duct | - |
| 12 |  | WP8186930replaces 8186930 Lens, Light | $34.36 ApplianceParts Pro |
| 13 | – | 8190874 Nut 6−32 (2) | - |
| 14 | | 8190873NLA Blade, Fan | Discontinued |
| 15 | | Bracket, Motor | - |
| 16 | – | 8190872 Screw/Nut (2 ea) 10−16 x 1/2 10−16 | - |
| 17 | | Switch, Fan | - |

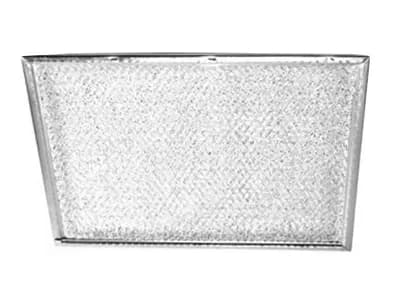

| 18 |  | Filter | Discontinued |
| 19 | – | 4342153 Nut 15/32−32 | - |
| 20 | | Switch, Light | - |
| 21 | – | 8190882 Knob (2) | - |
| 22 | – | 8190884 Bumper, Damper NOT ILLUSTRATED | - |
| 22 | | Harness, Wire | - |
| 22 | – | 4342134 Screw, Ground | - |
| 22 | | Diode Assembly | - |

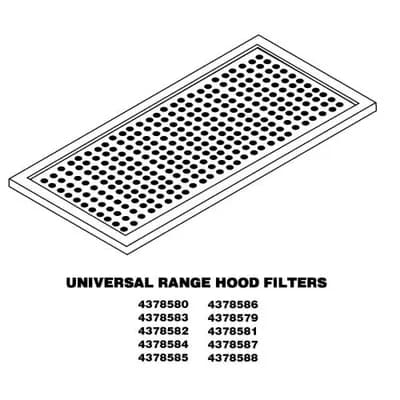

| 22 |  | 4378581replaces 4341999 Filter, Charcoal 3−08 Litho in U.S.A. (cre) 30" RANGE HOOD | $31.60 Parts Dr |
