Model
IKEA IHW6302VM0
30" Range Hood (Vented)
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IHW6302VM030" Range Hood (Vented)
1 diagram25 parts
Parts Sections (1)
Diagram

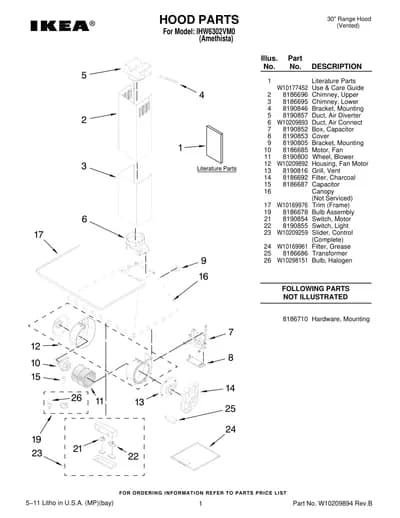

HOOD PARTS
Parts in HOOD PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10177452 Use & Care Guide | - |
| 2 | – | 8186696 Chimney, Upper | - |
| 3 |  | Chimney, Lower | - |
| 4 | – | 8190846 Bracket, Mounting | - |
| 5 | – | 8190857 Duct, Air Diverter | - |
| 6 | – | W10209893 Duct, Air Connect | - |
| 7 | – | 8190852 Box, Capacitor | - |
| 8 | – | 8190853 Cover | - |
| 9 | | 8190805NLA Bracket, Mounting | Discontinued |
| 10 | | Motor, Fan | - |
| 11 | | 8190800NLA Wheel, Blower | Discontinued |
| 12 | – | W10209892 Housing, Fan Motor | - |
| 13 | | Grill, Vent | - |
| 14 | | Filter, Charcoal | - |
| 15 |  | Capacitor | - |
| 16 | – | N/S Canopy | - |
| 17 | – | W10169976 Trim (Frame) | - |
| 19 |  | WPW10298151replaces 8186678 Bulb Assembly | $11.75 Part Advantage |
| 21 | | Switch, Motor | - |
| 22 | | 8190855NLA Switch, Light | Discontinued |
| 23 | | Slider, Control | - |
| 24 |  | W10169961Areplaces W10169961 Filter, Grease | $21.10 Part Advantage |
| 25 |  | W11186486replaces 8186686 Transformer | $131.95 ApplianceParts Pro |
| 26 | | WPW10298151replaces W10298151 Bulb, Halogen NOT ILLUSTRATED | $11.75 Part Advantage |
| 26 | – | 8186710 Hardware, Mounting | - |
