Model
IKEA IHW8305VS0
30" Range Hood (Vented)
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IHW8305VS030" Range Hood (Vented)
1 diagram22 parts
Parts Sections (1)
Diagram

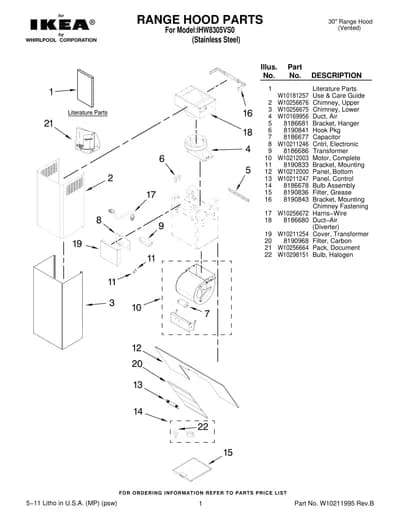

RANGE HOOD PARTS
Parts in RANGE HOOD PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10181257 Use & Care Guide | - |
| 2 | – | W10256676 Chimney, Upper | - |
| 3 |  | Chimney, Lower | - |
| 4 | | Duct, Air | - |
| 5 | – | 8186681 Bracket, Hanger | - |
| 6 | – | 8190841 Hook Pkg | - |
| 7 |  | Capacitor | - |
| 8 |  | WPW10211246replaces W10211246 Cntrl, Electronic | - |
| 9 |  | W11186486replaces 8186686 Transformer | $131.95 ApplianceParts Pro |
| 10 | | W10212003NLA Motor, Complete | Discontinued |
| 11 | – | 8190833 Bracket, Mounting | - |
| 12 | – | W10212000 Panel, Bottom | - |
| 13 | | W10211247NLA Panel, Control | Discontinued |
| 14 |  | WPW10298151replaces 8186678 Bulb Assembly | $11.75 Part Advantage |
| 15 |  | WP8190836replaces 8190836 Filter, Grease | $78.44 Parts Dr |
| 16 | | 8190843NLA Bracket, Mounting Chimney Fastening | Discontinued |
| 17 | | Harns−Wire | - |
| 18 | – | 8186680 Duct−Air | - |
| 19 | – | W10211254 Cover, Transformer | - |
| 20 | | Filter, Carbon | - |
| 21 | | Pack, Document | - |
| 22 | | WPW10298151replaces W10298151 Bulb, Halogen | $11.75 Part Advantage |
