Model
IKEA IMH16XSS2
Microwave Oven 1.6 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IMH16XSS2Microwave Oven 1.6 Cu. Ft.
6 diagrams88 parts
Parts Sections (6)
Diagram

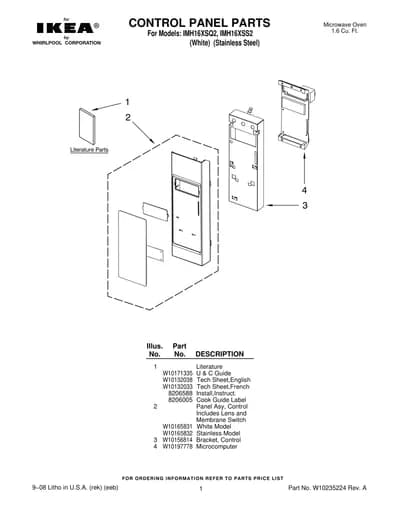

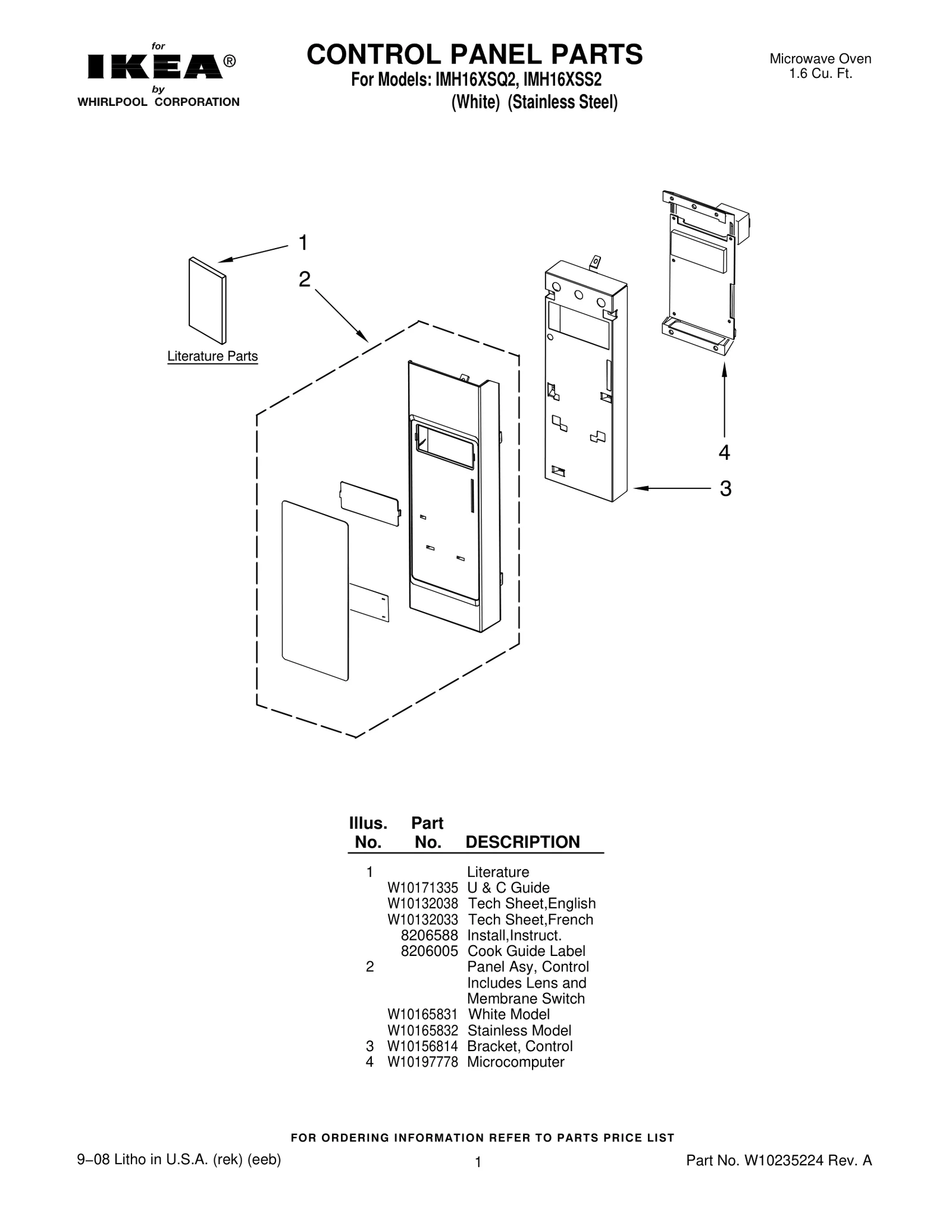

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10171335 U & C Guide | - |
| 1 | – | W10132038 Tech Sheet,English | - |
| 1 | – | W10132033 Tech Sheet,French | - |
| 1 | – | 8206588 Install,Instruct. | - |
| 1 | – | 8206005 Cook Guide Label | - |
| 2 | – | W10165831 Panel Asy, Control Includes Lens and Membrane Switch — White Model | - |
| 2 | – | W10165832 Panel Asy, Control Includes Lens and Membrane Switch — Stainless Model | - |
| 3 |  | W10156814NLA Bracket, Control | Discontinued |
| 4 | | W10197778NLA Microcomputer | Discontinued |
