Model
IKEA IMH16XVS0
Microwave Oven 1.6 Cu. Ft.
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IMH16XVS0Microwave Oven 1.6 Cu. Ft.
6 diagrams90 parts
Parts Sections (6)
Diagram

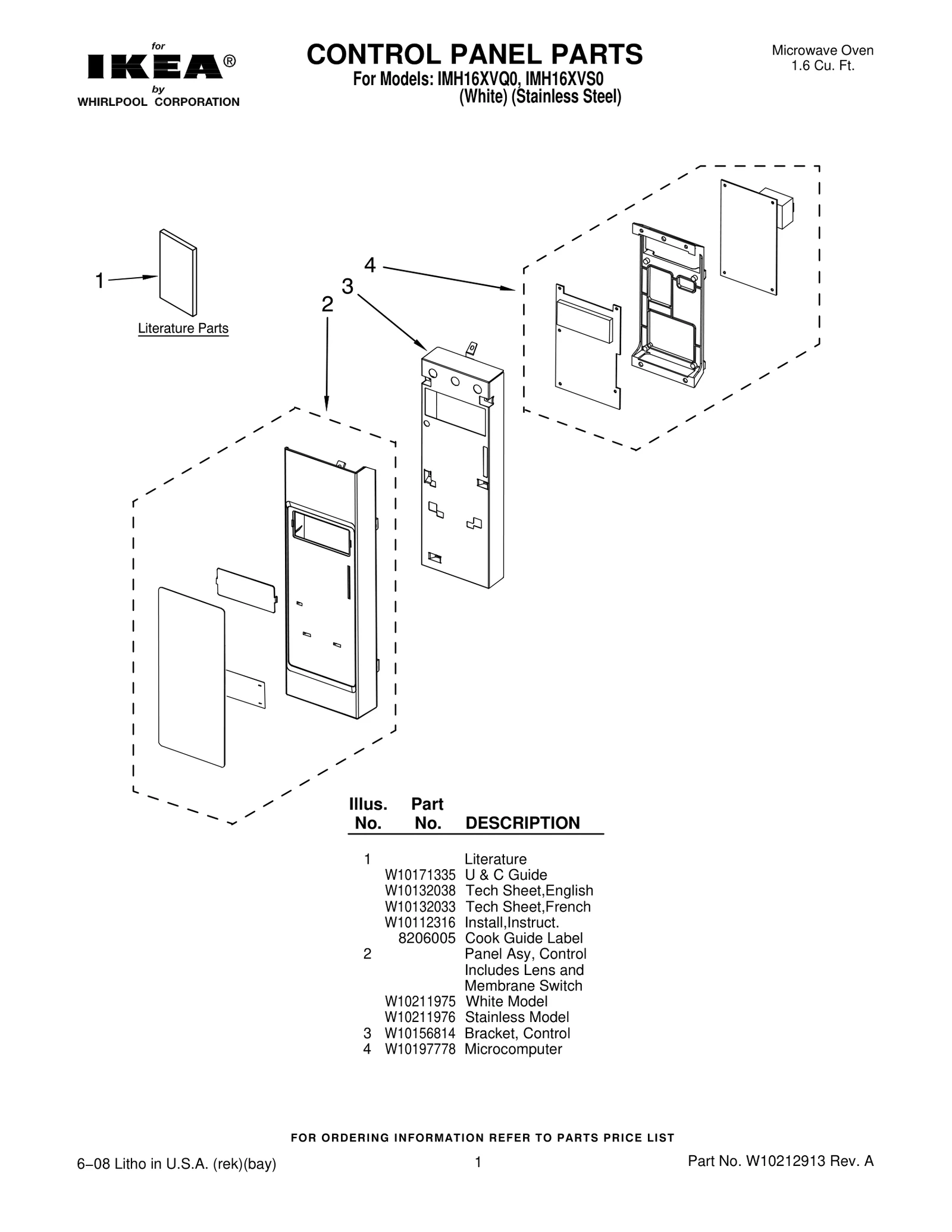

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10171335 U & C Guide | - |
| 1 | – | W10132038 Tech Sheet,English | - |
| 1 | – | W10132033 Tech Sheet,French | - |
| 1 |  | WPW10205978replaces W10112316 Install,Instruct. | $49.50 PartSelect |
| 1 | – | 8206005 Cook Guide Label | - |
| 2 |  | Panel Asy, Control Includes Lens and Membrane Switch — White Model | - |
| 2 | | Panel Asy, Control Includes Lens and Membrane Switch — Stainless Model | - |
| 3 | | W10156814NLA Bracket, Control | Discontinued |
| 4 | | W10197778NLA Microcomputer | Discontinued |
