IKEA IRE82304
30" Electric Freestanding Standard Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IRE8230430" Electric Freestanding Standard Clean Range
6 diagrams133 parts

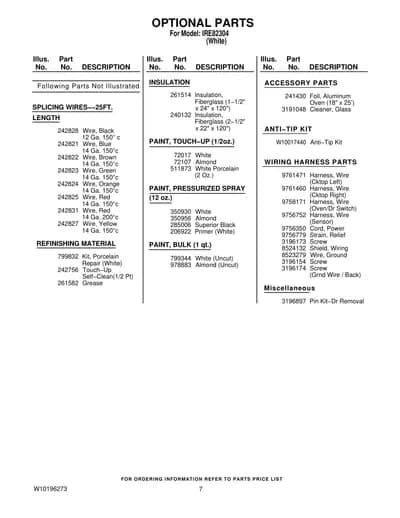

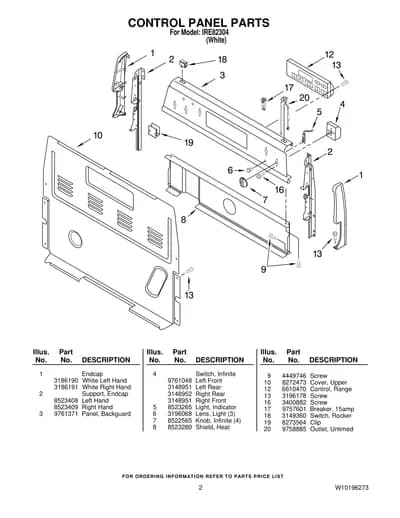

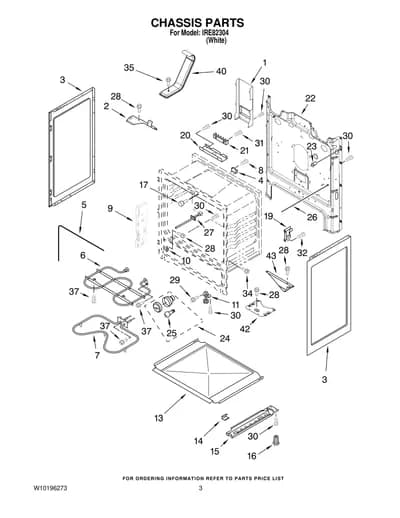

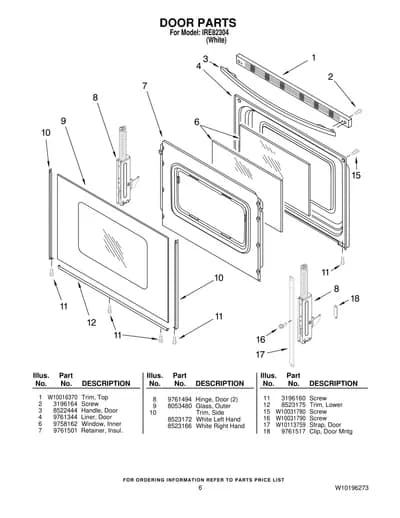

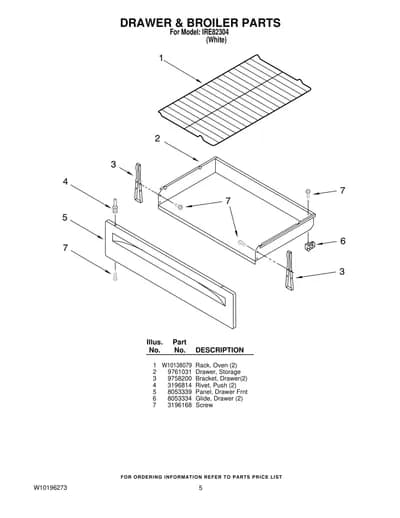

Parts Sections (6)
Diagram

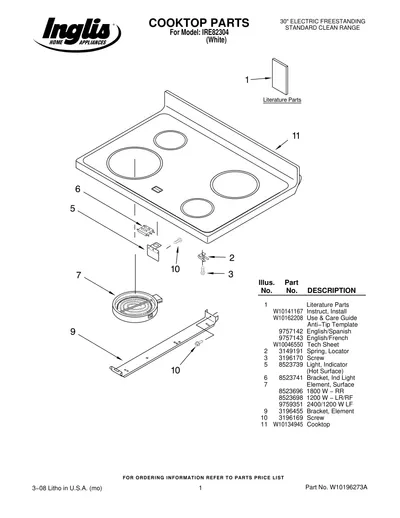

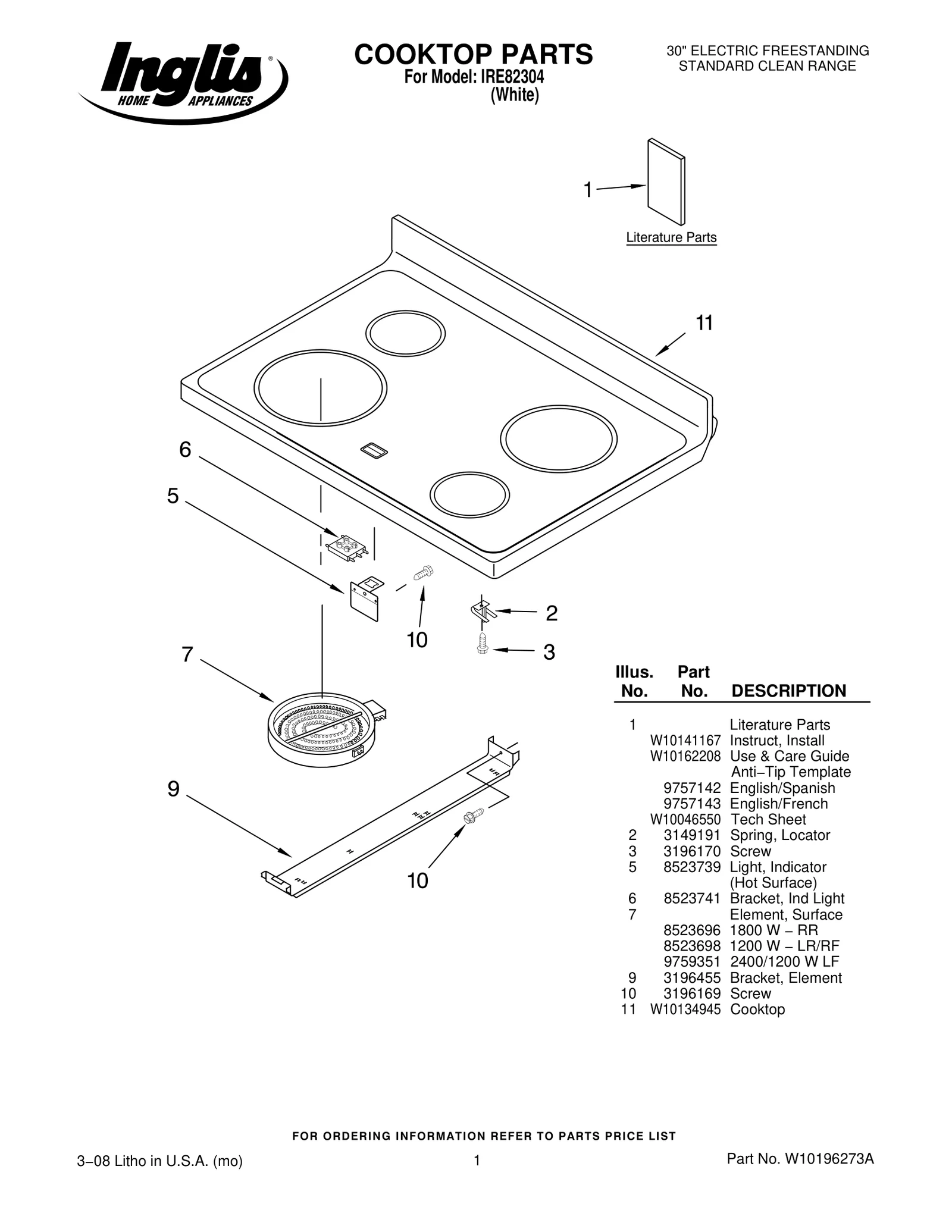

COOKTOP PARTS
Parts in COOKTOP PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10141167 Instruct, Install | - |
| 1 | – | W10162208 Use & Care Guide Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10046550 Tech Sheet | - |
| 2 |  | Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 5 | | Light, Indicator | - |
| 6 | – | 8523741 Bracket, Ind Light | - |
| 7 |  | W10823698replaces 8523696 Element, Surface — 1800 W − RR | $83.15 Part Advantage |
| 7 |  | W10823711replaces 8523698 Element, Surface — 1200 W − LR/RF | $92.55 Part Advantage |
| 7 |  | W10823692replaces 9759351 Element, Surface — 2400/1200 W LF | $119.42 Parts Dr |
| 9 | | Bracket, Element | - |
| 10 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 11 | – | W10134945 Cooktop | - |
