Model
IKEA ISG650VS12
30" Slide−In Gas Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
ISG650VS1230" Slide−In Gas Range
6 diagrams42 parts

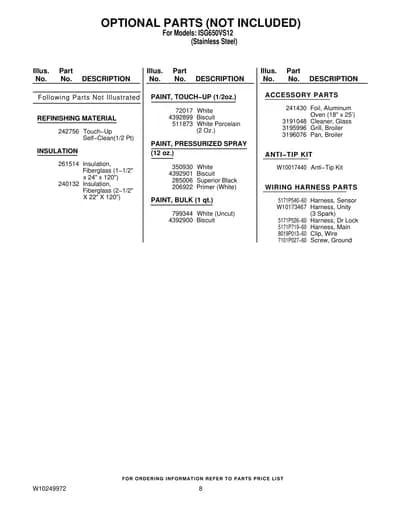

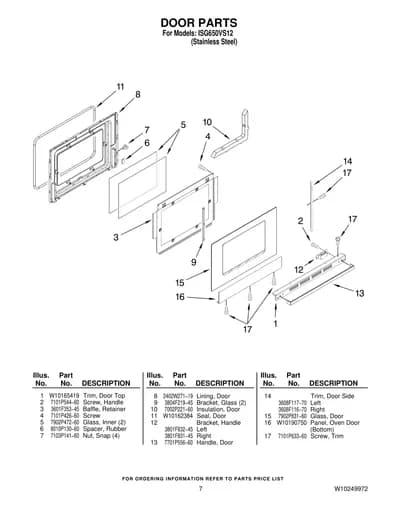

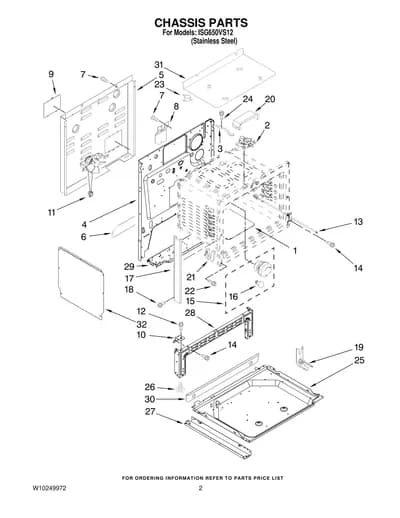

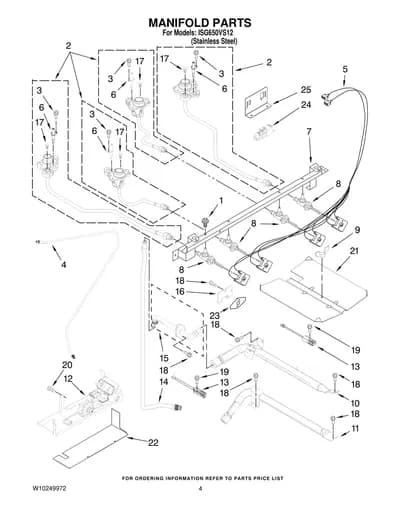

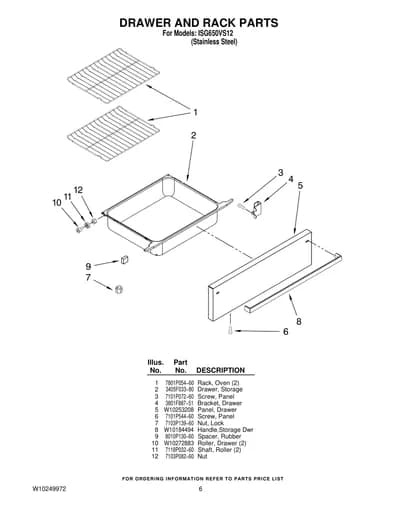

Parts Sections (6)
Diagram

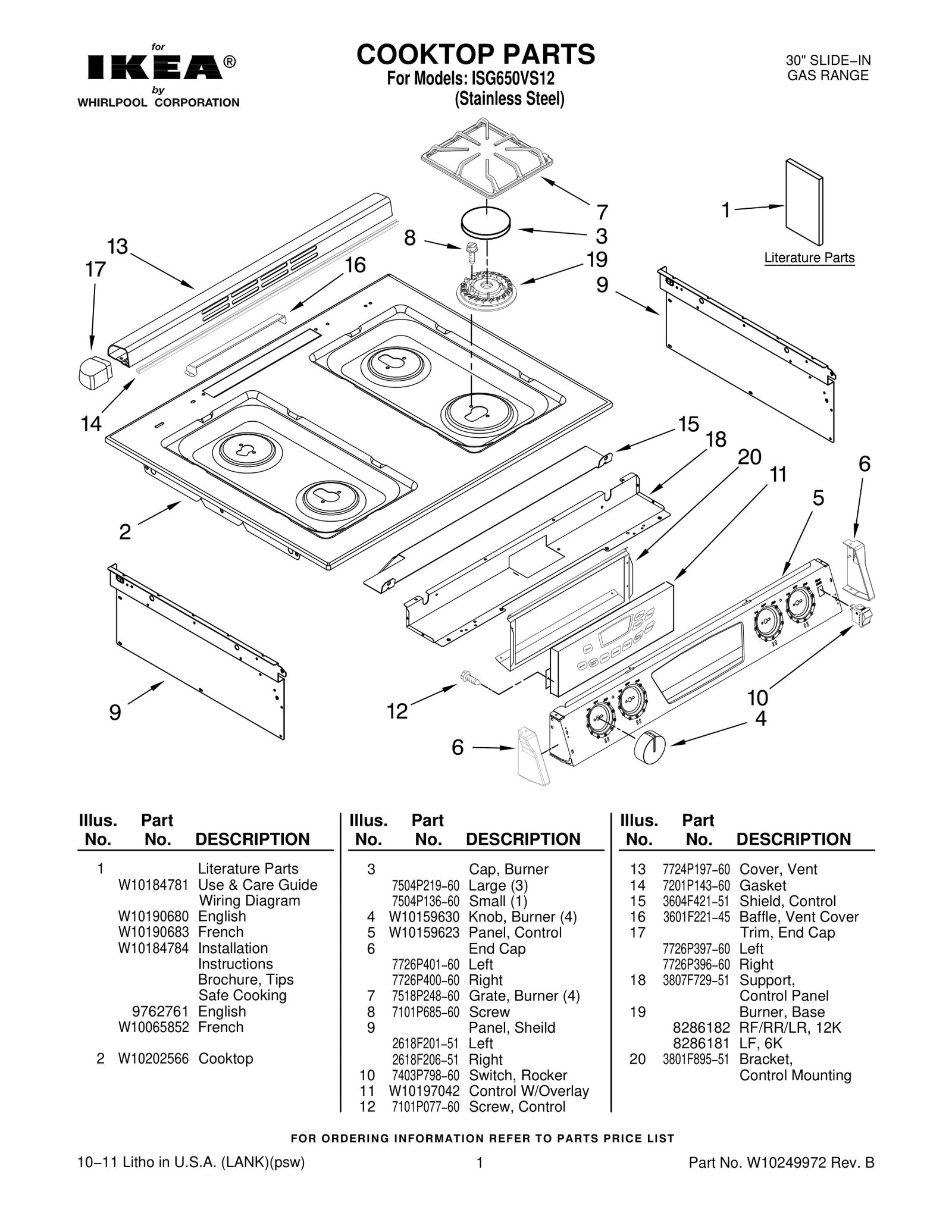

COOKTOP PARTS
Parts in COOKTOP PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10184781 Use & Care Guide Wiring Diagram | - |
| 1 | – | W10190680 English | - |
| 1 | – | W10190683 French | - |
| 1 | – | W10184784 Installation Instructions Brochure, Tips Safe Cooking | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 | – | W10202566 Cooktop | - |
| 3 | – | N/S Cap, Burner 7504P219−60 Large (3) 7504P136−60 Small (1) | - |

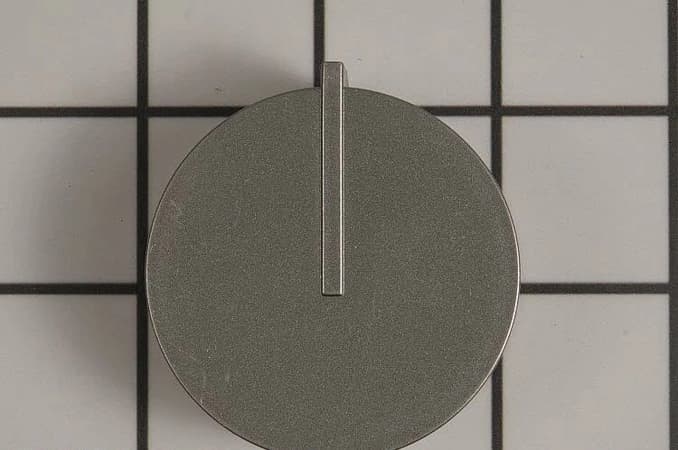

| 4 |  | Knob, Burner (4) | - |
| 5 |  | W10159623NLA Panel, Control | Discontinued |
| 6 | – | N/S End Cap 7726P401−60 Left 7726P400−60 Right | - |
| 7 | – | N/S 7518P248−60 Grate, Burner (4) | - |
| 8 | – | N/S 7101P685−60 Screw | - |
| 9 | – | N/S Panel, Sheild 2618F201−51 Left 2618F206−51 Right | - |
| 10 | – | N/S 7403P798−60 Switch, Rocker | - |
| 11 | | W10197042NLA Control W/Overlay | Discontinued |
| 12 | – | N/S 7101P077−60 Screw, Control | - |
| 13 | – | N/S 7724P197−60 Cover, Vent | - |
| 14 | – | N/S 7201P143−60 Gasket | - |
| 15 | – | N/S 3604F421−51 Shield, Control | - |
| 16 | – | N/S 3601F221−45 Baffle, Vent Cover | - |
| 17 | – | N/S Trim, End Cap 7726P397−60 Left 7726P396−60 Right | - |
| 18 | – | N/S 3807F729−51 Support, Control Panel | - |
| 19 |  | WPW10406797replaces 8286182 RF/RR/LR, 12K | $33.54 Part Advantage |
| 19 |  | WPW10406243replaces 8286181 LF, 6K | $12.98 Part Advantage |
| 20 | – | N/S 3801F895−51 Bracket, Control Mounting | - |
