Model
IKEA ISU98662
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
ISU98662Undercounter Dishwasher
12 diagrams148 parts
Parts Sections (12)
Diagram

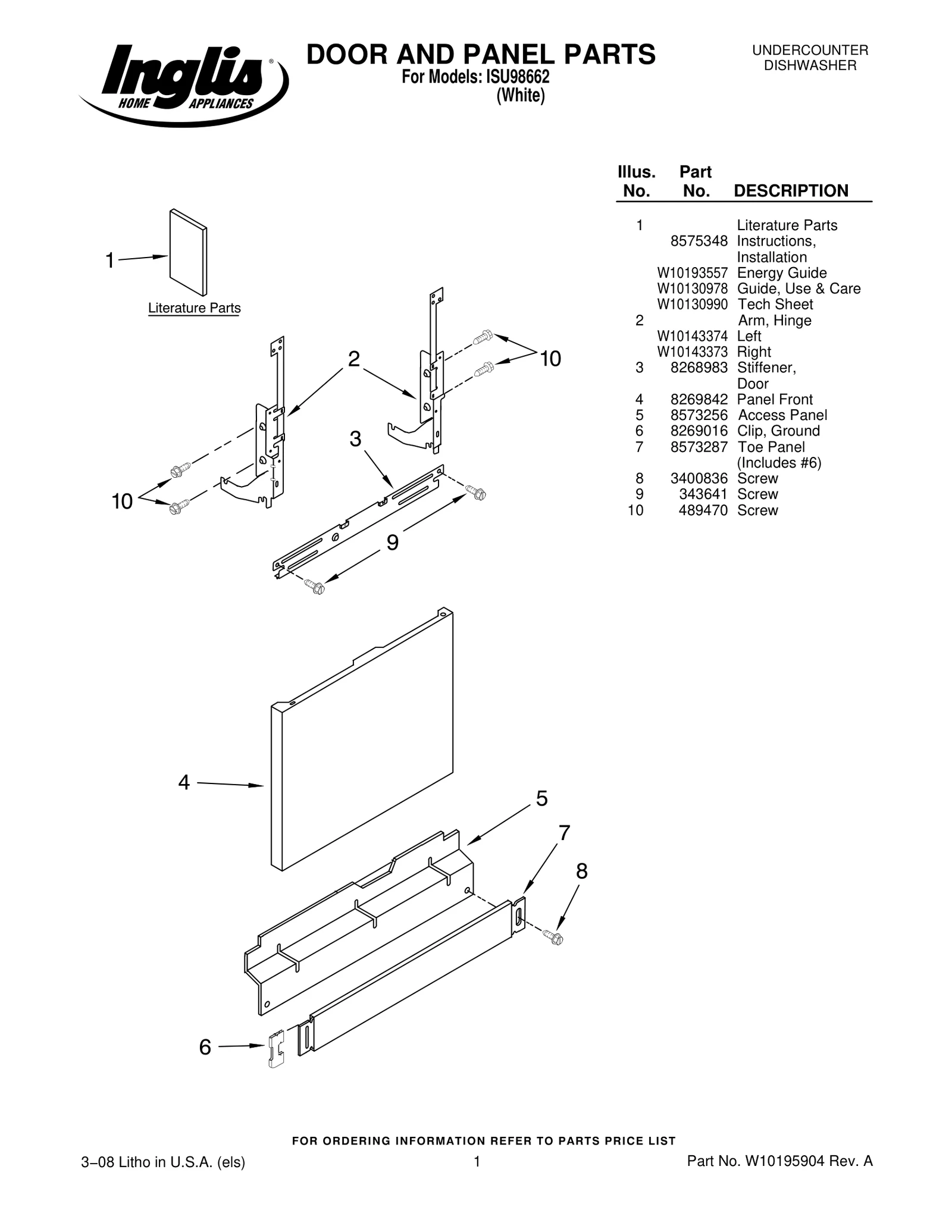

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8575348 Instructions, Installation | - |
| 1 | – | W10193557 Energy Guide | - |
| 1 | – | W10130978 Guide, Use & Care | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11613573replaces W10143374 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces W10143373 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 | | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | 8269842NLA Panel Front | Discontinued |
| 5 | | Access Panel | - |
| 6 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
| 7 |  | WP8573287replaces 8573287 Toe Panel | $74.95 ApplianceParts Pro |
| 8 |  | WP3400836replaces 3400836 Screw | $2.30 Part Advantage |
| 9 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 10 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
