Model
IKEA IT42000
Automatic Washer
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IT42000Automatic Washer
9 diagrams207 parts
Parts Sections (9)
Diagram

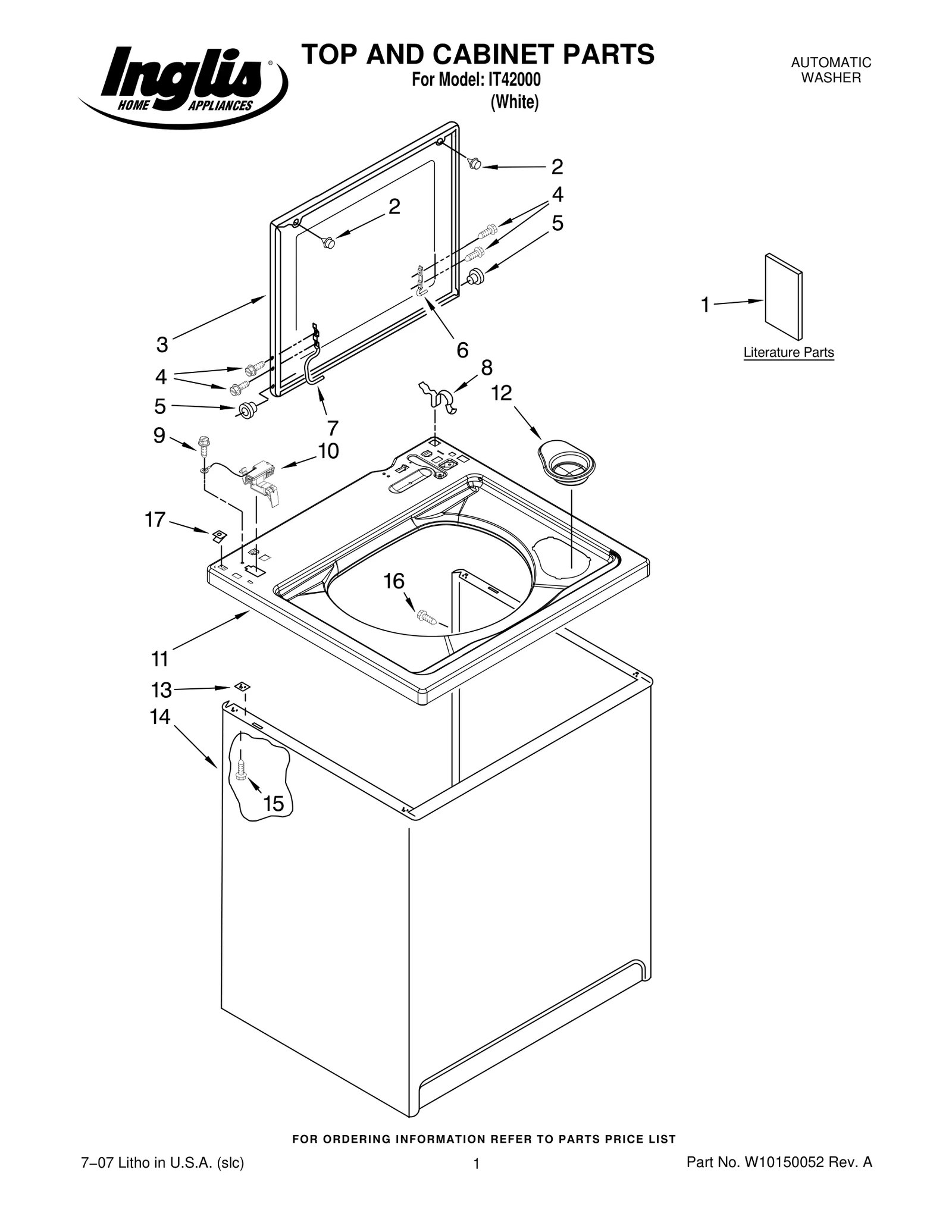

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10044800 Installation Instructions | - |
| 1 | – | W10096020 Feature Sheet | - |
| 1 | – | 8578236 Use & Care Guide | - |
| 1 | – | W10123189 Energy Guide | - |
| 1 | – | W10118358 Wiring Diagram | - |
| 2 |  | WP9724509replaces 9724509 Bumper, Lid (2) | $2.41 Part Advantage |
| 3 |  | Lid | Discontinued |
| 4 |  | WPW10119828replaces W10119828 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 5 | | 8319539NLA Bearing, Lid Hinge (2) | Discontinued |
| 6 |  | WP91770replaces 91770 Hinge, Lid (R.H.) | $8.06 Part Advantage |
| 7 | | 8559336NLA Hinge, Lid (L.H.) | Discontinued |
| 8 |  | WP62780replaces 62780 Clip,Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 9 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 10 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 11 | – | 8543451 Top | - |
| 12 | | 8566266NLA Dispenser, Bleach | Discontinued |
| 13 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 14 |  | Cabinet | - |
| 15 |  | WP3390631replaces 3390631 Screw 10−16 X 3/8 (4) | $2.30 Part Advantage |
| 16 |  | WP308685replaces 3357011 Screw, 10−16 X 1/2 | $2.30 Part Advantage |
| 17 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
