Model
IKEA IUD4000RQ3
Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IUD4000RQ3Undercounter Dishwasher
7 diagrams151 parts

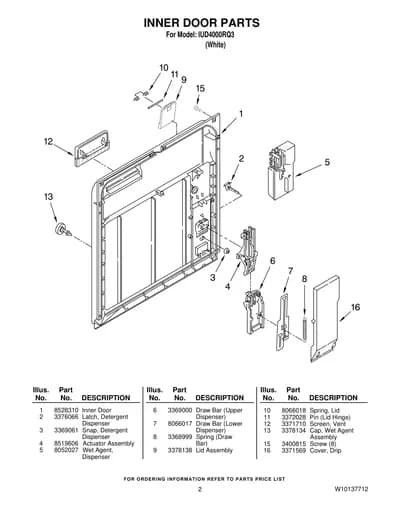

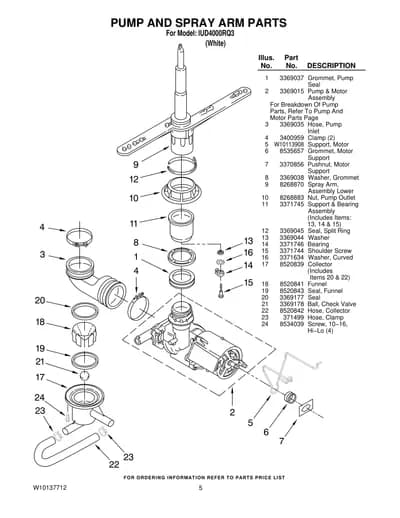

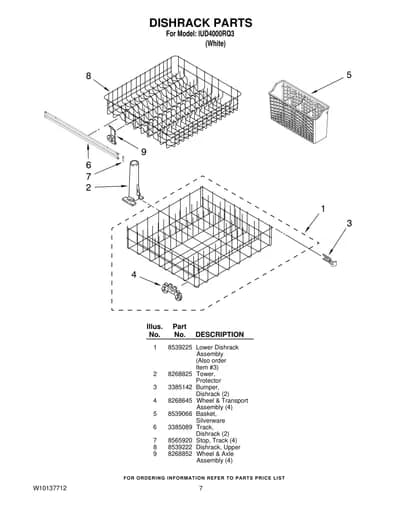

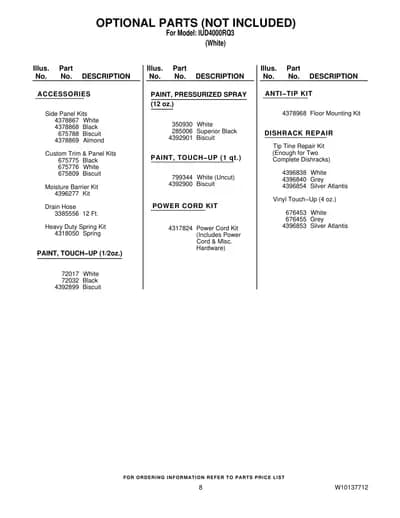

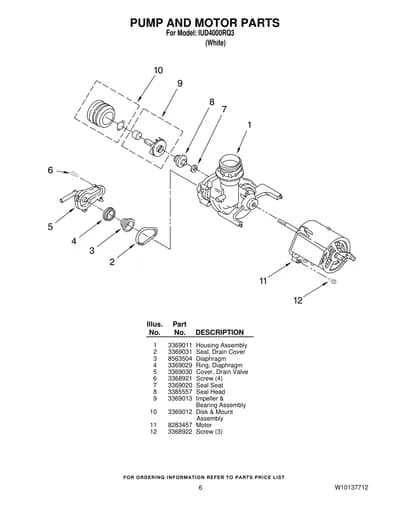

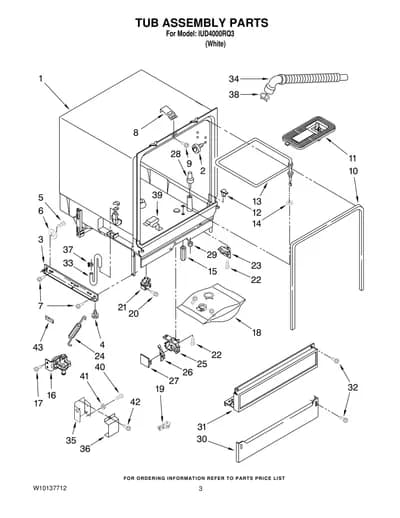

Parts Sections (7)
Diagram

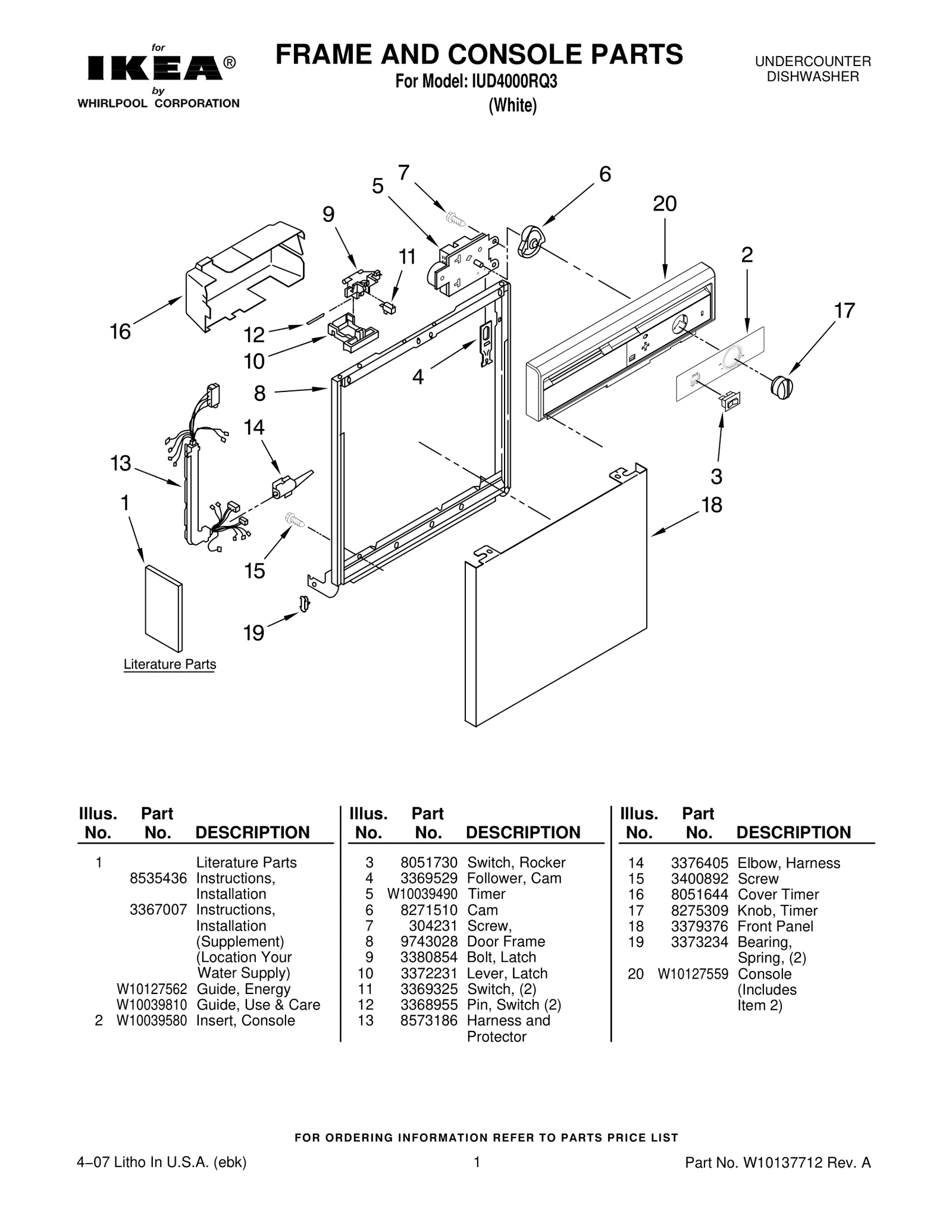

FRAME AND CONSOLE PARTS
Parts in FRAME AND CONSOLE PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8535436 Instructions, Installation | - |
| 1 | – | 3367007 Instructions, Installation (Location Your Water Supply) | - |
| 1 | – | W10127562 Guide, Energy | - |
| 1 | – | W10039810 Guide, Use & Care | - |
| 2 | – | W10039580 Insert, Console | - |
| 3 |  | Switch, Rocker | - |
| 4 |  | WP3369529replaces 3369529 Follower, Cam | $30.59 Parts Dr |

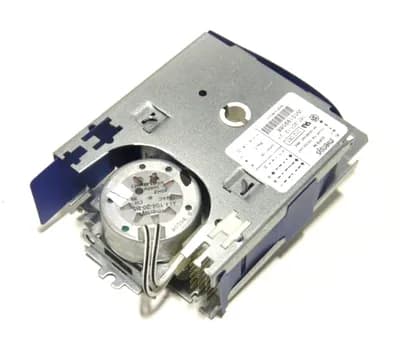

| 5 |  | WPW10199588replaces W10039490 Timer | $175.84 Parts Dr |
| 6 |  | WP8271510replaces 8271510 Cam | $1.68 RepairClinic |
| 7 |  | WP304231replaces 304231 Screw, | $5.00 RepairClinic |
| 8 |  | WP9743028replaces 9743028 Door Frame | - |
| 9 |  | WP3380854replaces 3380854 Bolt, Latch | $32.72 Part Advantage |
| 10 | | 3372231NLA Lever, Latch | Discontinued |
| 11 |  | Switch, (2) | Discontinued |
| 12 | | Pin, Switch (2) | Discontinued |
| 13 | | Harness and Protector | - |
| 14 |  | Elbow, Harness | $12.95 ApplianceParts Pro |
| 15 |  | WP3400892replaces 3400892 Screw | $3.72 Parts Dr |
| 16 | | Cover Timer | - |
| 17 |  | 8275308replaces 8275309 Knob, Timer | $43.15 Parts Dr |
| 18 | | 3379376NLA Front Panel | Discontinued |
| 19 |  | WP3373234replaces 3373234 Bearing, Spring, (2) | $6.95 ApplianceParts Pro |
| 20 | – | W10127559 Console (Includes Item 2) | - |
