Model
IKEA IUD6000RS3
Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IUD6000RS3Undercounter Dishwasher
7 diagrams161 parts

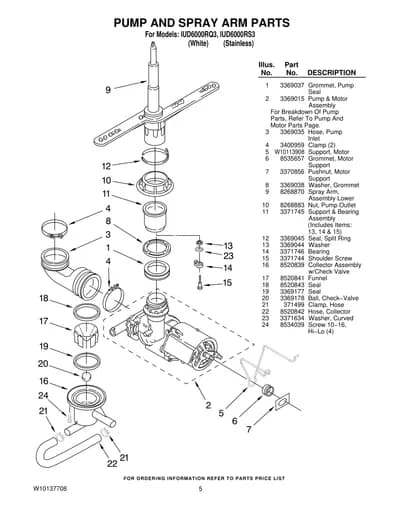

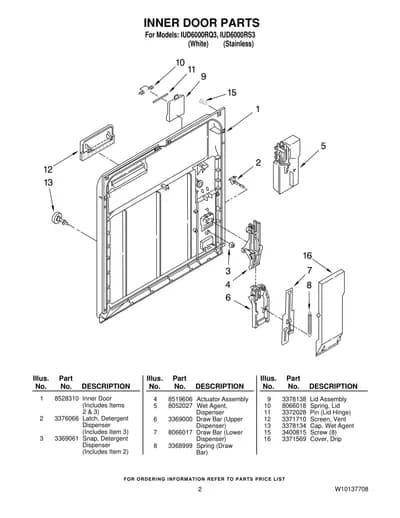

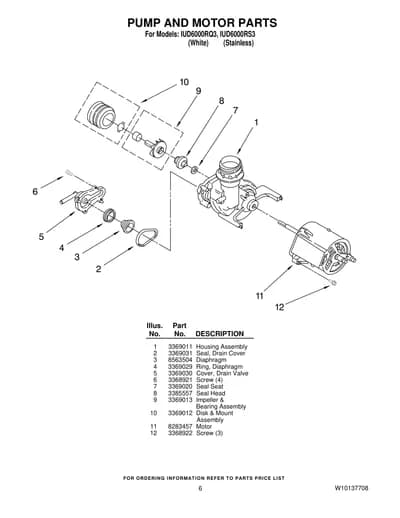

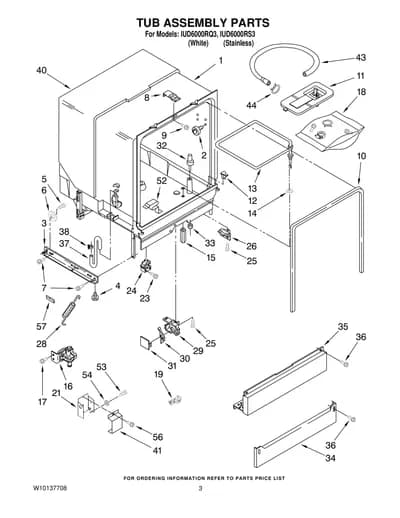

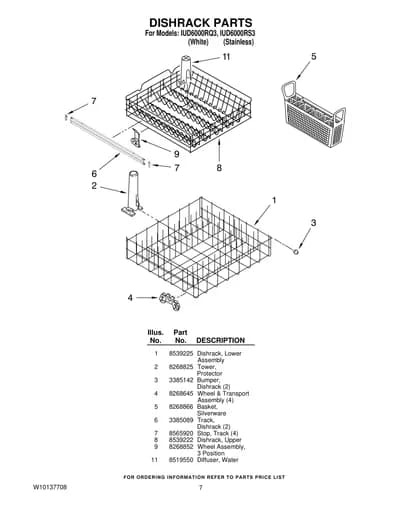

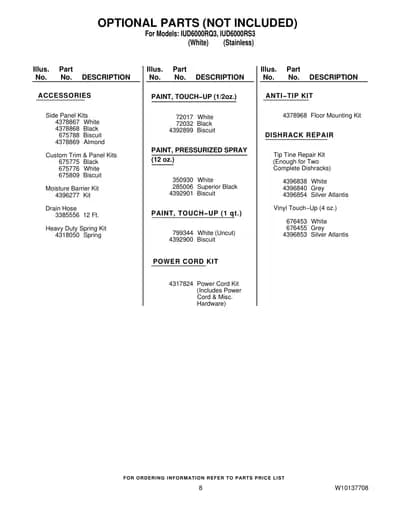

Parts Sections (7)
Diagram

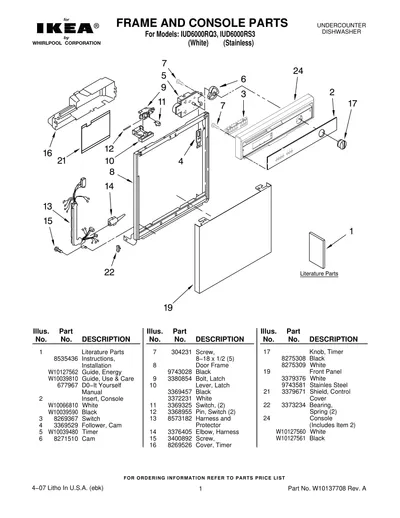

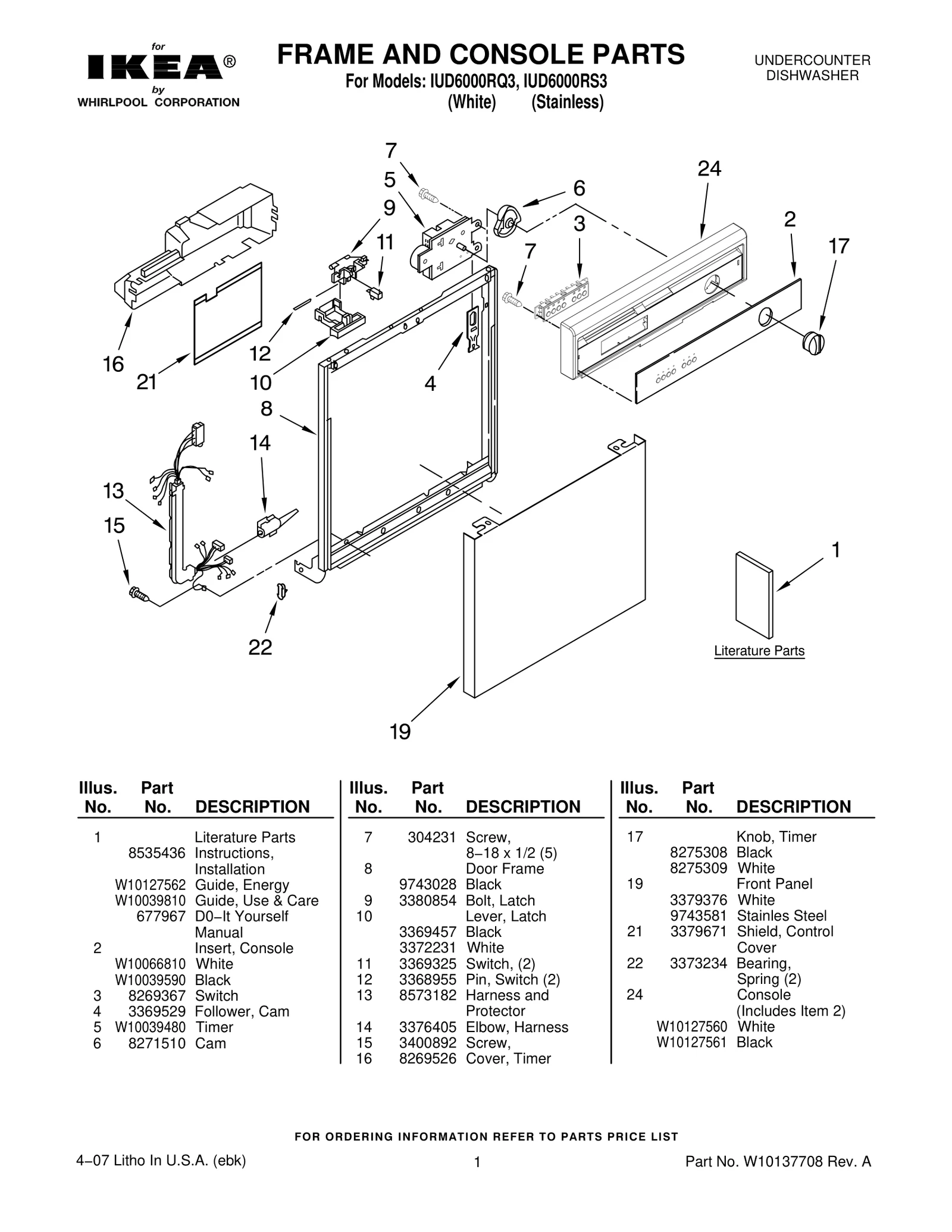

FRAME AND CONSOLE PARTS
Parts in FRAME AND CONSOLE PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8535436 Instructions, Installation | - |
| 1 | – | W10127562 Guide, Energy | - |
| 1 | – | W10039810 Guide, Use & Care | - |
| 1 |  | D0−It Yourself Manual | Discontinued |
| 2 | – | W10066810 Insert, Console — White | - |
| 2 | – | W10039590 Insert, Console — Black | - |
| 3 | – | 8269367 Switch | - |
| 4 | | WP3369529replaces 3369529 Follower, Cam | $30.59 Parts Dr |
| 5 |  | WPW10199587replaces W10039480 Timer | $167.15 Parts Dr |
| 6 |  | WP8271510replaces 8271510 Cam | $1.68 RepairClinic |
| 7 |  | WP304231replaces 304231 Screw, 8−18 x 1/2 (5) | $5.00 RepairClinic |
| 8 |  | WP9743028replaces 9743028 Door Frame — Black | - |
| 9 |  | WP3380854replaces 3380854 Bolt, Latch | $32.72 Part Advantage |
| 10 | | 3369457NLA Lever, Latch — Black | Discontinued |
| 10 | | 3372231NLA Lever, Latch — White | Discontinued |
| 11 |  | Switch, (2) | Discontinued |
| 12 | | Pin, Switch (2) | Discontinued |
| 13 | – | 8573182 Harness and Protector | - |
| 14 |  | Elbow, Harness | $12.95 ApplianceParts Pro |
| 15 |  | WP3400892replaces 3400892 Screw, | $3.72 Parts Dr |
| 16 | – | 8269526 Cover, Timer | - |
| 17 |  | Knob, Timer — Black | $43.15 Parts Dr |
| 17 | | 8275308replaces 8275309 Knob, Timer — White | $43.15 Parts Dr |
| 19 | | 3379376NLA Front Panel — White | Discontinued |
| 19 | | 9743581NLA Front Panel — Stainles Steel | Discontinued |
| 21 | | Shield, Control Cover | - |
| 22 |  | WP3373234replaces 3373234 Bearing, Spring (2) | $6.95 ApplianceParts Pro |
| 24 | – | W10127560 Console — White | - |
| 24 | – | W10127561 Console — Black | - |
