Model
IKEA IUD8000RS8
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IUD8000RS8Undercounter Dishwasher
12 diagrams151 parts
Parts Sections (12)
Diagram

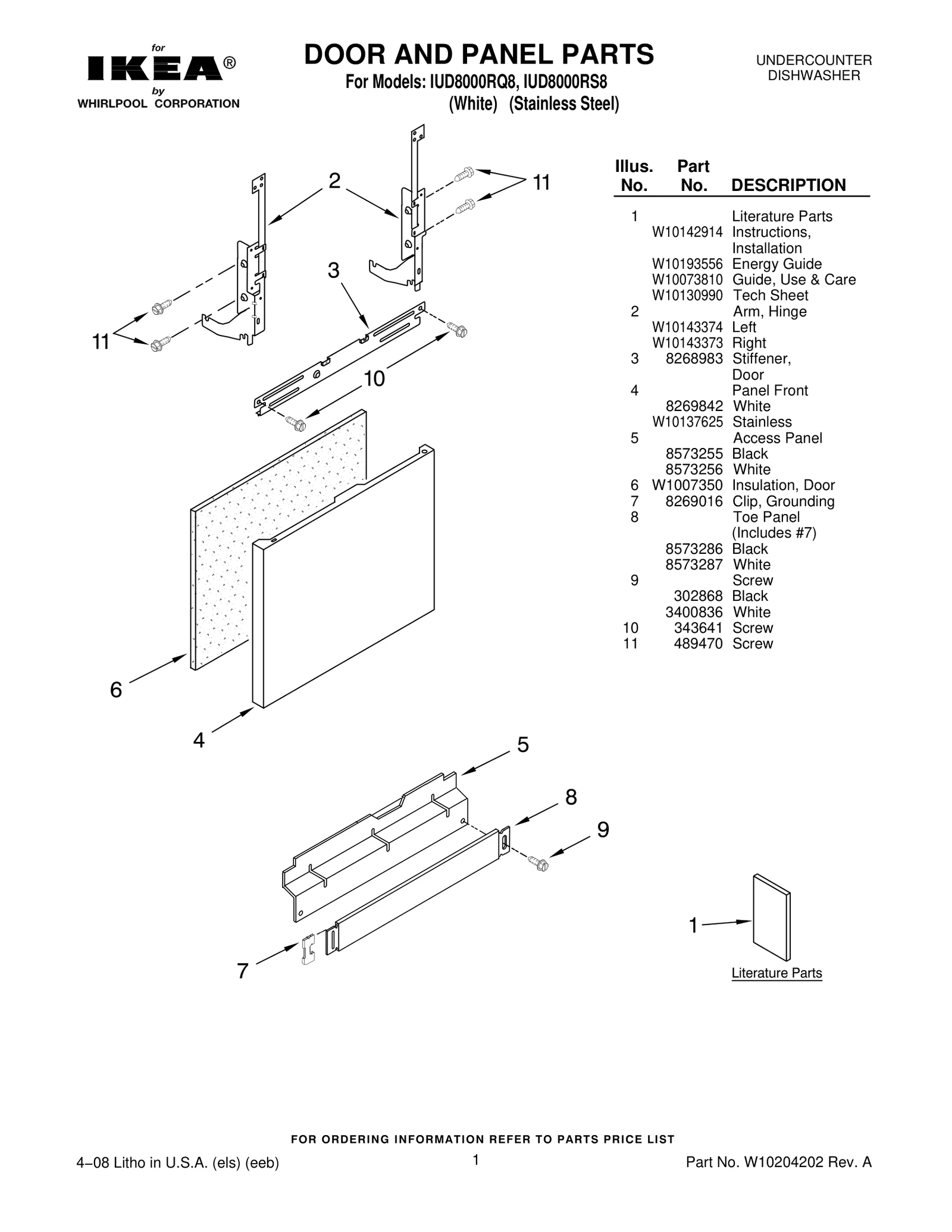

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10142914 Instructions, Installation | - |
| 1 | – | W10193556 Energy Guide | - |
| 1 | – | W10073810 Guide, Use & Care | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11613573replaces W10143374 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces W10143373 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 | | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | 8269842NLA Panel Front — White | Discontinued |
| 4 |  | W10301577replaces W10137625 Panel Front — Stainless | - |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 | – | W1007350 Insulation, Door | - |
| 7 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 8 |  | W10871196replaces 8573286 Toe Panel — Black | $66.43 Amazon |
| 8 |  | WP8573287replaces 8573287 Toe Panel — White | $74.95 ApplianceParts Pro |
| 9 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 9 |  | WPW10503549replaces 3400836 Screw — White | $2.22 Part Advantage |
| 10 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 11 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
