Model
IKEA IUD9750VS0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IUD9750VS0Undercounter Dishwasher
12 diagrams163 parts

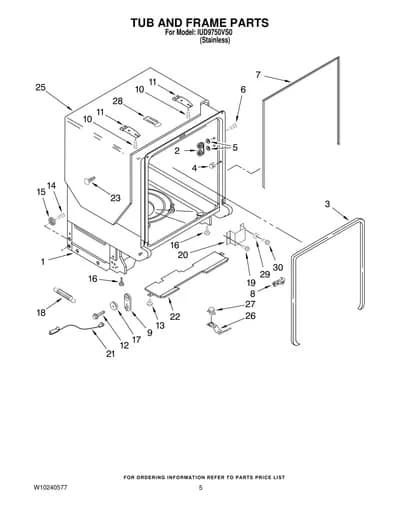

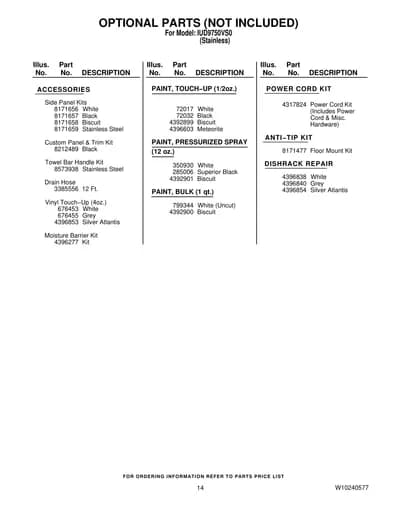

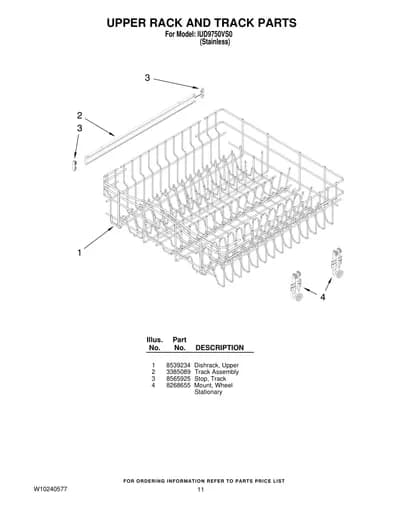

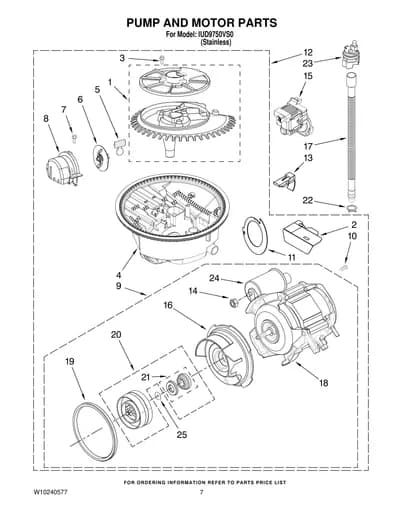

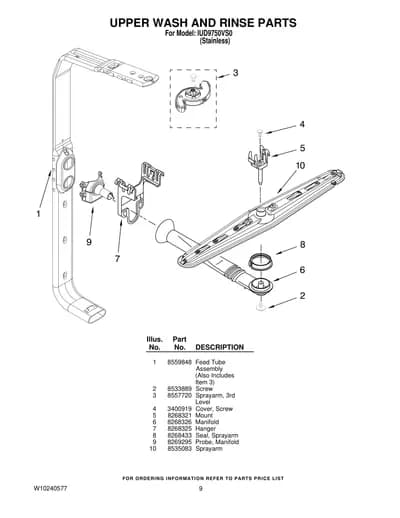

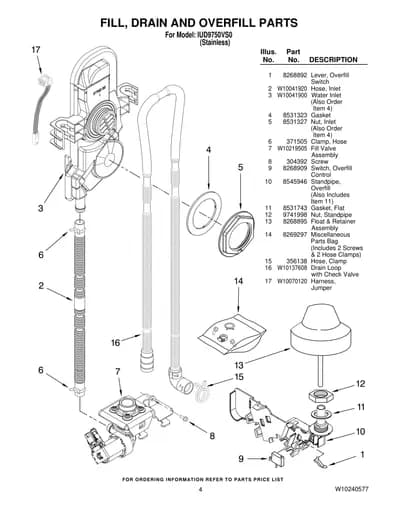

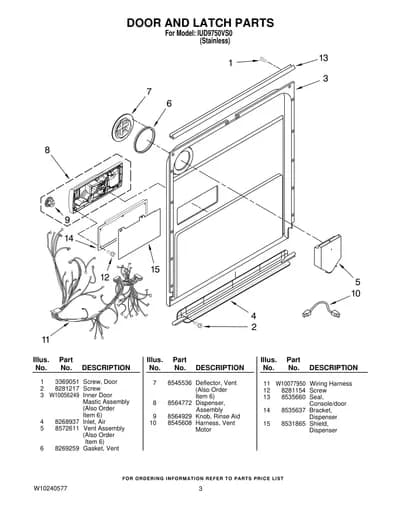

Parts Sections (12)
Diagram

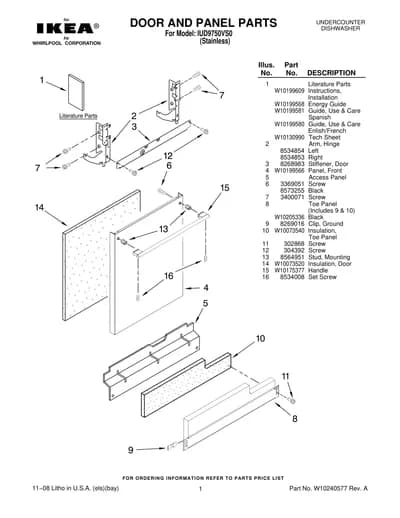

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10199609 Instructions, Installation | - |
| 1 | – | W10199568 Energy Guide | - |
| 1 | – | W10199581 Guide, Use & Care Spanish | - |
| 1 | – | W10199580 Guide, Use & Care Enlish/French | - |
| 1 |  | W10130990NLA Tech Sheet | Discontinued |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 | | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | Panel, Front | $108.74 RepairClinic |
| 5 | – | N/S Access Panel | - |
| 6 |  | WPW10348409replaces 3369051 Screw | $2.30 Part Advantage |
| 6 |  | W11763736replaces 8573255 Black | $16.47 Part Advantage |
| 7 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 8 |  | W10871196replaces W10205336 Toe Panel — Black | $66.43 Amazon |
| 9 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
| 10 |  | W10831329replaces W10073540 Insulation, Toe Panel | $15.72 Part Advantage |
| 11 |  | WP302868replaces 302868 Screw | $2.30 Part Advantage |
| 12 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 13 |  | WP8564951replaces 8564951 Stud, Mounting | $8.70 Parts Dr |
| 14 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 15 | | Handle | $149.95 ApplianceParts Pro |
| 16 |  | WP8534008replaces 8534008 Set Screw | $2.20 Part Advantage |
