Model
IKEA IVP85800
30" Electric Ceran Freestanding Range Self Clean Convection Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IVP8580030" Electric Ceran Freestanding Range Self Clean Convection Oven
6 diagrams124 parts
Parts Sections (6)
Diagram

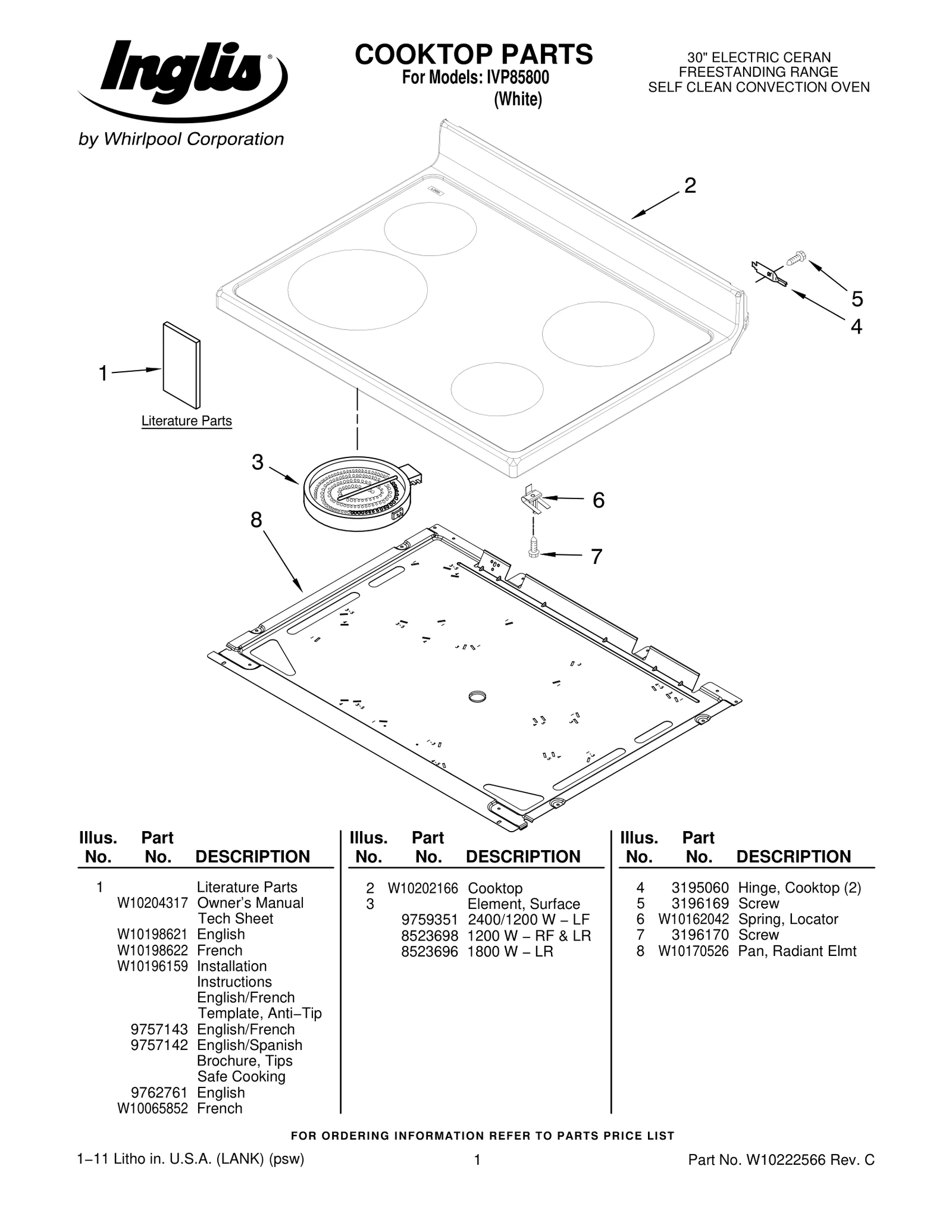

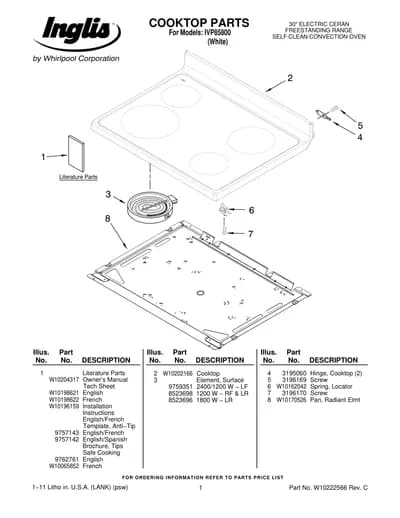

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10204317 Owner’s Manual Tech Sheet | - |
| 1 | – | W10198621 English | - |
| 1 | – | W10198622 French | - |
| 1 | – | W10196159 Installation Instructions English/French Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish Brochure, Tips Safe Cooking | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WPW10254671replaces W10202166 Cooktop | - |
| 3 |  | W10823692replaces 9759351 Element, Surface — 2400/1200 W − LF | $119.42 Parts Dr |
| 3 |  | W10823711replaces 8523698 Element, Surface — 1200 W − RF & LR | $92.55 Part Advantage |
| 3 |  | W10823698replaces 8523696 Element, Surface — 1800 W − LR | $83.15 Part Advantage |
| 4 |  | WP3195060replaces 3195060 Hinge, Cooktop (2) | $3.87 Part Advantage |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 8 |  | Pan, Radiant Elmt ® 1−11 Litho in. U.S.A. (LANK) (psw) 30" ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN CONVECTION OVEN | - |
