Model
Maytag JBR2088HES13
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
JBR2088HES13Refrigerator
9 diagrams256 parts

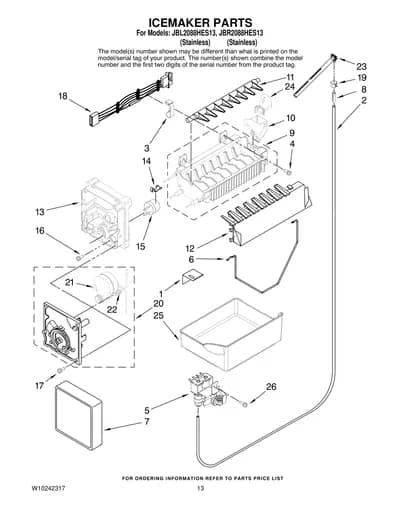

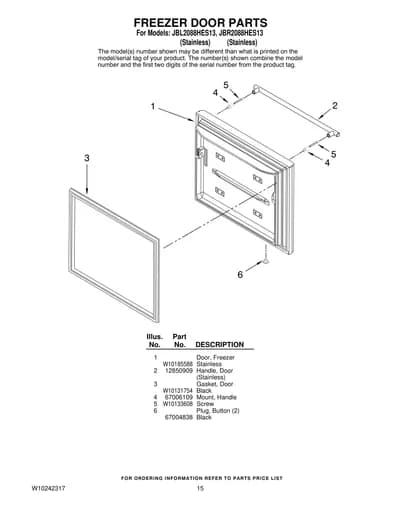

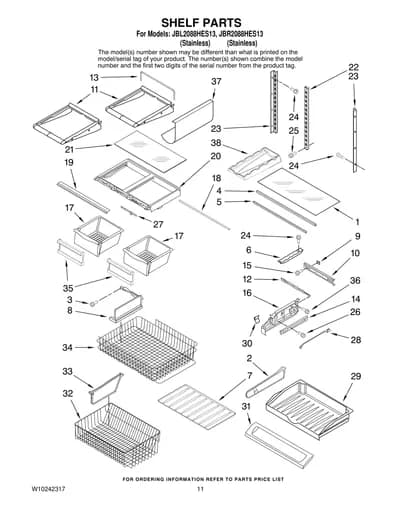

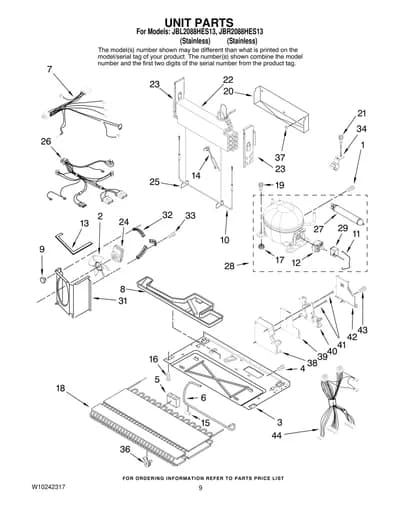

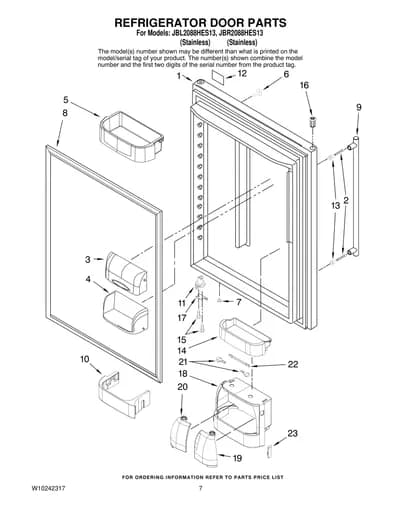

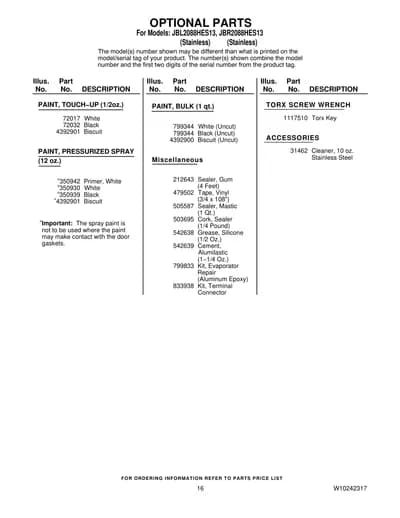

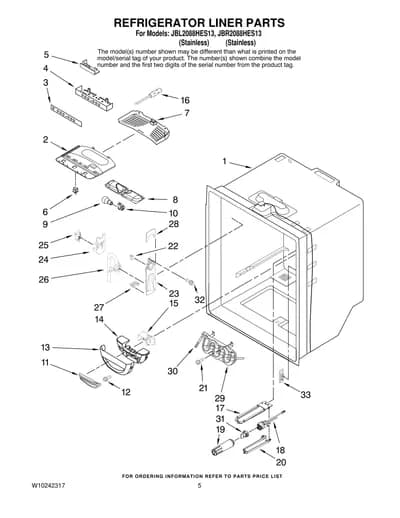

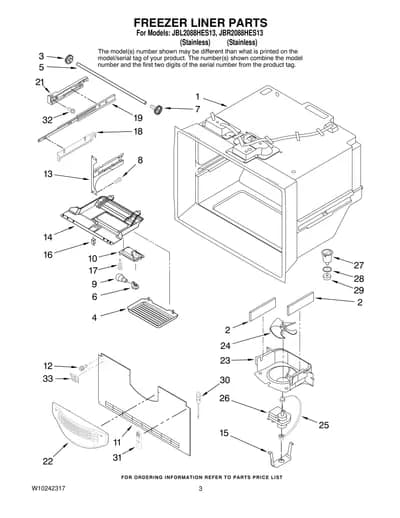

Parts Sections (9)
Diagram

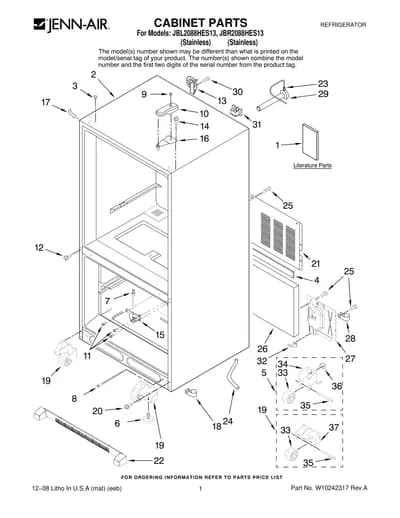

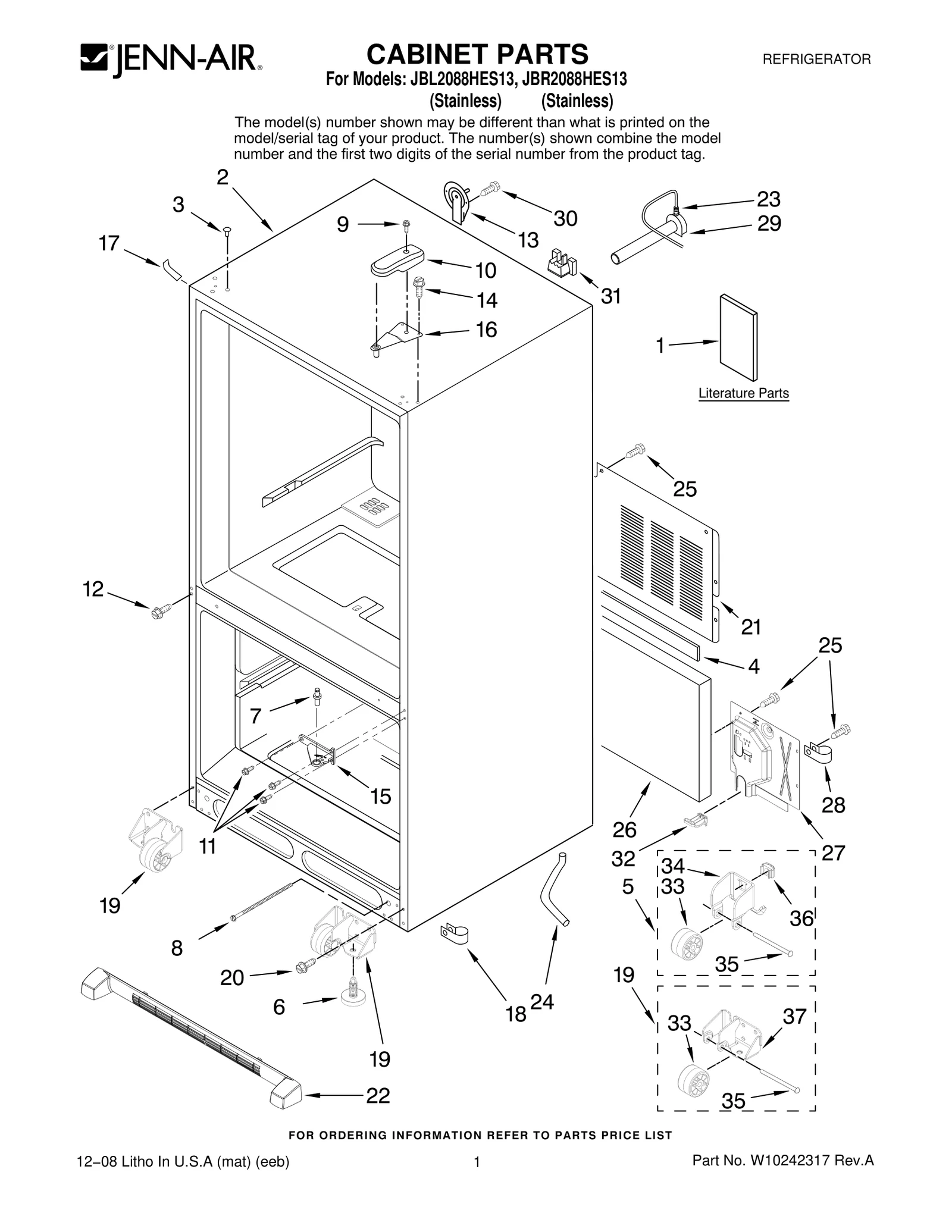

CABINET PARTS
Parts in CABINET PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137647 Use & Care Guide | - |
| 1 | – | 67005645 Energy Guide | - |
| 1 | – | 67006616 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP12246608replaces M0310731 Plug, Button (3) — Black | $3.38 Part Advantage |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 67006118 Roller Assy. (2) | - |
| 6 |  | WPW10141622replaces W10141622 Foot, Brake | $3.55 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | Bolt, Adjusting | - |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Cover, Hinge — Black | - |
| 11 |  | WP67006380replaces 67006380 Screw | $21.46 ApplianceParts Pro |
| 12 |  | 67006425replaces 67006400 Screw | $2.30 Part Advantage |
| 13 |  | Cover, Water Line | - |
| 14 |  | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 |  | WP12607104EDreplaces 67007043 Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | WP12566606EDreplaces 12566604ED Hinge, Top | $18.97 Parts Dr |
| 17 |  | Cover, Corner — Black | - |
| 18 | | Clip, Drain | $6.95 ApplianceParts Pro |
| 19 |  | WPW10515762replaces W10130459 Roller Assembly — Right | $36.26 Part Advantage |
| 19 |  | WPW10515763replaces W10130460 Roller Assembly — Left | $36.59 Part Advantage |
| 20 |  | Screw (8) | $3.74 Parts Dr |
| 21 |  | Cover, Unit | - |
| 22 |  | Grille, Toe — Black | Discontinued |
| 23 |  | WPM0114003replaces M0114003 Clip, Speed | $7.95 ApplianceParts Pro |
| 24 | | 67001066NLA Tube, Drain | Discontinued |
| 25 | | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | – | 12751506ED Cover, Water Valve | - |
| 28 |  | W10833902replaces M0108105 Clamp, Tube | $2.97 RepairClinic |
| 29 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 30 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
| 31 |  | WP12777701replaces 67004092 Block, Filter (2) | - |
| 32 | | Sweep, Dual Tube | - |
| 33 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
| 34 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
| 35 | – | M1205302 Rivet | - |
| 36 |  | Nut, Speed | $19.88 RepairClinic |
| 37 | – | W10137532 Bracket, Roller — Left | - |
| 37 | – | W10137533 Bracket, Roller — Right | - |
