Model
Maytag JCD2595WEK00
Refrigerator
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
JCD2595WEK00Refrigerator
13 diagrams323 parts

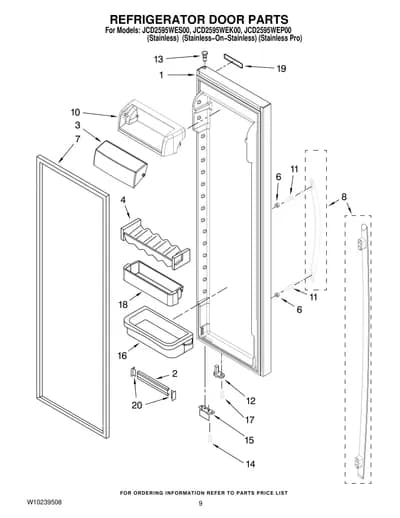

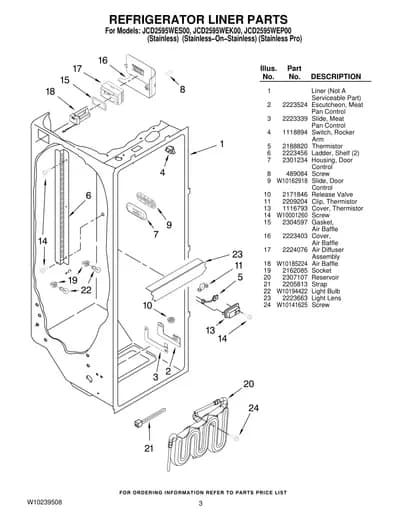

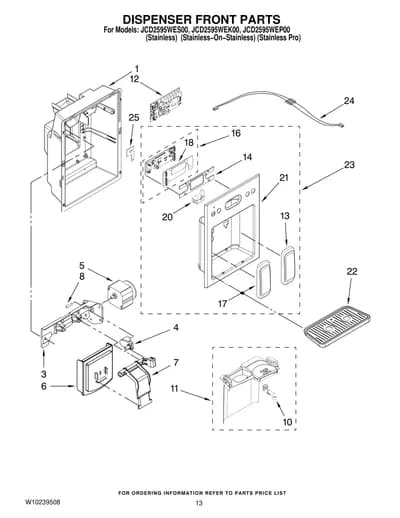

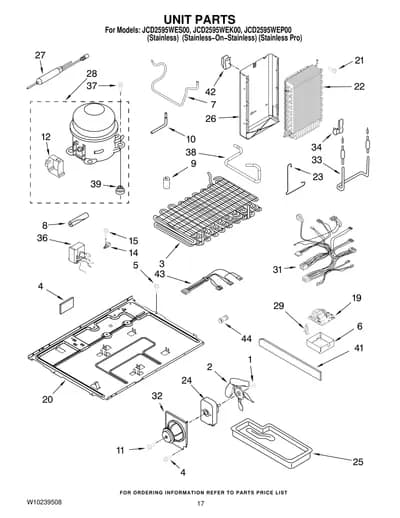

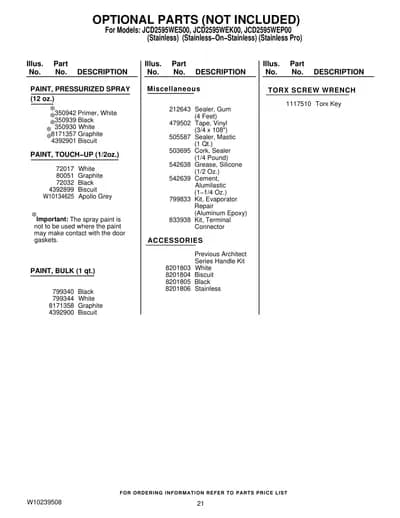

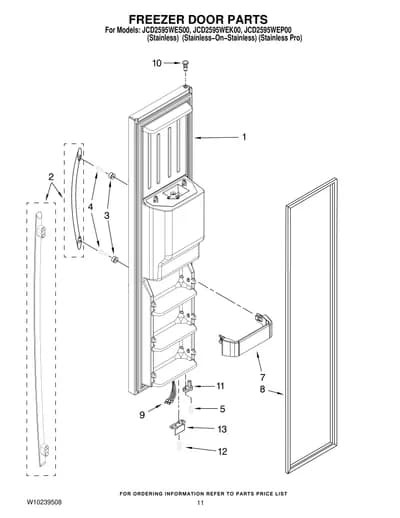

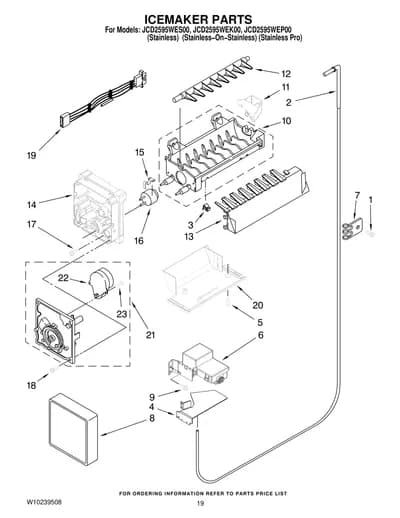

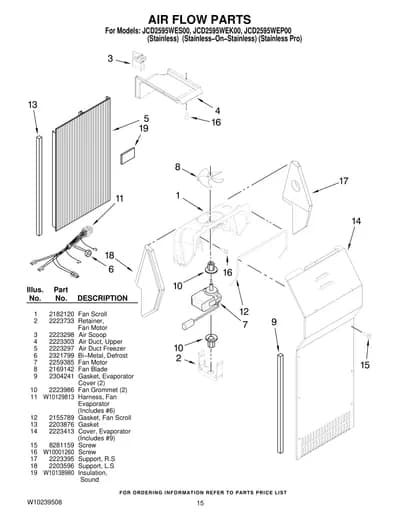

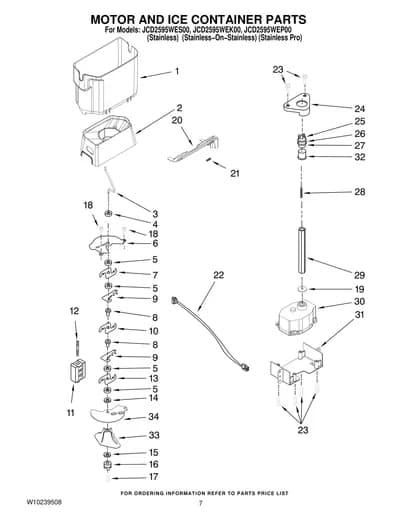

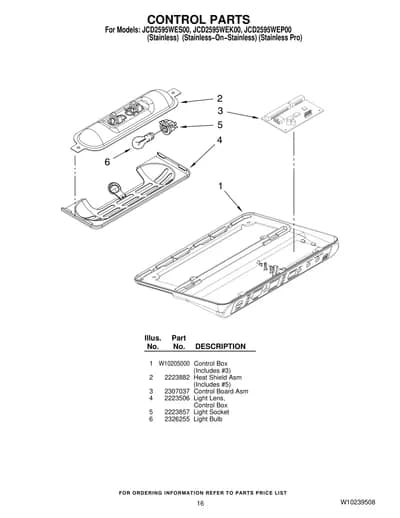

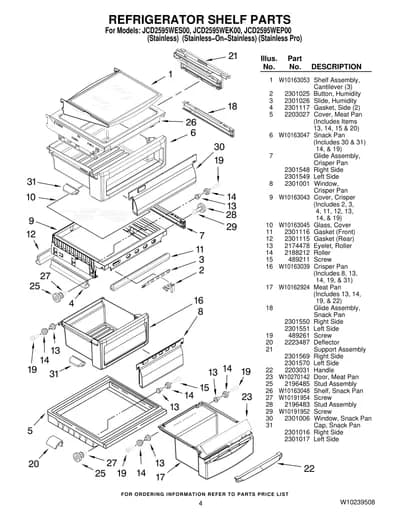

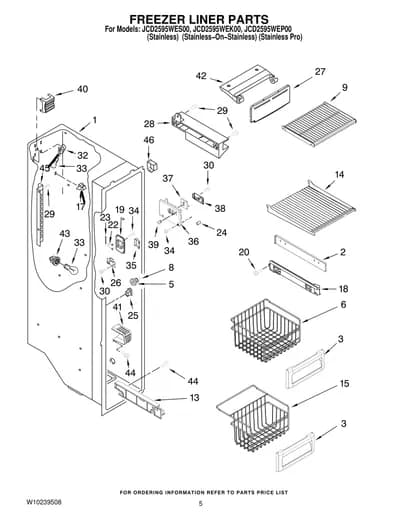

Parts Sections (13)
Diagram

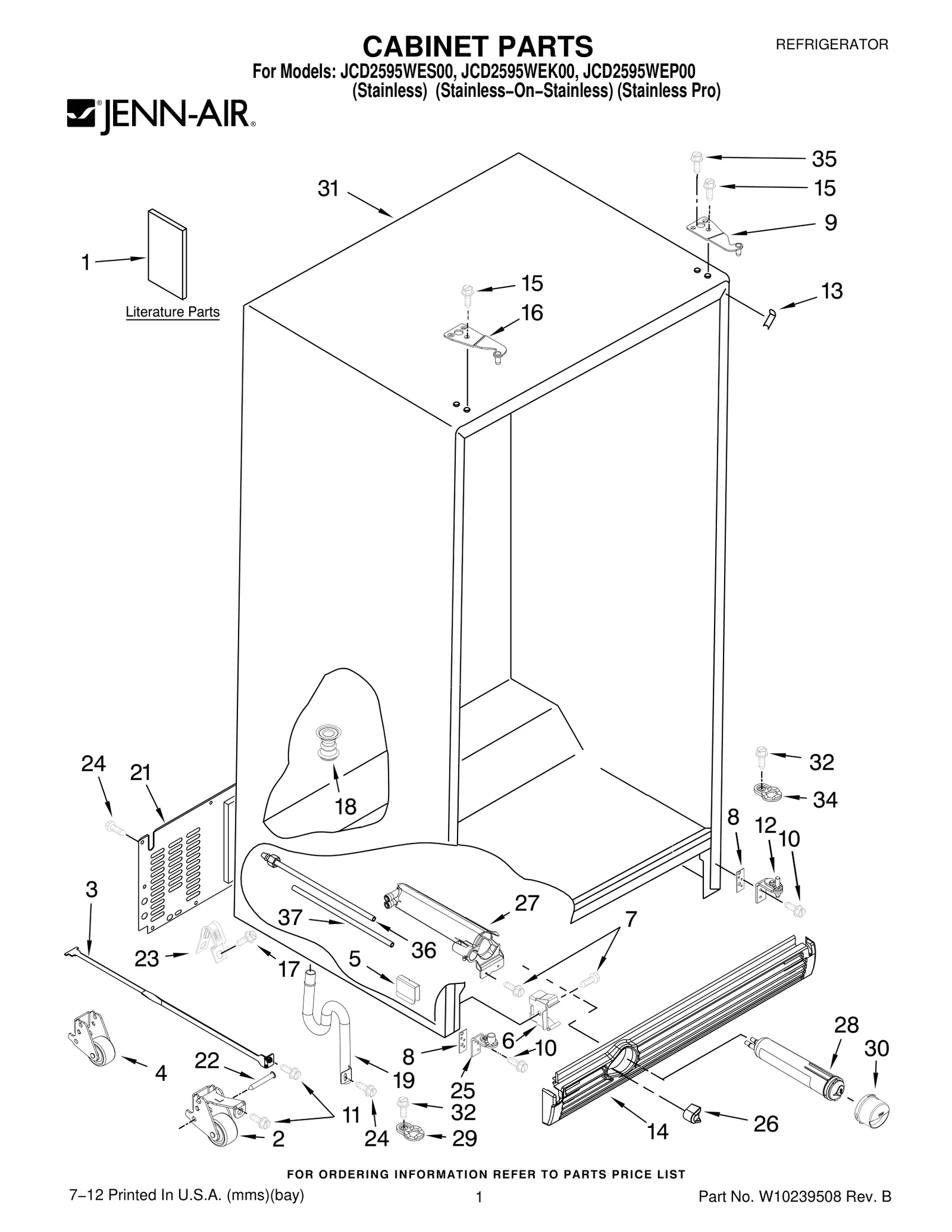

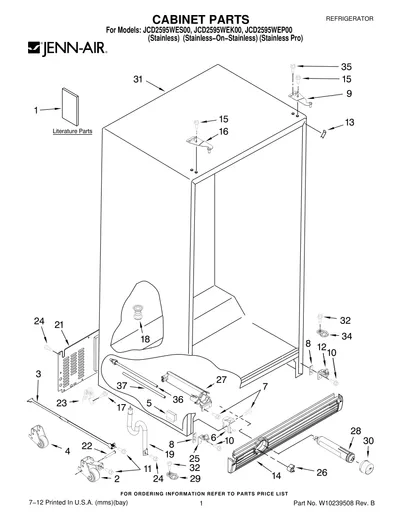

CABINET PARTS
Parts in CABINET PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10203274 Use & Care Guide | - |
| 1 | – | W10152832 Service & Wiring Sheet | - |
| 1 | – | 2318510 Installation Instructions | - |
| 1 | – | W10204993 Energy Guide | - |
| 1 |  | Modular Icemaker Service Sheet | - |
| 2 | | Front Roller Asm — Left Side | - |
| 2 | | 2306951NLA Front Roller Asm — Right Side | Discontinued |
| 3 | | 2223263NLA Strap, Roller | Discontinued |
| 4 |  | WPW10173132replaces 2306949 Roller, Rear (2) | $29.18 Parts Dr |
| 5 |  | W11545866replaces 2223388 Clip, Retainer (4) | $5.78 Parts Dr |
| 6 |  | WP2155013replaces 2155013 Clip, Grille | $3.38 Part Advantage |
| 7 |  | WP489478replaces W10001260 Screw | $5.00 RepairClinic |
| 8 |  | Shim | - |
| 9 |  | Hinge Top, RC — Apollo Gray | - |
| 10 |  | WP489497replaces 3400113 Screw | $4.19 Part Advantage |
| 11 | | W10151272replaces 3400243 Screw | - |
| 12 | | 2307179NLA Hinge Assembly, Bottom−RC | Discontinued |
| 13 | | Filler, Wrapper — Apollo Gray | - |
| 14 | | Grille — Midnight Grey | Discontinued |
| 15 | | Screw | - |
| 16 | | Hinge, Top FC — Apollo Gray | $75.95 ApplianceParts Pro |
| 17 |  | WP489464replaces 489464 Screw | $9.62 PartSelect |
| 18 |  | W11566763replaces 2304888 Drain Fitting | $19.22 Part Advantage |
| 19 | | Tube, Extension | - |
| 21 | | 2223409NLA Cover, Unit | Discontinued |
| 22 | | Pin, Roller (4) | - |
| 23 |  | Clamp, Service Cord | - |
| 24 | | Screw | $9.62 PartSelect |
| 25 | | 2307152NLA Hinge Assembly, Bottom−FC | Discontinued |
| 26 |  | Button, Water Filter — Midnight Grey | - |
| 27 |  | WPW10121140replaces W10121140 Housing, Water Filter | $102.28 Part Advantage |
| 28 |  | EDR3RXD1replaces 8212650 Water Filter | $49.90 Part Advantage |
| 29 | | Door Closer, FC | - |
| 30 |  | WP2260518MGreplaces 2260502MG Cap, Water Filter — Midnight Grey | $48.45 PartSelect |
| 31 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 32 |  | WP489483replaces W10142234 Screw | $11.77 PartSelect |
| 34 | | 2307049NLA Door Closer, RC | Discontinued |
| 35 |  | W10853301replaces 3400858 Screw | $11.71 ApplianceParts Pro |
| 36 |  | WPW10350006replaces 2224020 Tube, Filter Outlet | $44.46 Parts Dr |
| 37 |  | 8201597replaces 2319867 Tube, Filter Inlet | $24.56 Part Advantage |
