Model
Jenn-Air JDB1095AWS44
Undercounter Dishwasher
Parts Sections (14)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JDB1095AWS44Undercounter Dishwasher
14 diagrams155 parts
Parts Sections (14)
Diagram

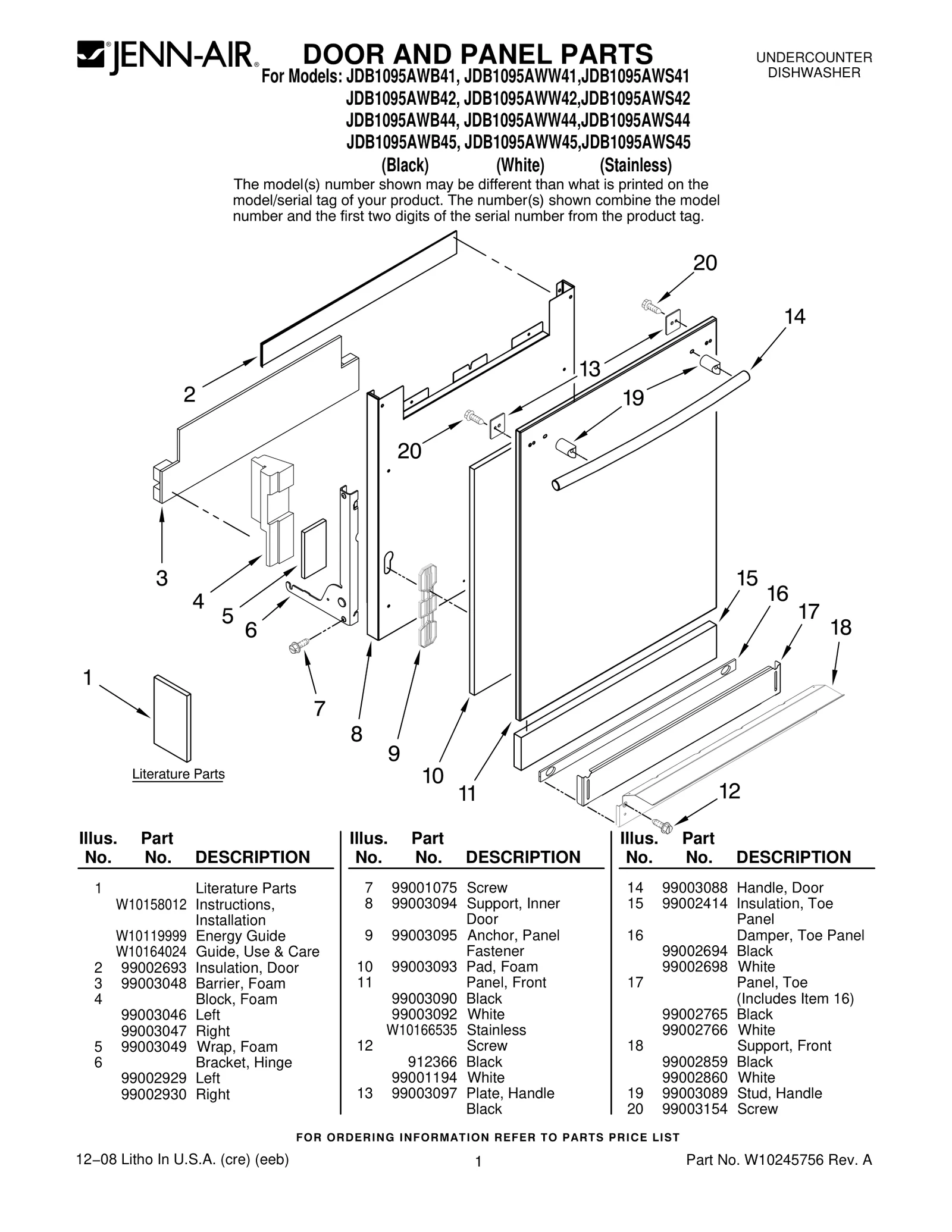

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10119999 Energy Guide | - |
| 1 | – | W10164024 Guide, Use & Care | - |
| 2 | – | 99002693 Insulation, Door | - |
| 3 | – | 99003048 Barrier, Foam | - |
| 4 | – | 99003046 Block, Foam — Left | - |
| 4 | – | 99003047 Block, Foam — Right | - |
| 5 | – | 99003049 Wrap, Foam | - |
| 6 |  | WPW10118638replaces 99002929 Bracket, Hinge — Left | - |
| 6 |  | WPW10118637replaces 99002930 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 7 | | 99001075NLA Screw | Discontinued |
| 8 | – | 99003094 Support, Inner Door | - |
| 9 | – | 99003095 Anchor, Panel Fastener | - |
| 10 | | 99003093NLA Pad, Foam | Discontinued |
| 11 | – | 99003090 Panel, Front — Black | - |
| 11 | – | 99003092 Panel, Front — White | - |
| 11 | | W10166535NLA Panel, Front — Stainless | Discontinued |
| 12 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 12 | – | 99001194 Screw — White | - |

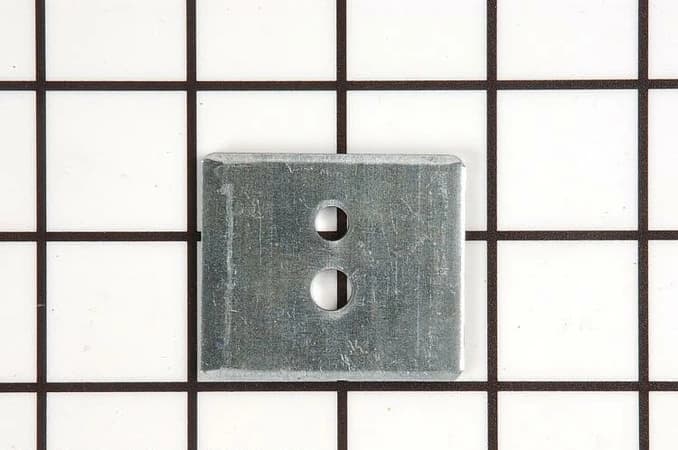

| 13 |  | W10167659replaces 99003097 Plate, Handle Black | - |
| 14 | – | 99003088 Handle, Door | - |
| 15 |  | WP6-920587replaces 99002414 Insulation, Toe Panel | $4.73 ApplianceParts Pro |
| 16 | | 99002694NLA Damper, Toe Panel — Black | Discontinued |
| 16 | – | 99002698 Damper, Toe Panel — White | - |
| 17 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 17 | – | 99002766 Panel, Toe — White | - |
| 18 | – | 99002859 Support, Front — Black | - |
| 18 | – | 99002860 Support, Front — White | - |
| 19 | | Stud, Handle | - |
| 20 | – | 99003154 Screw | - |
