Model
Jenn-Air JDR8880RDB1
30" Free Standing Range With Dual Fuel Convection
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JDR8880RDB130" Free Standing Range With Dual Fuel Convection
7 diagrams32 parts
Parts Sections (7)
Diagram

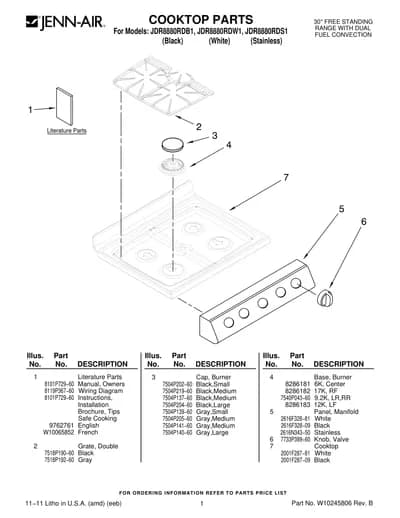

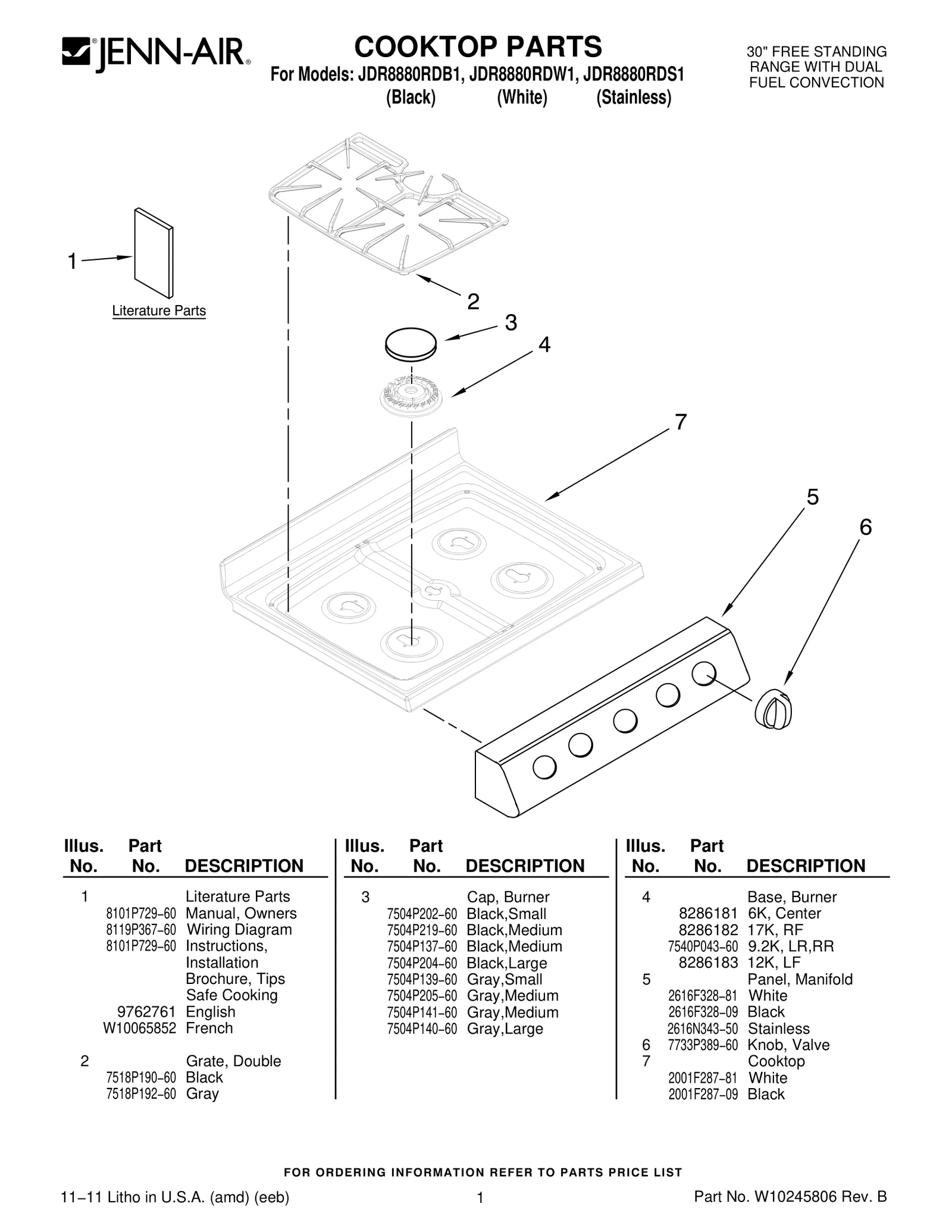

COOKTOP PARTS
Parts in COOKTOP PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762761 8101P729−60 Manual, Owners 8119P367−60 Wiring Diagram 8101P729−60 Instructions, Installation Brochure, Tips Safe Cooking — English | - |
| 1 | – | W10065852 8101P729−60 Manual, Owners 8119P367−60 Wiring Diagram 8101P729−60 Instructions, Installation Brochure, Tips Safe Cooking — French | - |
| 2 | – | N/S Grate, Double 7518P190−60 Black 7518P192−60 Gray | - |
| 3 | – | N/S Cap, Burner 7504P202−60 Black,Small 7504P219−60 Black,Medium 7504P137−60 Black,Medium 7504P204−60 Black,Large 7504P139−60 Gray,Small 7504P205−60 Gray,Medium 7504P141−60 Gray,Medium 7504P140−60 Gray,Large | - |
| 4 |  | WPW10406243replaces 8286181 6K, Center | $12.98 Part Advantage |
| 4 |  | WPW10406797replaces 8286182 17K, RF 7540P043−60 9.2K, LR,RR | $33.54 Part Advantage |
| 4 |  | WPW10406878replaces 8286183 12K, LF | $38.07 Part Advantage |
| 5 | – | N/S Panel, Manifold 2616F328−81 White 2616F328−09 Black 2616N343−50 Stainless | - |
| 6 | – | N/S 7733P389−60 Knob, Valve | - |
| 7 | – | N/S Cooktop 2001F287−81 White 2001F287−09 Black | - |
