Model
Jenn-Air JDR8880RDS10
30" Free Standing Dual Fuel Convection Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JDR8880RDS1030" Free Standing Dual Fuel Convection Range
6 diagrams102 parts
Parts Sections (6)
Diagram

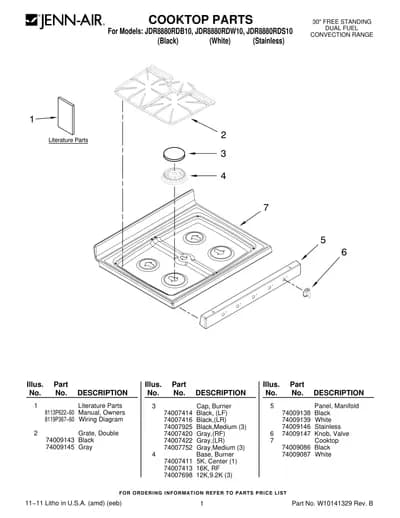

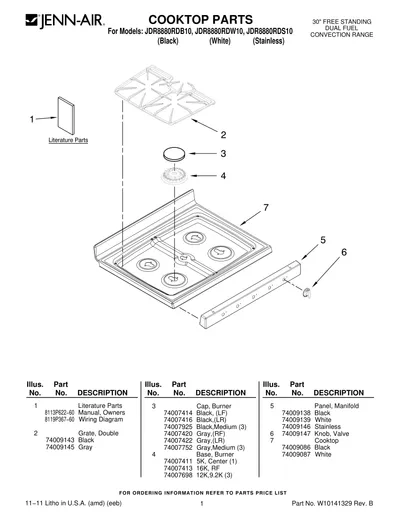

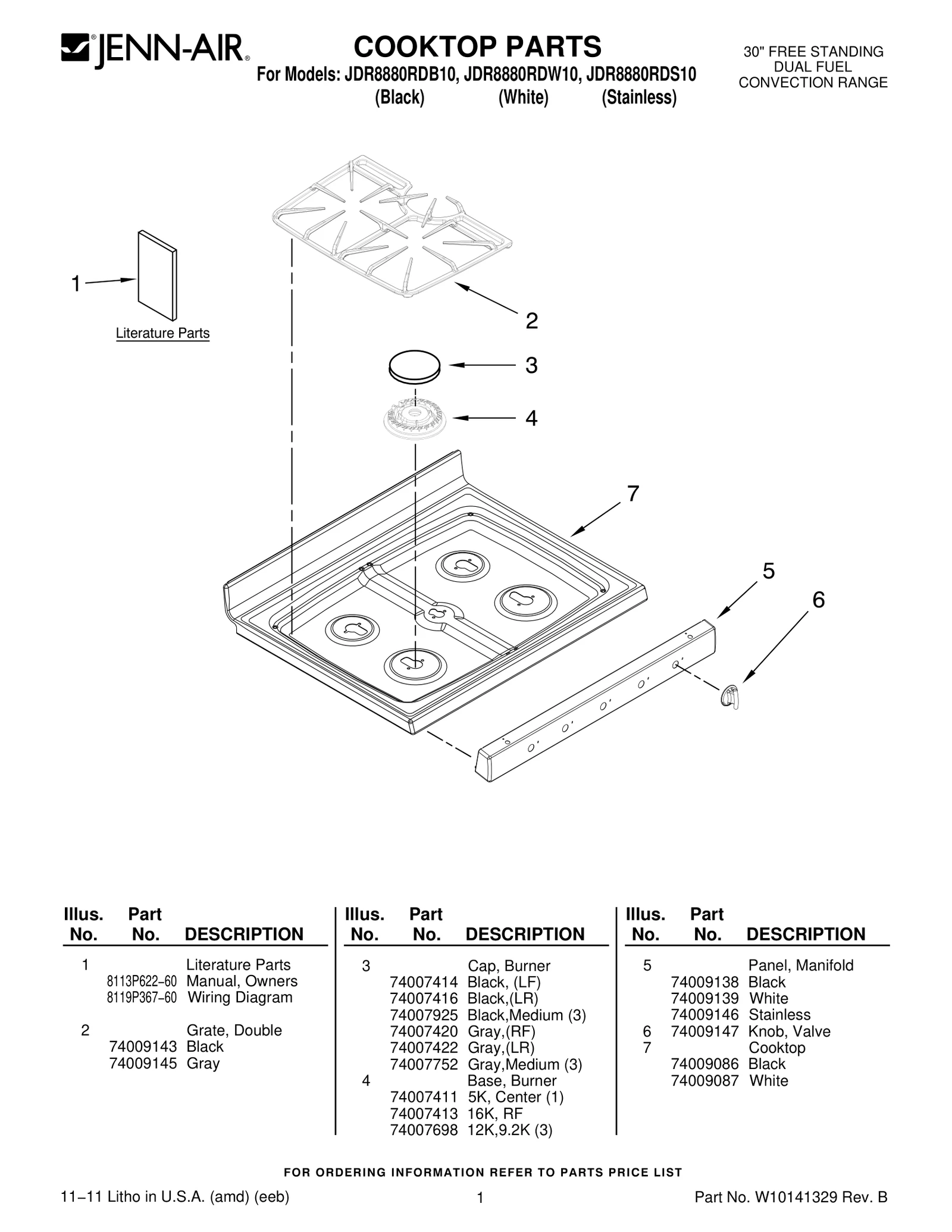

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/S 8113P622−60 Manual, Owners 8119P367−60 Wiring Diagram | - |
| 2 | – | 74009143 Grate, Double — Black | - |
| 2 | – | 74009145 Grate, Double — Gray | - |
| 3 |  | WPW10154101replaces 74007414 Black, (LF) | $80.95 ApplianceParts Pro |
| 3 |  | WP3191898replaces 74007416 Black,(LR) | $61.55 PartSelect |
| 3 |  | WP74007925replaces 74007925 Black,Medium (3) | $74.95 ApplianceParts Pro |
| 3 |  | WP74007420replaces 74007420 Gray,(RF) | $68.16 Part Advantage |
| 3 | – | 74007422 Gray,(LR) | - |
| 3 |  | WP74007752replaces 74007752 Gray,Medium (3) | $52.43 Part Advantage |
| 4 |  | WPW10406243replaces 74007411 5K, Center (1) | $12.98 Part Advantage |
| 4 |  | WPW10406878replaces 74007413 16K, RF | $38.07 Part Advantage |
| 4 |  | WPW10406797replaces 74007698 12K,9.2K (3) | $33.54 Part Advantage |
| 5 | – | 74009138 Panel, Manifold — Black | - |
| 5 |  | Panel, Manifold — White | - |
| 5 | | Panel, Manifold — Stainless | - |
| 6 |  | WP74009147replaces 74009147 Knob, Valve | $20.79 Part Advantage |
| 7 | – | 74009086 Cooktop — Black | - |
| 7 | – | 74009087 Cooktop — White | - |
