Model
Jenn-Air JFC2070KRS12
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JFC2070KRS12Refrigerator
9 diagrams234 parts
Parts Sections (9)

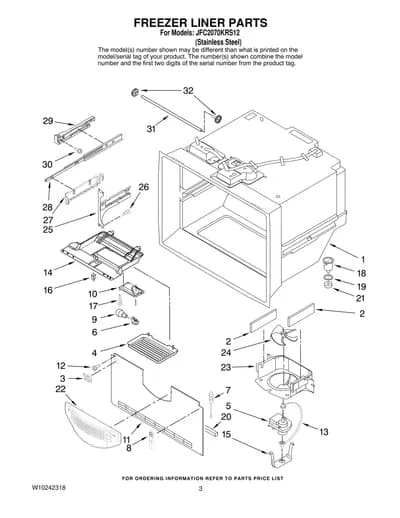

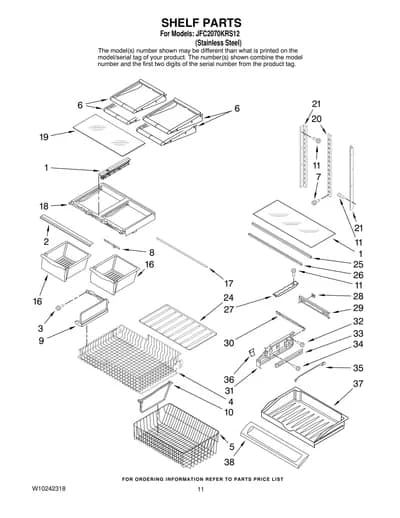

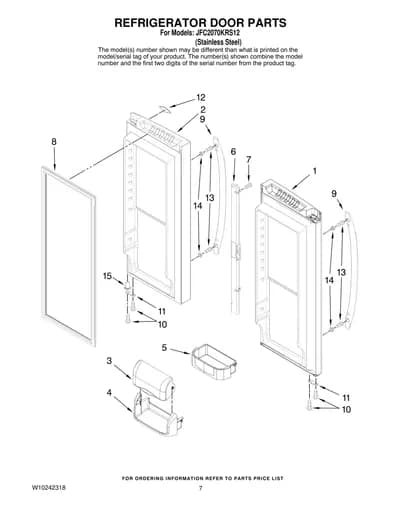

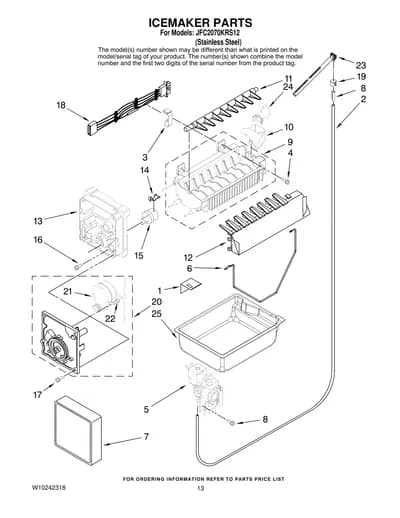

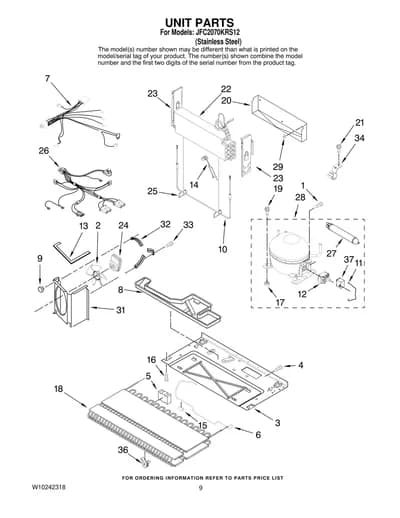

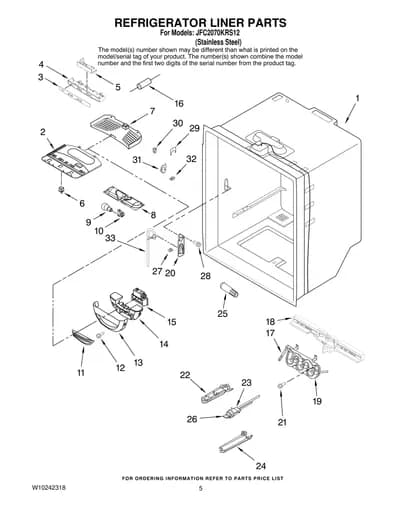

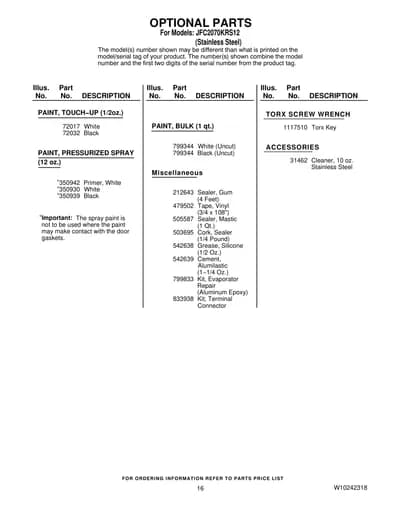

Diagram

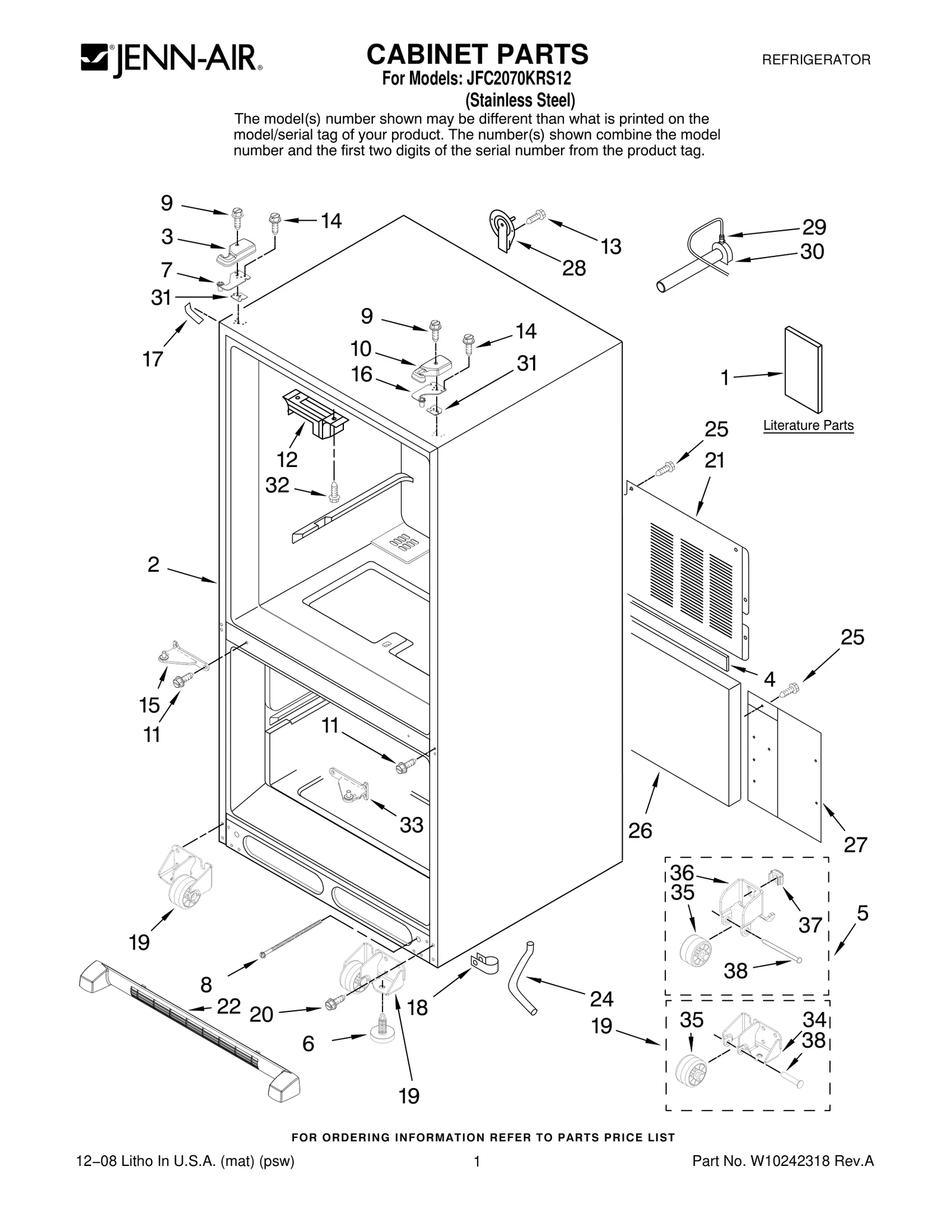

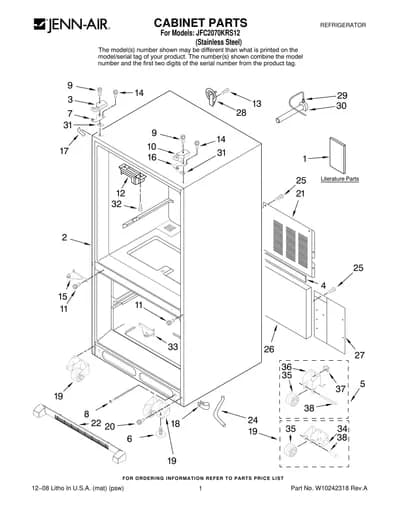

CABINET PARTS
Parts in CABINET PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137647 Use & Care Guide | - |
| 1 | – | 67007082 Energy Guide | - |
| 1 | – | 12827952 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | 12684201BNLA Cover, Left Hinge — Black | Discontinued |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 67006118 Roller Assy. (2) | - |
| 6 |  | WPW10141622replaces W10141622 Foot, Brake | $3.55 Part Advantage |
| 7 |  | WP12566607EDreplaces 12566605ED Hinge, Left Top | $51.61 PartSelect |
| 8 |  | Bolt, Adjusting | - |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 | | Cover, Right Hinge — Black | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 12 |  | WP67003405replaces 67003405 Block, Pivot | $3.55 Part Advantage |
| 13 | | 12992301replaces 67006433 Screw | - |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 |  | Hinge, Center (LT) — Black | - |
| 16 |  | WP12566606EDreplaces 12566604ED Hinge, Right Top | $18.97 Parts Dr |
| 17 |  | Cover, Corner — Black | - |
| 18 | | Clip, Drain | $6.95 ApplianceParts Pro |
| 19 |  | WPW10515762replaces W10130459 Roller Assembly — Left | $36.26 Part Advantage |
| 19 |  | WPW10515763replaces W10130460 Roller Assembly — Right | $36.59 Part Advantage |
| 20 |  | Screw (4) | $3.74 Parts Dr |
| 21 |  | Cover, Unit | - |
| 22 |  | Grille, Toe — Black | Discontinued |
| 24 | | 67001066NLA Tube, Drain | Discontinued |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 | | Cover, Water Line | - |
| 29 |  | WPM0114003replaces M0114003 Clip | $7.95 ApplianceParts Pro |
| 30 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 31 | – | 12579702 Shim, Top Hinge | - |
| 32 |  | WP7101P126-60replaces 67006669 Screw, Block | $3.66 Parts Dr |
| 33 |  | W10918164replaces 67006443 Hinge, Center (RT) — Black | $49.48 Parts Dr |
| 34 | – | W10137532 Bracket, Roller — Left | - |
| 34 | – | W10137533 Bracket, Roller — Right | - |
| 35 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
| 36 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
| 37 |  | Nut, Speed | $19.88 RepairClinic |
| 38 | – | M1205302 Pin | - |
