Model
Jenn-Air JFC2089HPR11
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JFC2089HPR11Refrigerator
9 diagrams254 parts

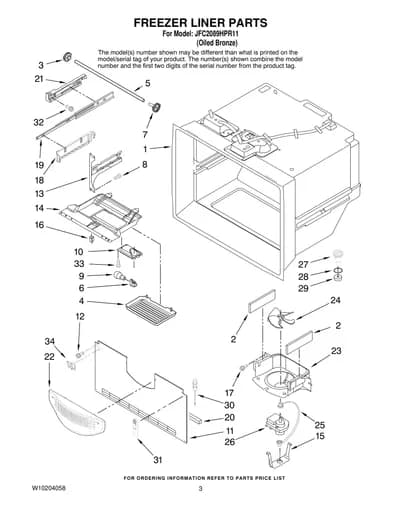

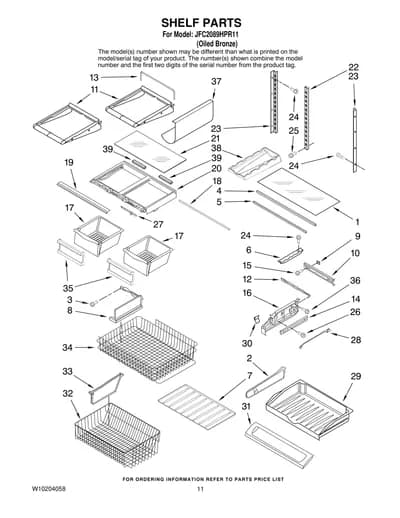

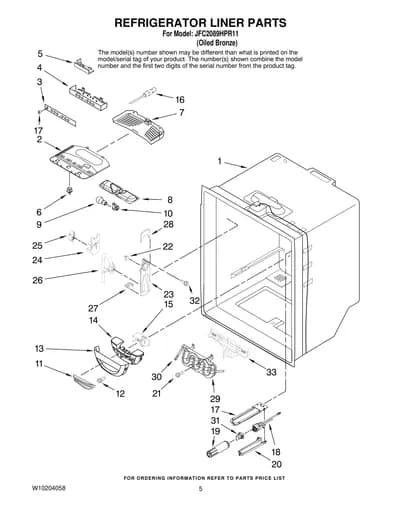

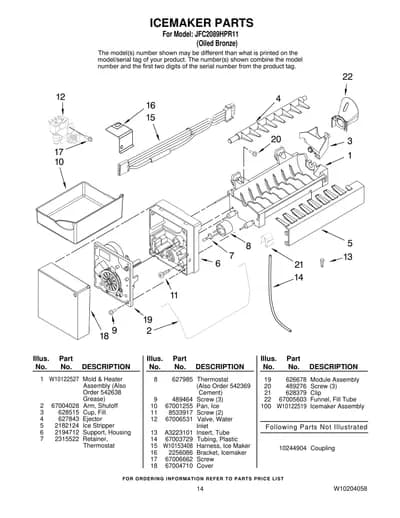

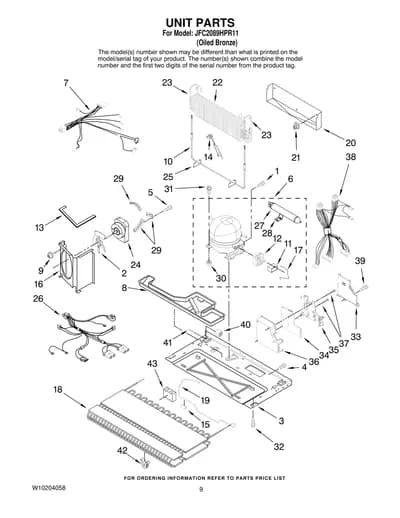

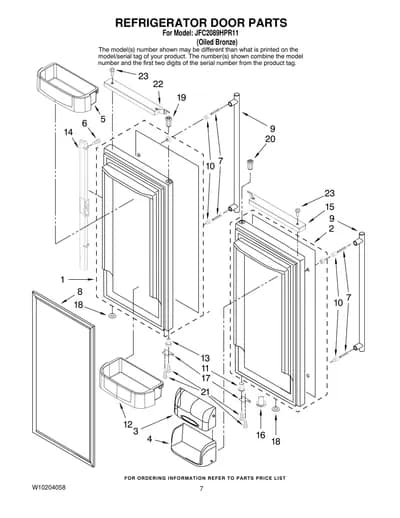

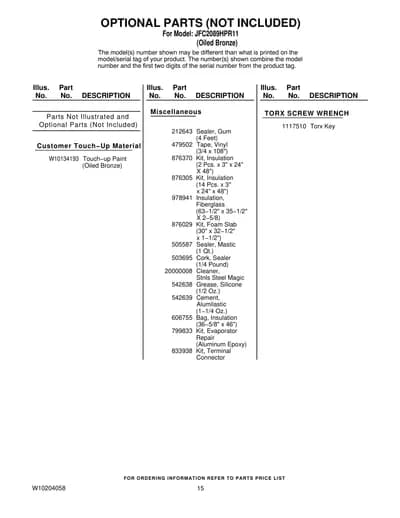

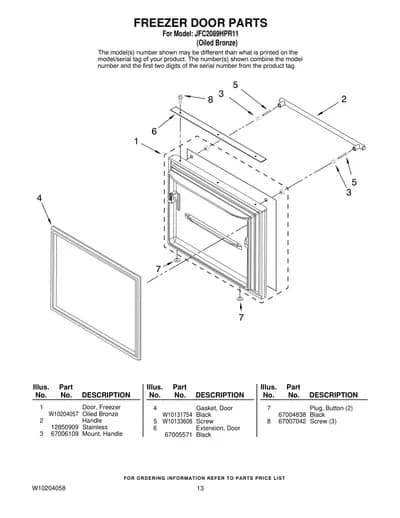

Parts Sections (9)
Diagram

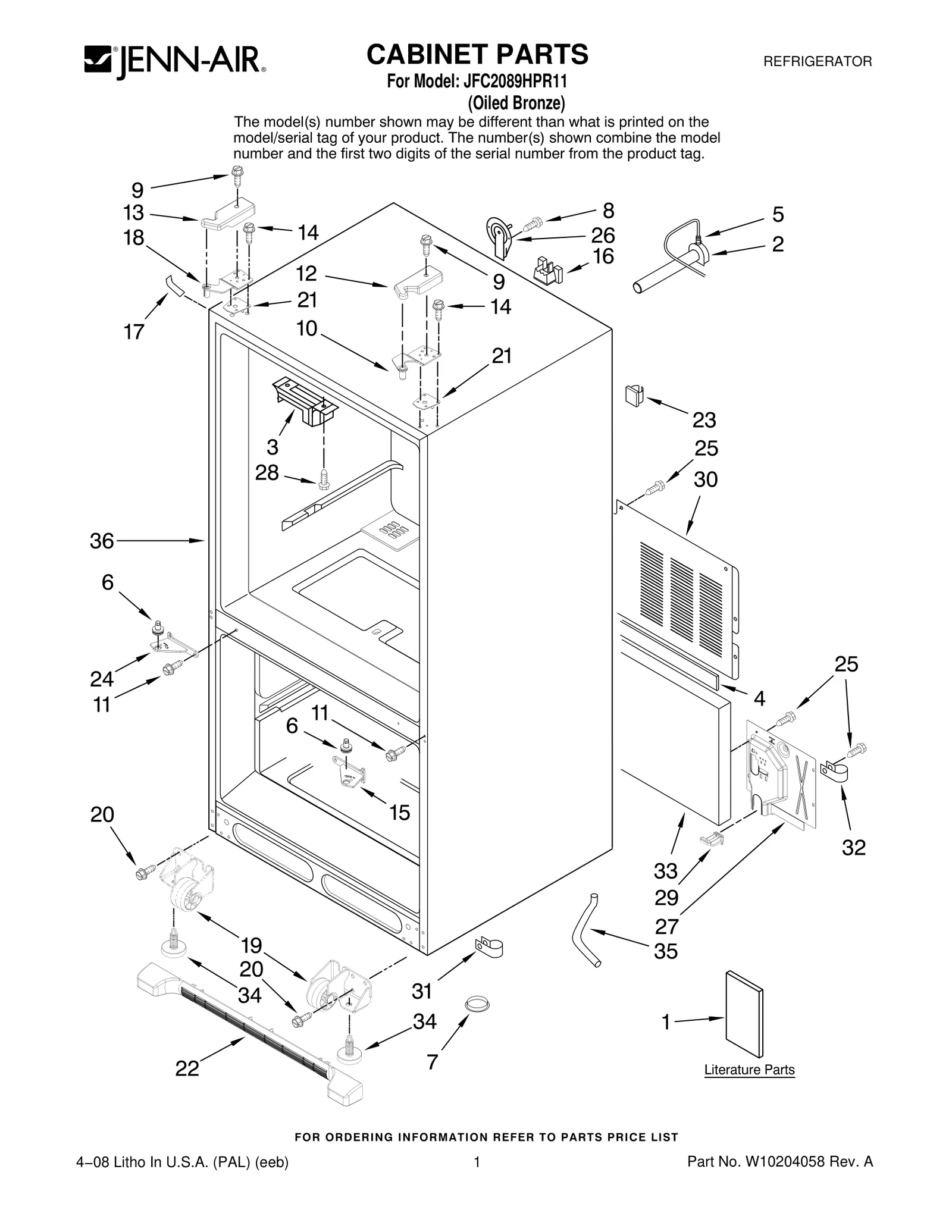

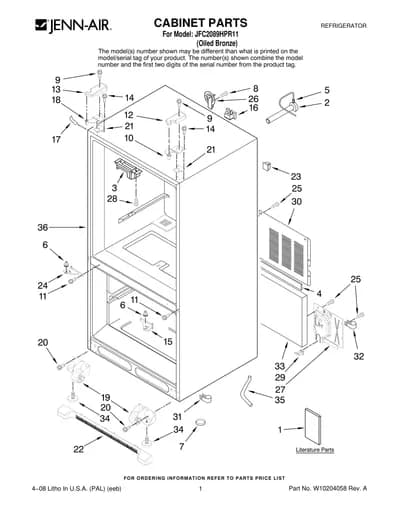

CABINET PARTS
Parts in CABINET PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 67006616 Tech Sheet | - |
| 1 | – | W10137647 Owners Manual | - |
| 1 | – | 67005575 Tag, Energy | - |
| 2 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 3 |  | WP67003405replaces 67003405 Block, Pivot | $3.55 Part Advantage |
| 4 | – | B5759649 Gasket | - |
| 5 |  | WPM0114003replaces M0114003 Clip, Speed | $7.95 ApplianceParts Pro |
| 6 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 7 |  | Plug, Button | - |
| 8 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Hinge, Top Right | - |
| 11 |  | WP67006380replaces 67006380 Screw (6) | $21.46 ApplianceParts Pro |
| 12 | – | 12629801B Cover, Right Hinge — Black | - |
| 13 | | Cover, Left Hinge — Black | - |
| 14 |  | WP489349replaces 67006303 Screw (6) | $2.30 Part Advantage |
| 15 | – | 67002960 Hinge, Center (RT) — Black | - |
| 16 |  | WP12777701replaces 67004092 Block, Fill Tube | - |
| 17 |  | Cover, Corner (2) — Black | - |
| 18 | | Hinge, Top Left | - |
| 19 |  | WPW10515762replaces W10130459 Roller Assy. — Right | $36.26 Part Advantage |
| 19 |  | WPW10515763replaces W10130460 Roller Assy. — Left | $36.59 Part Advantage |
| 20 |  | Screw (8) | $3.74 Parts Dr |
| 21 | – | 12579702 Shim, Hinge | - |
| 22 |  | Grille, Toe — Black | Discontinued |
| 23 |  | WPM0104106replaces M0104106 Clip (2) | $3.59 Parts Dr |
| 24 | – | 67002960 Hinge, Center (LT) — Black | - |
| 25 |  | Screw (10) | $2.30 Part Advantage |
| 26 | | Cover, Water Line | - |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 |  | WP7101P126-60replaces 67006669 Screw (2) | $3.66 Parts Dr |
| 29 | | Sweep, Dual Tube | - |
| 30 |  | Cover, Unit | - |
| 31 | – | W10157973 Clip, Drain Tube | - |
| 32 |  | W10833902replaces M0108105 Clamp, Tube | $2.97 RepairClinic |
| 33 |  | Insulation, Sound | $11.89 Parts Dr |
| 34 |  | WPW10141622replaces W10141622 Brake, Foot | $3.55 Part Advantage |
| 35 |  | Tube, Drain | - |
| 36 | – | N/S Cabinet (Not a Servicable Part) | - |
