Model
Jenn-Air JGW8130DDW12
30" Built−In Gas Single Oven
Parts Sections (4)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JGW8130DDW1230" Built−In Gas Single Oven
4 diagrams82 parts

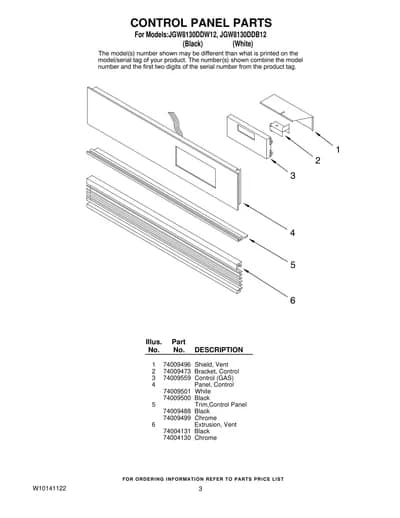

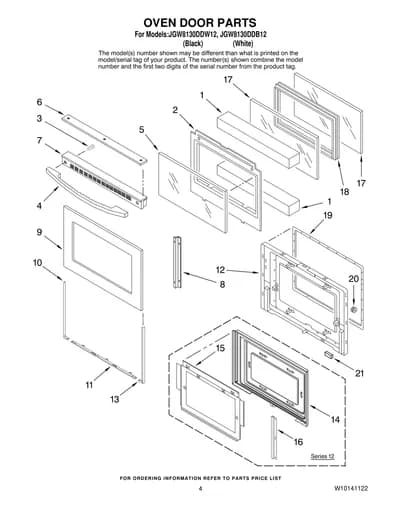

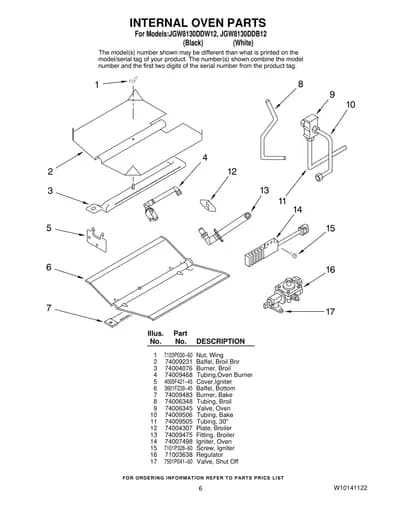

Parts Sections (4)
Diagram

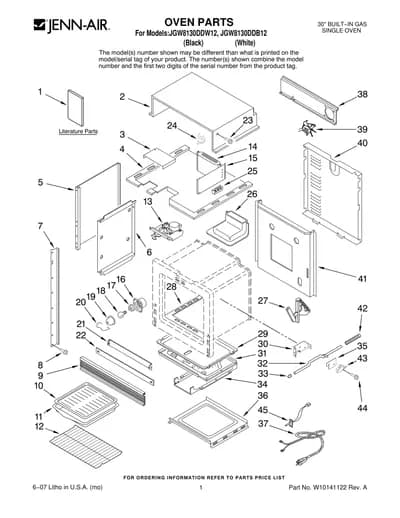

OVEN PARTS

Parts in OVEN PARTS
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 74009330 Booklet, Cooking | - |
| 1 | – | 15003431 8112P214−60 Manual, U&C — Wiring Diagram | - |
| 2 | – | 74009498 Cover, Top | - |
| 3 | – | 74009474 Retainer, Lock | - |
| 4 | – | 74009485 Retainer, Top Insulation | - |
| 5 | – | N/S 2618F083−51 Panel, Body | - |
| 6 | – | 74001436 Retainer, Side | - |
| 7 | – | 74009489 Left (Black) | - |
| 7 | – | 74009490 Right (Black) | - |
| 7 | – | 74009492 Left (Chrome) | - |
| 7 | – | 74009493 Right (Chrome) | - |
| 8 | – | N/S Screw, Extrusion 7101P040−60 Black 7101P041−60 Zinc | - |
| 9 | – | 74004130 Lower, (Chrome) | - |
| 9 | – | 74004131 Lower, (Black) | - |
| 10 | – | N/S 3413F016−19 Insert,Broil Pan | - |
| 11 | – | N/S 3401F020−19 Pan, Broil | - |
| 12 | WPW10282492replaces 74001757 Rack, Oven | $42.61 Part Advantage | |
| 13 | WPW10186996replaces 74008267 Latch, Door Assy | $206.28 ApplianceParts Pro | |
| 14 | – | N/S 4006D128−45 Riser, Duct Assy | - |
| 15 | – | 74009497 Sheild, Air | - |
| 16 | 74003388NLA Housing, Bulb | Discontinued | |
| 17 | Receptacle, Bulb | - | |
| 18 | – | N/S 7407P103−60 Bulb, Oven | - |
| 19 | – | 74003389 Cover, Bulb | - |
| 20 | – | 74003391 Retainer, Cover | - |
| 21 | – | 74001219 Baffel, Oven | - |
| 22 | – | N/S 4005F354−70 Strip, Bottom | - |
| 23 | Screw, (8AB 1/2) | - | |
| 24 | Switch, Limit | - | |
| 25 | – | N/S 7401P037−60 Block, Terminal | - |
| 26 | – | N/S 4006W117−45 Box, Flute | - |
| 27 | WP74011141replaces 74003968 Hinge, Door | $81.23 Part Advantage | |
| 28 | – | 74011347 Bottom, Oven Assy | - |
| 29 | – | 74001651 Pan, Bake Burner | - |
| 30 | – | 74001632 Bracket, Switch | - |
| 31 | – | 74009480 Retainer, Bottom | - |
| 32 | – | 74003562 Rod, Light Switch | - |
| 33 | Cover, Plunger | - | |
| 34 | – | N/S 3807F429−51 Support, Oven | - |
| 35 | – | 74008264 Insulator | - |
| 36 | – | 74001742 Bottom, Main | - |
| 37 | – | N/S 7402P043−60 Cord, Power | - |
| 38 | – | N/S 4001F083−51 Housing, Fan | - |
| 39 | ![]() | 7427P031-60replaces 74004450 Fan Assy | - |
| 40 | – | N/S 4005F405−51 Cover, Back | - |
| 41 | – | 74009486 Back, Main | - |
| 42 | Spring,Door Switch | - | |
| 43 | WP74008263replaces 74008263 Switch, Door Lock | - | |
| 44 | – | N/S 7101P330−60 Screw, Switch | - |
| 45 | 12001655replaces 74004944 Sensor, Oven NOT ILLUSTRATED | $18.18 Part Advantage | |
| 45 | – | 74009491 Harness, Door | - |
| 45 | – | 74009495 Harness, Main | - |
