Diagram

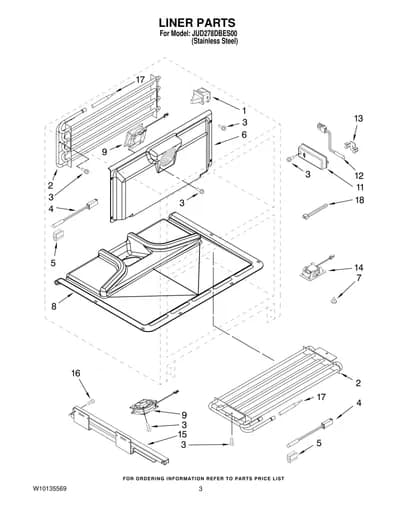

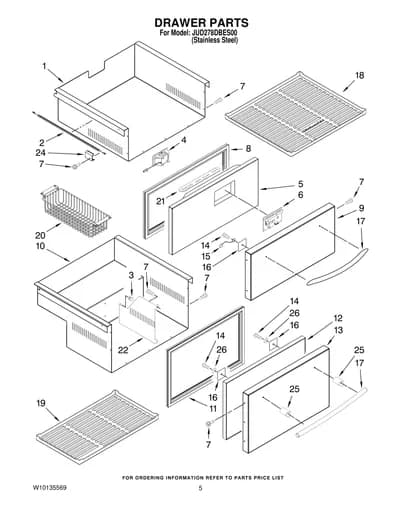

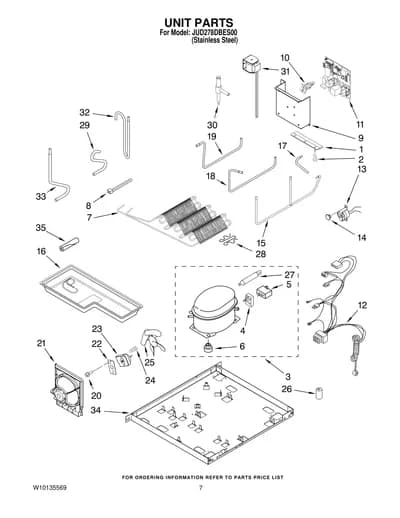

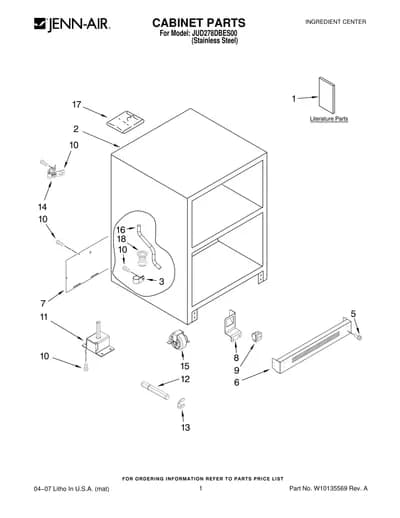

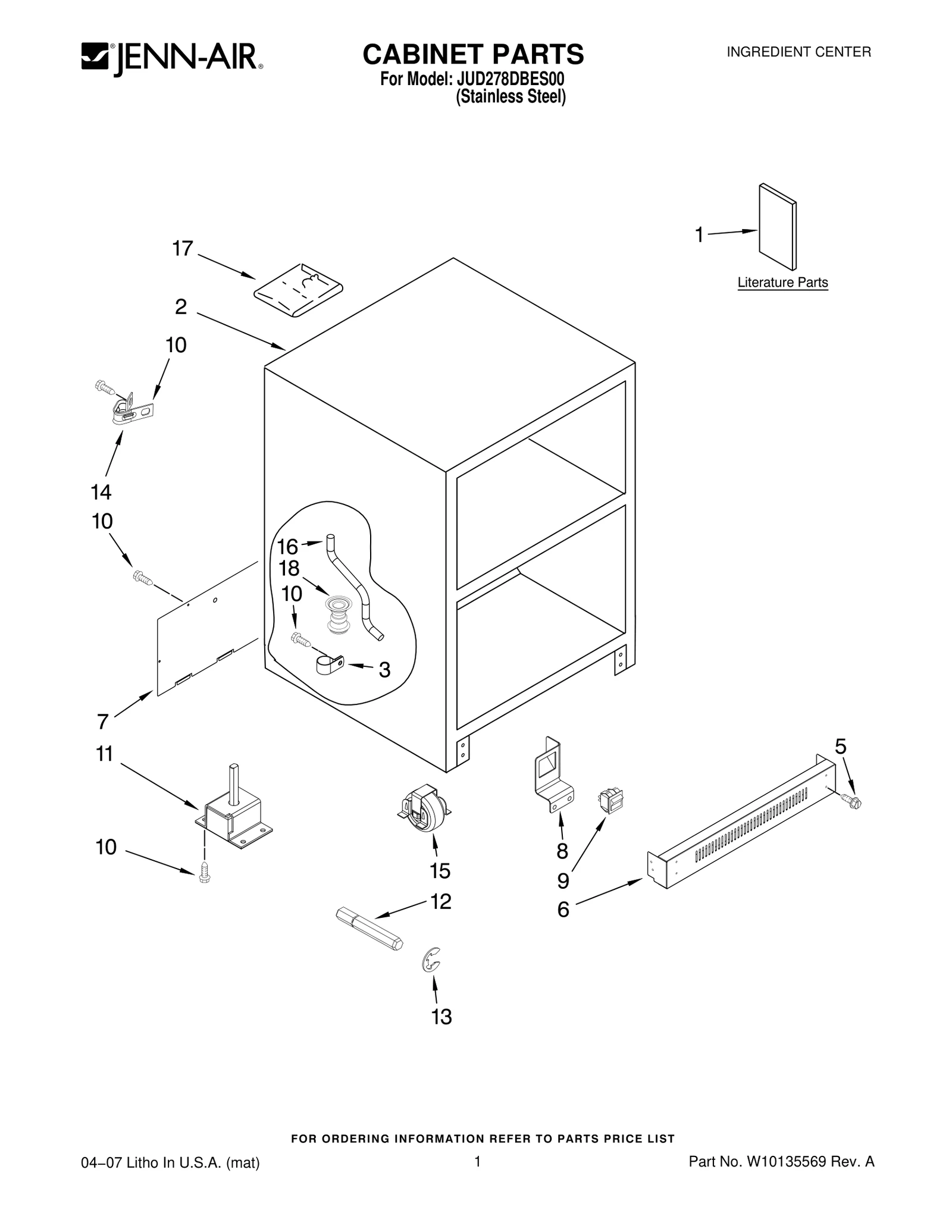

CABINET PARTS
Parts in CABINET PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10122766 Use & Care Guide | - |
| 1 | – | 2258088 Temperature Guide | - |
| 1 | – | W10122769 Service & Wiring Sheet | - |
| 1 | – | W10122764 Energy Guide | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 | – | 2258085 Clamp, Drain Tube | - |
| 5 | – | W10113774 Screw | - |
| 6 | – | 2258378 Grille | - |
| 7 | – | 2257885 Cover, Unit | - |
| 8 | – | 2257923 Bracket, Switch | - |
| 9 |  | WP2266802replaces 2266802 Switch, Power | $27.15 Part Advantage |
| 10 |  | WP489478replaces 489478 Screw | $5.00 RepairClinic |
| 11 |  | Leveler Asm (4) | $82.63 ApplianceParts Pro |
| 12 | – | 2257892 Rear (2) | - |
| 12 | – | 2257893 Front (2) | - |
| 13 | | Ring, Retaining | $23.62 RepairClinic |
| 14 |  | Clamp, Power Cord | - |
| 15 |  | WPW10138054replaces 1112023 Roller (4) | $14.09 Part Advantage |
| 16 | – | 2257916 Tube, Drain | - |
| 17 | – | 2258203 Kit, Mounting (4 brackets & 16 screws) | - |
| 18 |  | W11566763replaces 940139 Drain Fitting | $19.22 Part Advantage |
