Model
Maytag JXT6030ADR0
30/36" Range Hood (Vented)
Parts Sections (1)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
JXT6030ADR030/36" Range Hood (Vented)
1 diagram28 parts
Parts Sections (1)
Diagram

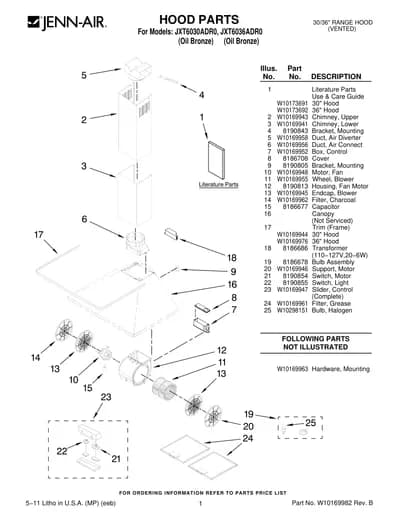

HOOD PARTS

Parts in HOOD PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10173691 Use & Care Guide — 30" Hood | - |
| 1 | – | W10173692 Use & Care Guide — 36" Hood | - |
| 2 | – | W10169943 Chimney, Upper | - |
| 3 | – | W10169941 Chimney, Lower | - |
| 4 | 8190843NLA Bracket, Mounting | Discontinued | |
| 5 | – | W10169958 Duct, Air Diverter | - |
| 6 | Duct, Air Connect | - | |
| 7 | – | W10169952 Box, Control | - |
| 8 | – | 8186708 Cover | - |
| 9 | 8190805NLA Bracket, Mounting | Discontinued | |
| 10 | – | W10169948 Motor, Fan | - |
| 11 | Wheel, Blower | $112.49 RepairClinic | |
| 12 | 8190813NLA Housing, Fan Motor | Discontinued | |
| 13 | – | W10169945 Endcap, Blower | - |
| 14 | Filter, Charcoal | Discontinued | |
| 15 | Capacitor | - | |
| 16 | – | N/S Canopy | - |
| 17 | – | W10169944 Trim (Frame) — 30" Hood | - |
| 17 | – | W10169976 Trim (Frame) — 36" Hood | - |
| 18 | ![]() | W11186486replaces 8186686 Transformer | $131.95 ApplianceParts Pro |
| 19 | WPW10298151replaces 8186678 Bulb Assembly | $11.75 Part Advantage | |
| 20 | – | W10169946 Support, Motor | - |
| 21 | Switch, Motor | - | |
| 22 | 8190855NLA Switch, Light | Discontinued | |
| 23 | – | W10169947 Slider, Control | - |
| 24 | W10169961Areplaces W10169961 Filter, Grease | $21.10 Part Advantage | |
| 25 | WPW10298151replaces W10298151 Bulb, Halogen NOT ILLUSTRATED | $11.75 Part Advantage | |
| 25 | – | W10169963 Hardware, Mounting | - |
