Model
KitchenAid KBCA06XPBL01
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBCA06XPBL01Refrigerator
3 diagrams66 parts

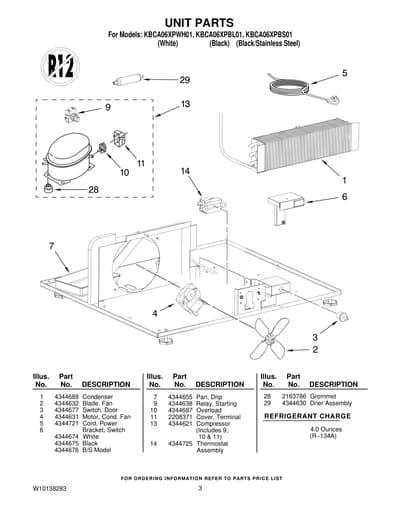

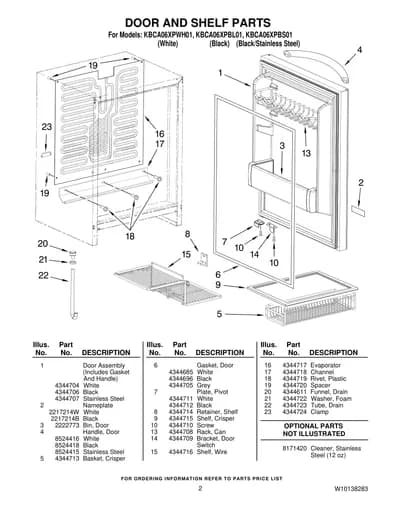

Parts Sections (3)
Diagram

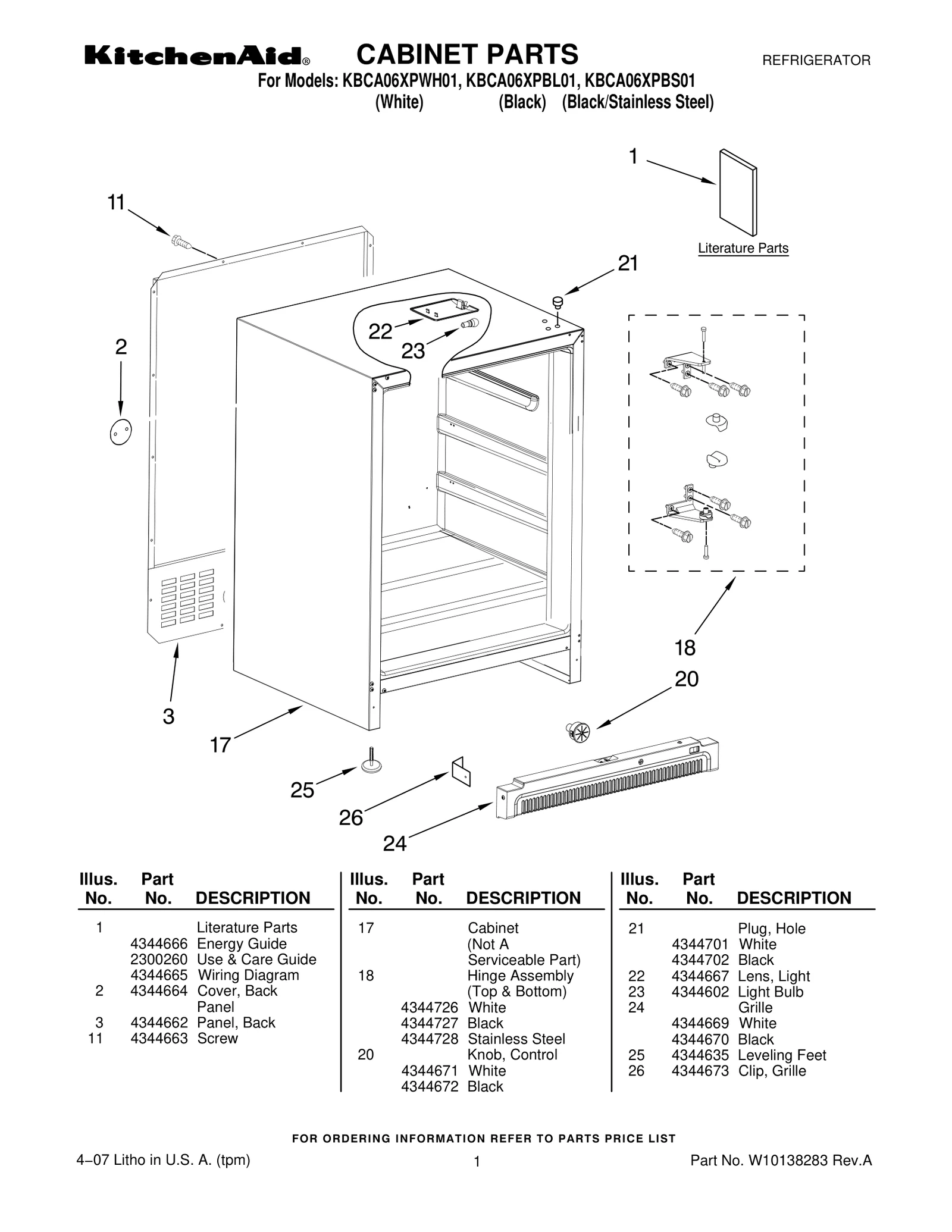

CABINET PARTS
Parts in CABINET PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 4344666 Energy Guide | - |
| 1 | – | 2300260 Use & Care Guide | - |
| 1 | – | 4344665 Wiring Diagram | - |
| 2 | – | 4344664 Cover, Back Panel | - |
| 3 | – | 4344662 Panel, Back | - |
| 11 |  | WP8281196replaces 4344663 Screw | $9.62 PartSelect |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 18 | – | 4344726 Hinge Assembly — White | - |
| 18 |  | Hinge Assembly — Black | - |
| 18 | – | 4344728 Hinge Assembly — Stainless Steel | - |
| 20 | | Knob, Control — White | - |
| 20 | | 4344672NLA Knob, Control — Black | Discontinued |
| 21 | – | 4344701 Plug, Hole — White | - |
| 21 | | Plug, Hole — Black | - |
| 22 | – | 4344667 Lens, Light | - |
| 23 |  | WP22002263replaces 4344602 Light Bulb | $7.60 Part Advantage |
| 24 | – | 4344669 Grille — White | - |
| 24 | – | 4344670 Grille — Black | - |
| 25 | | Leveling Feet | - |
| 26 | – | 4344673 Clip, Grille | - |
