Model
KitchenAid KBCO06XPBL01
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBCO06XPBL01Refrigerator
3 diagrams51 parts
Parts Sections (3)

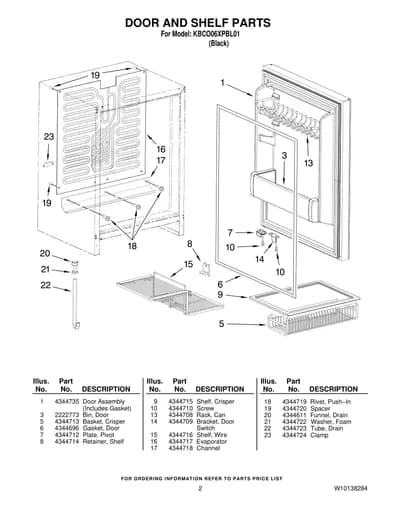

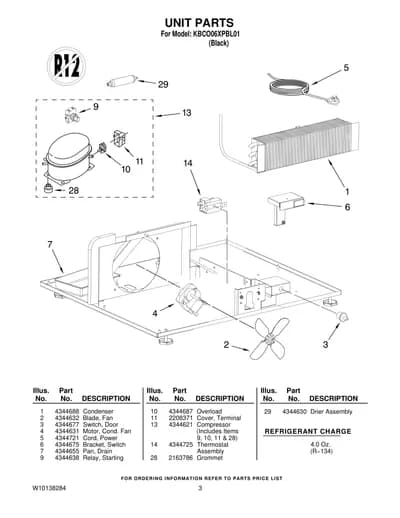

Diagram

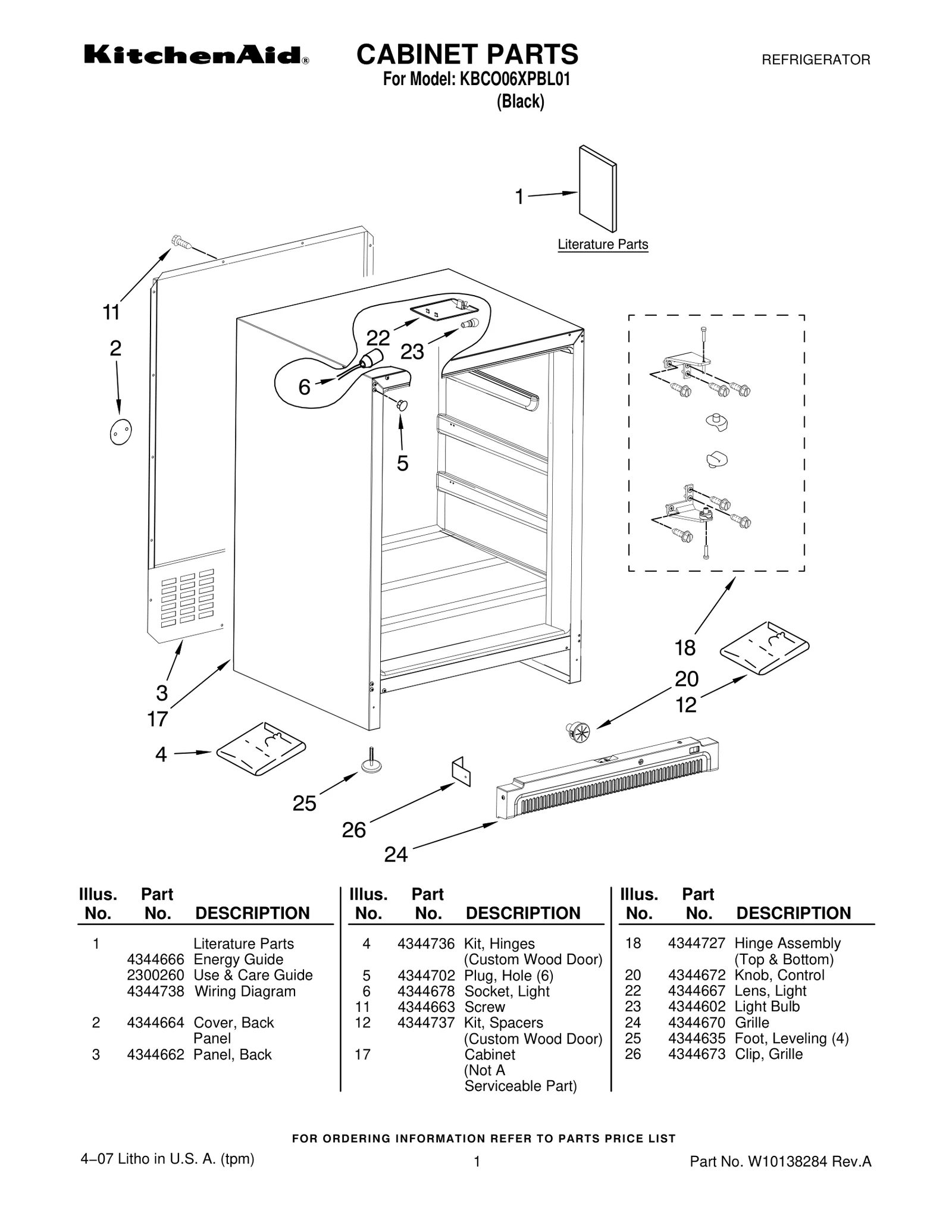

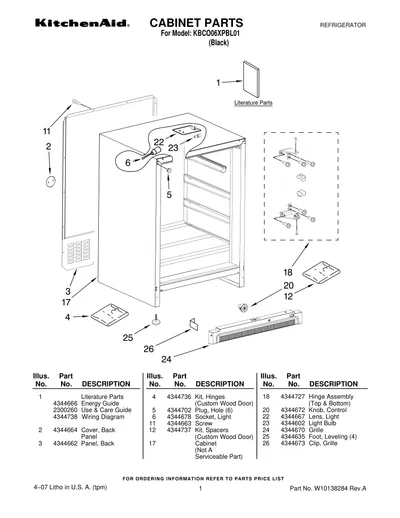

CABINET PARTS
Parts in CABINET PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 4344666 Energy Guide | - |
| 1 | – | 2300260 Use & Care Guide | - |
| 1 | – | 4344738 Wiring Diagram | - |
| 2 | – | 4344664 Cover, Back Panel | - |
| 3 | – | 4344662 Panel, Back | - |
| 4 | – | 4344736 Kit, Hinges | - |
| 5 |  | Plug, Hole (6) | - |
| 6 | – | 4344678 Socket, Light | - |
| 11 |  | WP8281196replaces 4344663 Screw | $9.62 PartSelect |
| 12 | – | 4344737 Kit, Spacers | - |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 18 | | Hinge Assembly | - |
| 20 | | 4344672NLA Knob, Control | Discontinued |
| 22 | – | 4344667 Lens, Light | - |
| 23 |  | WP22002263replaces 4344602 Light Bulb | $7.60 Part Advantage |
| 24 | – | 4344670 Grille | - |
| 25 | | Foot, Leveling (4) | - |
| 26 | – | 4344673 Clip, Grille | - |
