Model
KitchenAid KBFA25ERSS01
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBFA25ERSS01Refrigerator
9 diagrams284 parts

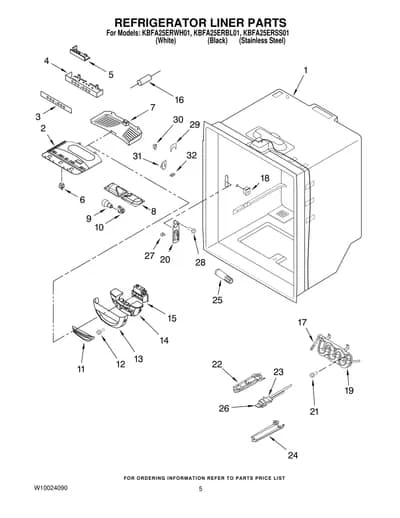

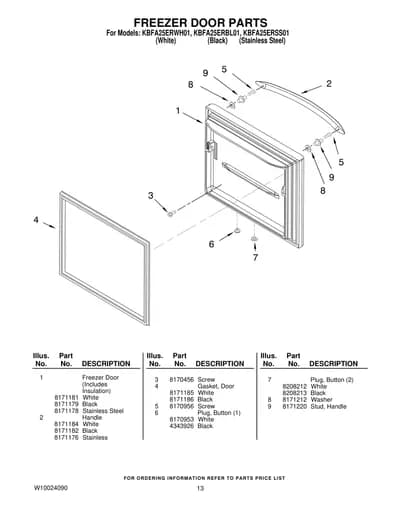

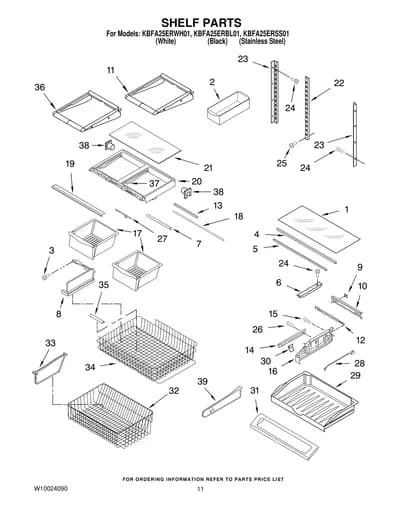

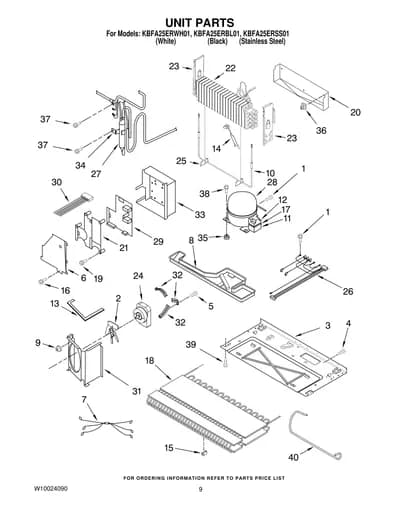

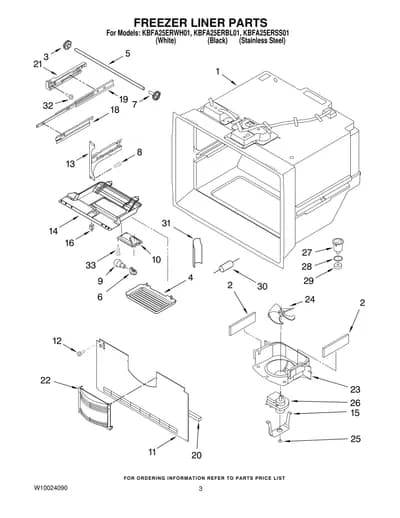

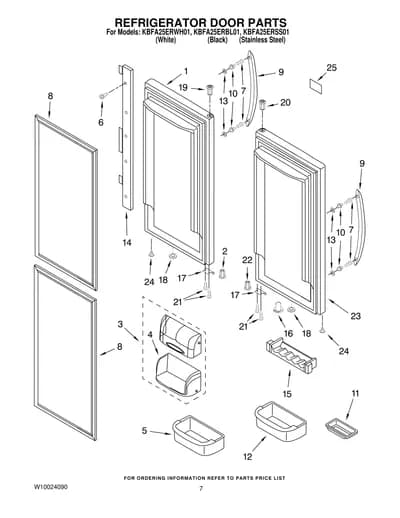

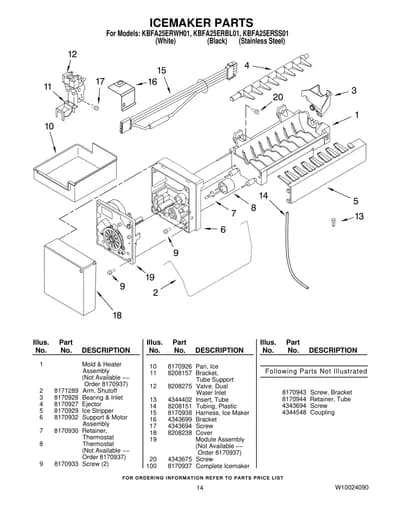

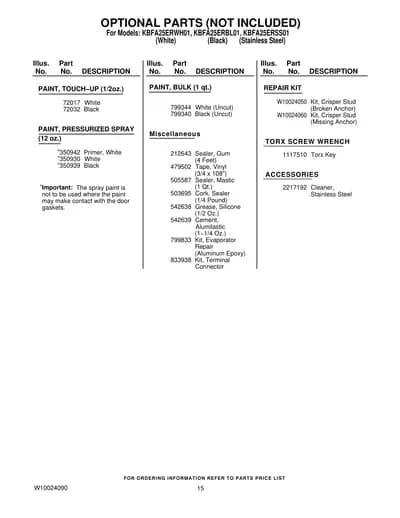

Parts Sections (9)
Diagram

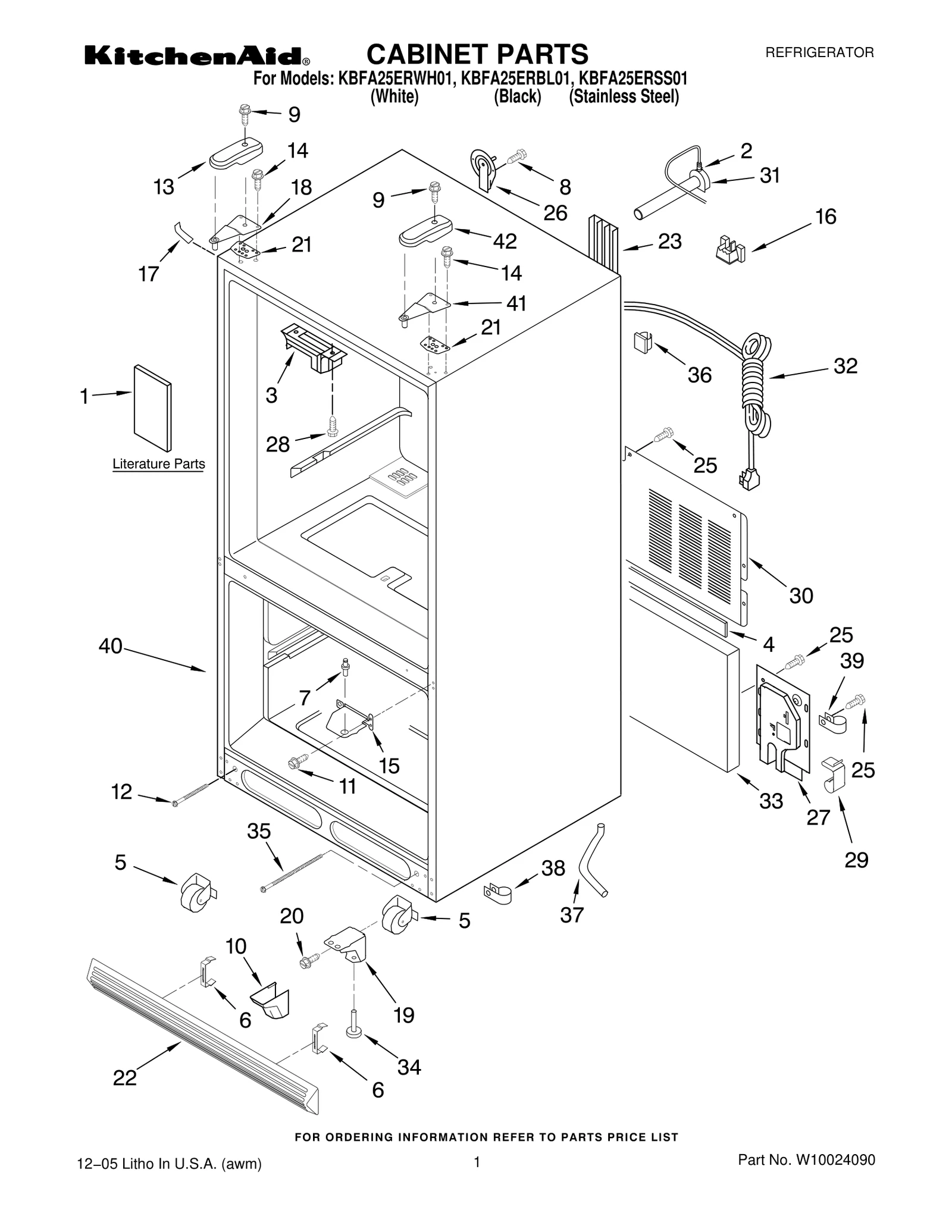

CABINET PARTS
Parts in CABINET PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8208340 Tech Sheet | - |
| 1 | – | 2300263 Owners Manual | - |
| 1 | – | W10024100 Guide, Energy | - |
| 2 |  | WPM0114003replaces 4343702 Clip | $7.95 ApplianceParts Pro |
| 3 |  | WP67003405replaces 8208254 Plate, Pivot | $3.55 Part Advantage |
| 4 | – | 8170924 Gasket | - |
| 5 |  | 8170886NLA Roller Assembly | Discontinued |
| 6 | | 8170869NLA Clip, Grille | Discontinued |
| 7 |  | 12002311replaces 8171216 Pin, Center Hinge (2) | $5.04 Parts Dr |
| 8 |  | WP98165replaces 4343675 Screw | $7.47 PartSelect |
| 9 |  | WP8281196replaces 8171215 Screw | $9.62 PartSelect |
| 10 | – | 8171004 Hinge Cover, Bottom — White | - |
| 10 | | 8171002NLA Hinge Cover, Bottom — Black | Discontinued |
| 11 |  | WP67006380replaces 4344186 Screw | $21.46 ApplianceParts Pro |
| 12 |  | 71003131replaces 8170972 Bolt, Adjusting | $6.21 Parts Dr |
| 13 | – | 8208247 Cover, Left Hinge — White | - |
| 13 | | 8208248NLA Cover, Left Hinge — Black | Discontinued |
| 14 |  | WP489349replaces 4344198 Screw | $2.30 Part Advantage |
| 15 | | W11689473replaces 8170981 Hinge, Center (2) — White | $44.23 PartSelect |
| 15 |  | WP12607104EDreplaces 8170980 Hinge, Center (2) — Black | $53.11 Parts Dr |
| 16 |  | WP12777701replaces 8208167 Block, Filter | - |
| 17 | | 67003484replaces 8170860 Cover, Corner — White | $13.72 RepairClinic |
| 17 |  | 67003485replaces 8170858 Cover, Corner — Black | - |
| 18 |  | WP12566607EDreplaces 8208246 Hinge, Top Left | $51.61 PartSelect |
| 19 | | 8171067NLA Hinge, Bottom — White | Discontinued |
| 19 | | 8171066NLA Hinge, Bottom — Black | Discontinued |
| 20 | | 8171202NLA Screw | Discontinued |
| 21 | | 8208257NLA Shim, Hinge | Discontinued |
| 22 | – | 8170866 Grille Assembly — White | - |
| 22 |  | Grille Assembly — Black | Discontinued |
| 23 | – | 8208152 Track, Water Line | - |
| 25 | – | 4344167 Screw | - |
| 26 |  | 12726003replaces 8208155 Cover, Water Line | - |
| 27 | – | 8208294 Cover, Water Valve | - |
| 28 |  | W11233072replaces 8208255 Screw | $8.78 Part Advantage |
| 29 | | 67004701replaces 8208295 Clip, Water Line | $13.67 PartSelect |
| 30 | – | 8170910 Cover, Unit | - |
| 31 |  | W11176463replaces 8170414 Fill Tube Asm | $42.61 Part Advantage |
| 32 |  | WP67006506replaces 8170925 Power Cord | $18.80 Parts Dr |
| 33 |  | 67003796replaces 8171247 Insulation, Sound | $11.89 Parts Dr |
| 34 |  | W11177593replaces 8171272 Foot Brake | $6.48 Part Advantage |
| 35 | | Bolt, Adjusting | - |
| 36 |  | WPM0104106replaces 4344265 Clip, Cord | $3.59 Parts Dr |
| 37 | | 8170861NLA Tube, Drain | Discontinued |
| 38 | | 67001067replaces 8170862 Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 39 |  | W10833902replaces 8170942 Clamp, Tube | $2.97 RepairClinic |
| 40 | – | N/S Cabinet (Not a Servicable Part) | - |
| 41 |  | WP12566606EDreplaces 8170974 Hinge, Top Right | $18.97 Parts Dr |
| 42 | | Cover, Right Hinge — White | - |
| 42 | | 8208262NLA Cover, Right Hinge — Black | Discontinued |
