Model
KitchenAid KBFL25EVMS00
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBFL25EVMS00Refrigerator
9 diagrams257 parts

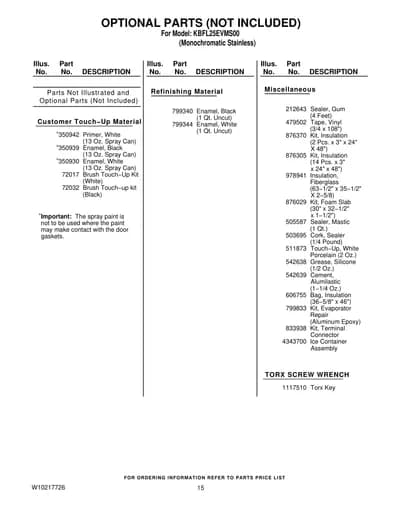

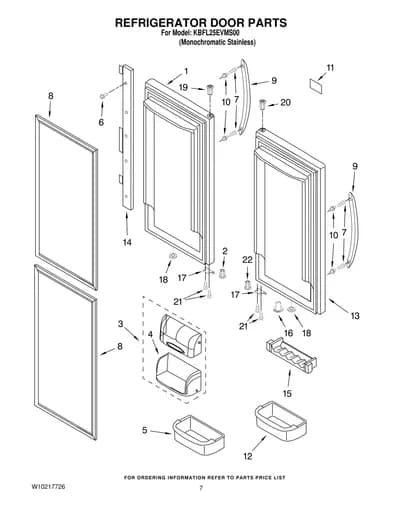

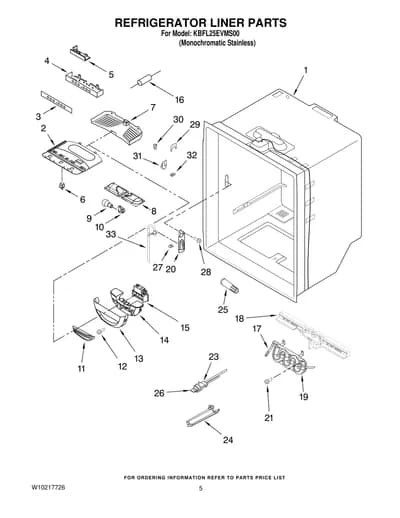

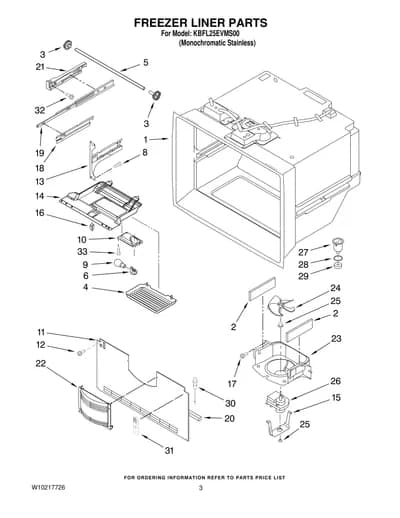

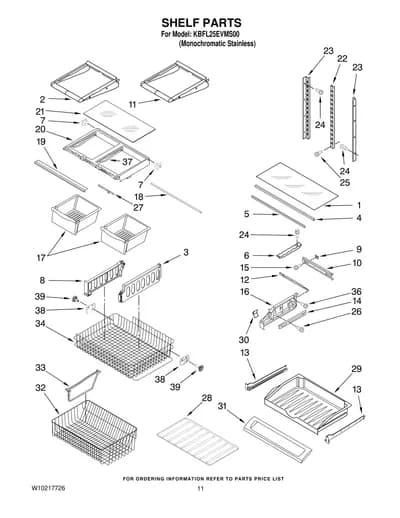

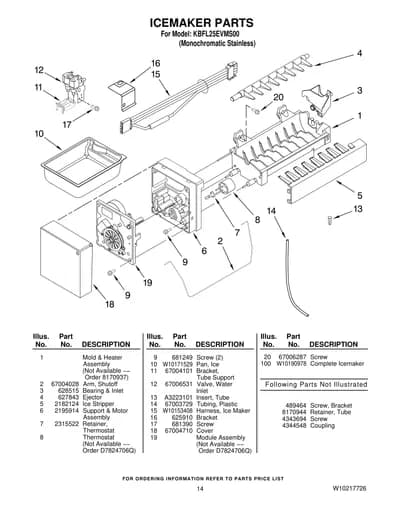

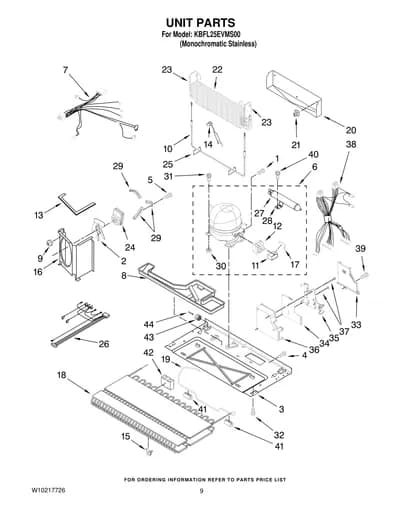

Parts Sections (9)
Diagram

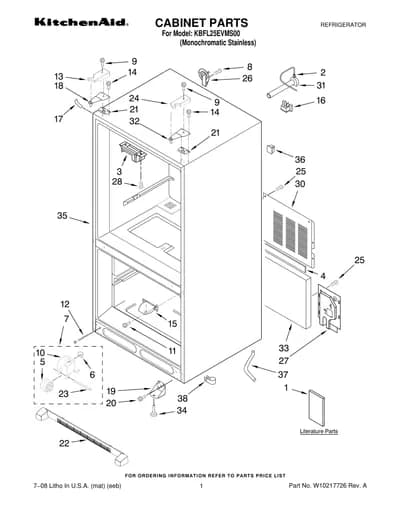

CABINET PARTS
Parts in CABINET PARTS
39 parts

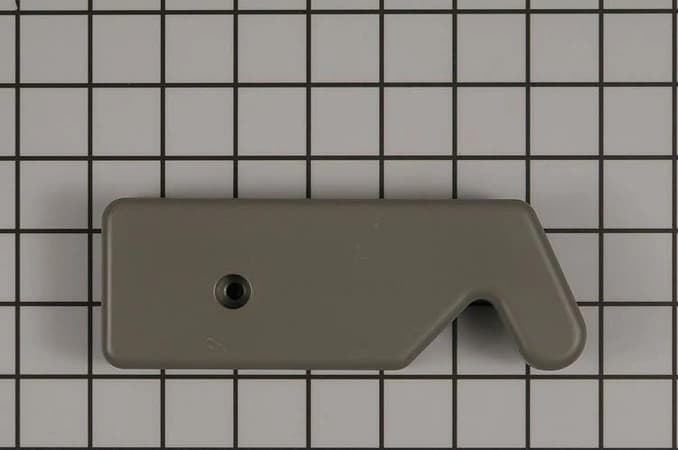

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10198858 Tech Sheet | - |
| 1 | – | W10187309 Owners Manual | - |
| 1 | – | W10187812 Tag, Energy | - |
| 2 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 3 |  | WP67003405replaces 67003405 Plate, Pivot | $3.55 Part Advantage |
| 4 | – | 8170924 Gasket | - |
| 5 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
| 6 |  | Nut, Speed | $19.88 RepairClinic |
| 7 | – | 67006118 Roller Assembly | - |
| 8 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
| 11 |  | WP67006380replaces 67006380 Screw | $21.46 ApplianceParts Pro |
| 12 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 13 |  | W10217487replaces 12629803AP Cover, Left Hinge — Apollo Grey | - |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 |  | Hinge, Center (RT) — Apollo Grey | - |
| 16 |  | WP12777701replaces 67004092 Block, Filter | - |

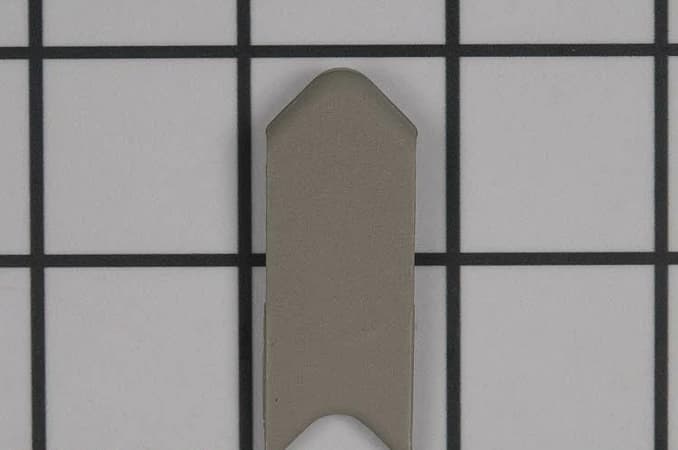

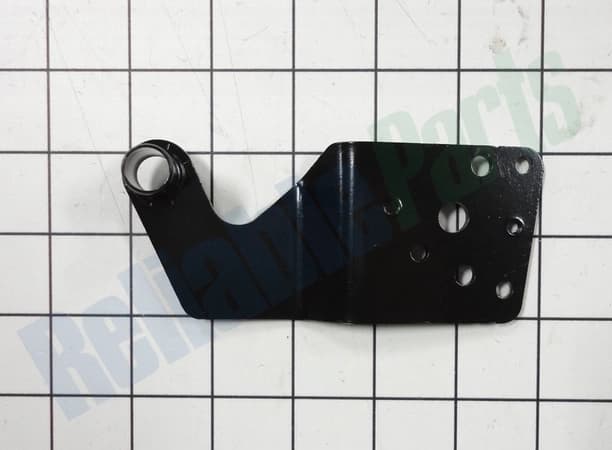

| 17 |  | WP12587703APreplaces 12587703AP Cover, Corner — Apollo Grey | $9.57 ApplianceParts Pro |
| 18 |  | Hinge, Top Left | - |
| 19 |  | 12906303WDreplaces W10208641 Bracket, Foot (2) | $27.27 Parts Dr |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 | – | 12579702 Shim, Hinge | - |
| 22 |  | WPW10534155replaces 12880103AP Grille Assembly — Apollo Grey | $40.17 Part Advantage |
| 23 | – | M1205302 Pin | - |
| 24 |  | Cover, Right Hinge — Apollo Grey | - |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 | | Cover, Water Line | - |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 | | WP7101P126replaces 67006669 Screw | $3.66 Parts Dr |
| 30 | – | B5759649 Cover, Unit | - |
| 31 |  | W11181718replaces 67004099 Fill Tube Assy. | $48.71 Parts Dr |
| 32 |  | Hinge, Top Right | $85.12 RepairClinic |
| 33 |  | Insulation, Sound | $11.89 Parts Dr |
| 34 |  | W11177593replaces 67003868 Foot Brake | $6.48 Part Advantage |
| 35 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 36 |  | WPM0104106replaces M0104106 Clip | $3.59 Parts Dr |
| 37 |  | Tube, Drain | - |
| 38 | – | W10157973 Clip, Drain Tube | - |
