Model
KitchenAid KBFS25ETBL00
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBFS25ETBL00Refrigerator
9 diagrams277 parts

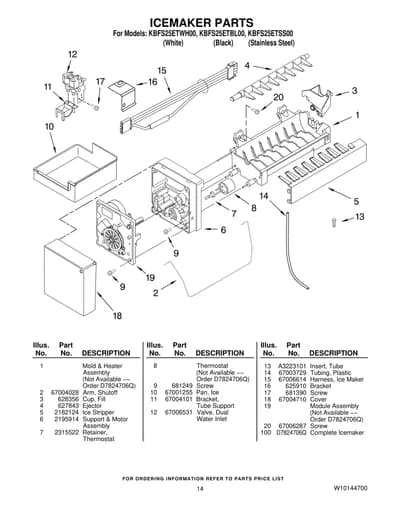

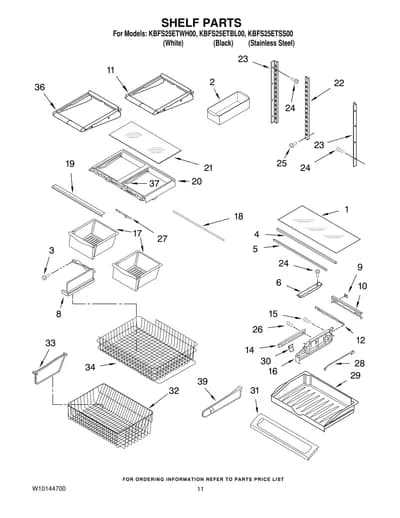

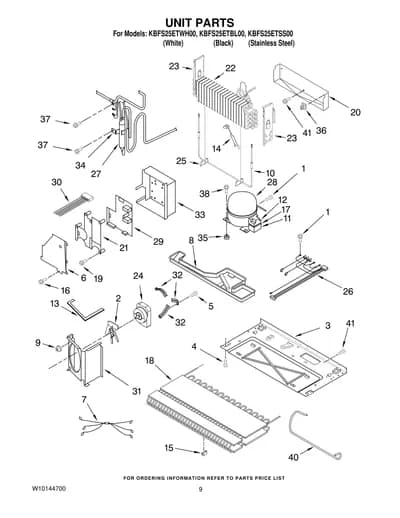

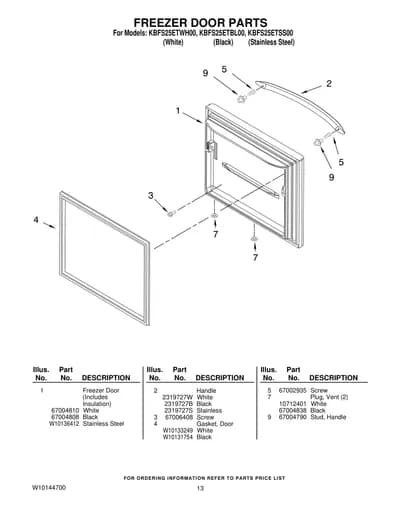

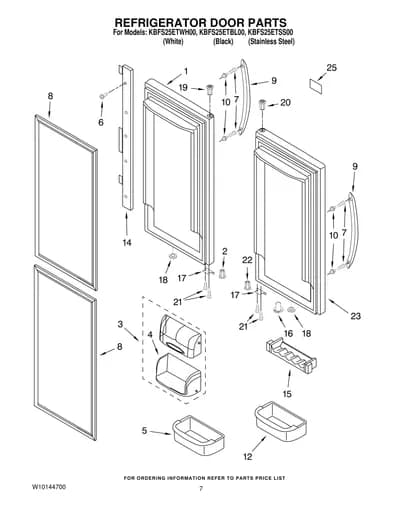

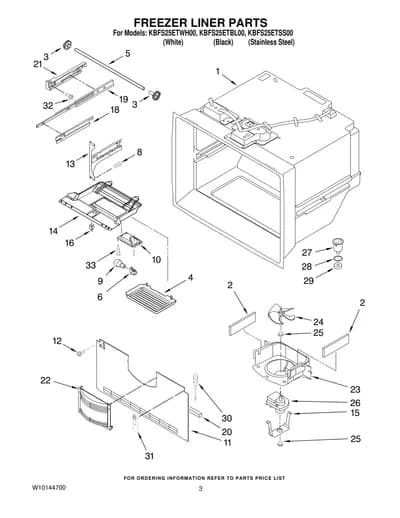

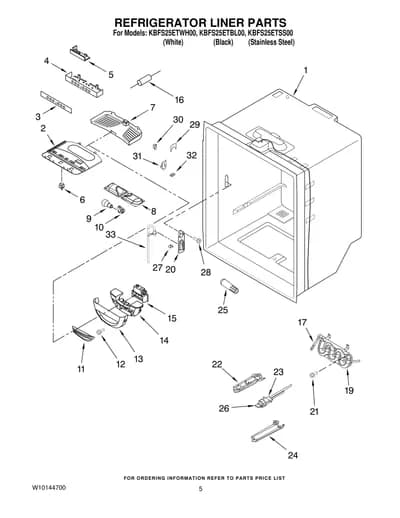

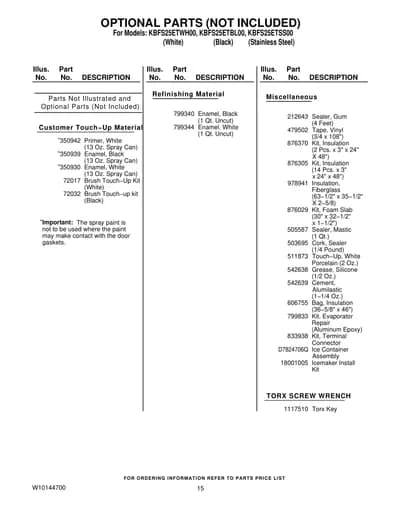

Parts Sections (9)
Diagram

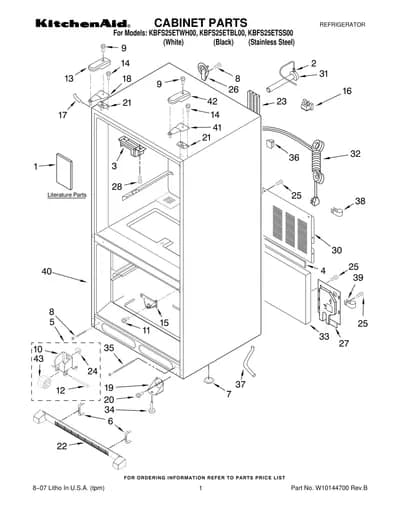

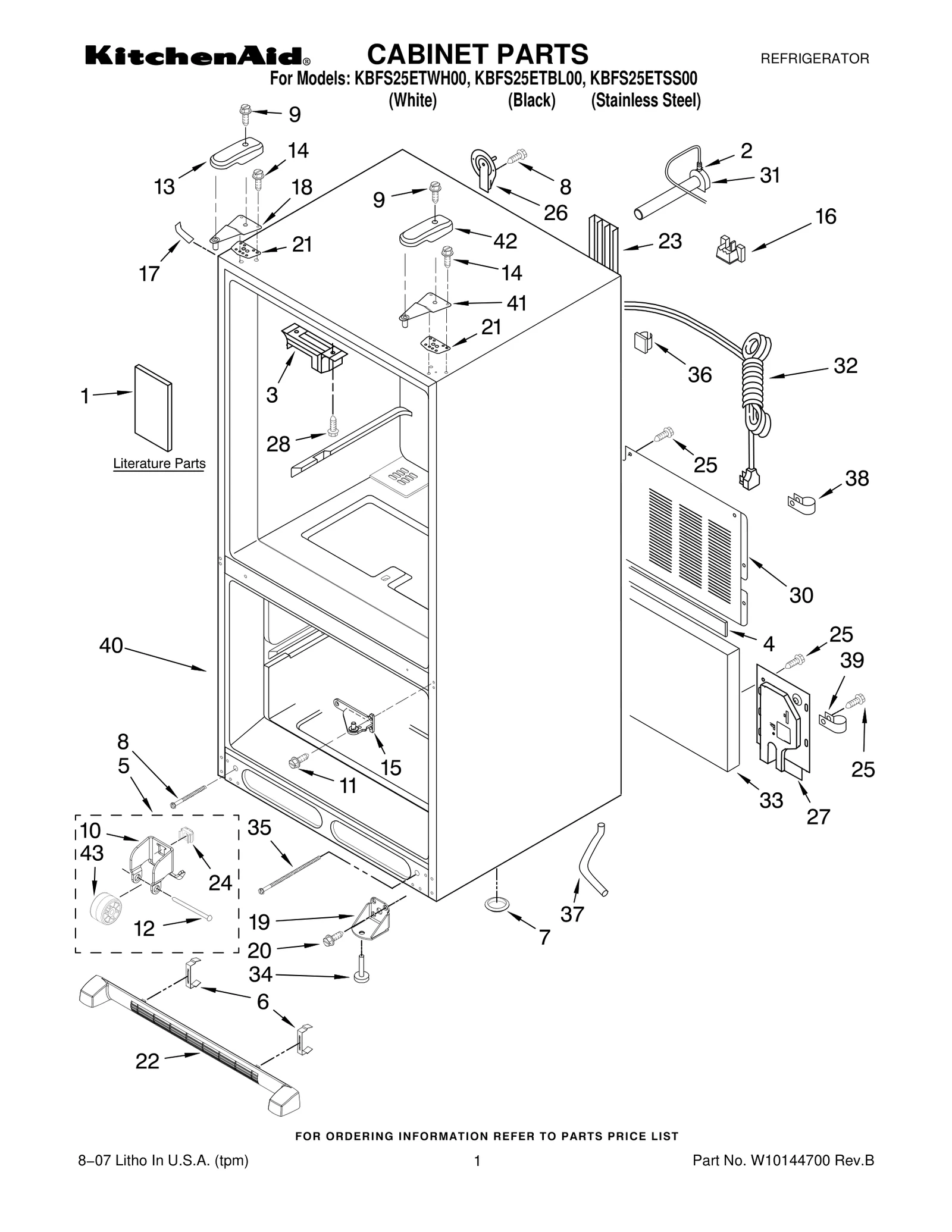

CABINET PARTS
Parts in CABINET PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 67006616 Tech Sheet | - |
| 1 | – | W10136989 Owners Manual | - |
| 1 | – | W10138143 Tag, Energy | - |
| 2 |  | WPM0114003replaces M0114003 Clip | $7.95 ApplianceParts Pro |
| 3 |  | WP67003405replaces 67003405 Plate, Pivot | $3.55 Part Advantage |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 67006118 Roller Assembly | - |
| 6 | – | 12627302 Clip, Grille | - |
| 7 |  | Plug, Bottom | - |
| 8 |  | 71003131replaces 67006611 Bolt, Adjustable | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
| 11 |  | WP67006380replaces 67006380 Screw | $21.46 ApplianceParts Pro |
| 12 | – | M1205302 Pin, Roller | - |
| 13 | – | 12684201W Cover, Left Hinge — White | - |
| 13 |  | 12684201BNLA Cover, Left Hinge — Black | Discontinued |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 | – | 67006379 White (RT) | - |
| 15 |  | W10918113replaces 67006277 White (LT) | $58.43 ApplianceParts Pro |
| 15 |  | W10918164replaces 67006443 Black (RT) | $49.48 Parts Dr |
| 15 |  | Black (LT) | - |
| 16 |  | WP12777701replaces 67004092 Block, Filter | - |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 17 |  | Cover, Corner — Black | - |
| 18 |  | WP12566607EDreplaces 12566605ED Hinge, Top Left | $51.61 PartSelect |
| 19 |  | 12906303WDreplaces 67007174 Bracket, Foot | $27.27 Parts Dr |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 | – | 12579702 Shim, Hinge | - |
| 22 |  | WPW10534154replaces 67006377 Grille Assembly — White | $78.77 PartSelect |
| 22 |  | WPW10534153replaces 67006375 Grille Assembly — Black | $56.39 Part Advantage |
| 23 | – | 67004102 Track, Water Line | - |
| 24 |  | Nut, Speed | $19.88 RepairClinic |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 | | Cover, Water Line | - |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 |  | W11233072replaces 67006626 Screw | $8.78 Part Advantage |
| 30 | – | 12575101ED Cover, Unit | - |
| 31 |  | W11176463replaces W10137519 Fill Tube Asm | $42.61 Part Advantage |
| 32 | | Power Cord | - |
| 33 |  | Insulation, Sound | $11.89 Parts Dr |
| 34 |  | W11177593replaces 67003868 Foot Brake | $6.48 Part Advantage |
| 35 | – | 67006612 Bolt, Adjusting | - |
| 36 |  | WPM0104106replaces M0104106 Clip, Tube | $3.59 Parts Dr |
| 37 | | 67001066NLA Tube, Drain | Discontinued |
| 38 | | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 39 | | M0104102NLA Clamp, Cord | Discontinued |
| 40 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 41 |  | WP12566606EDreplaces 12566604ED Hinge, Top Right | $18.97 Parts Dr |
| 42 | – | 12684202W Cover, Right Hinge — White | - |
| 42 | | Cover, Right Hinge — Black | - |
| 43 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
