Model
KitchenAid KBHS109SSS01
30" Built−In Microwave

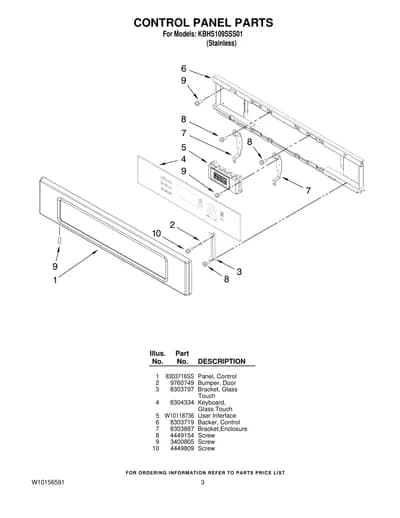

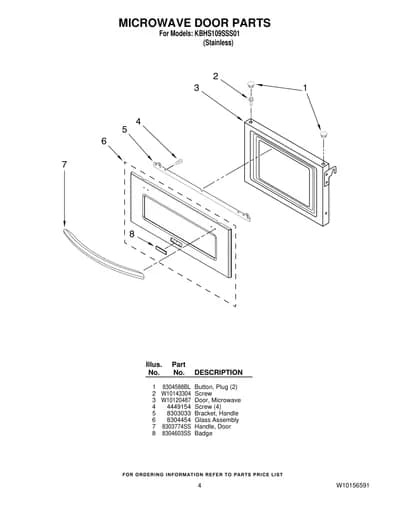

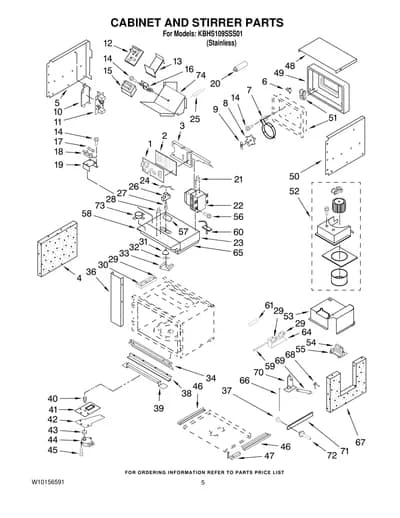

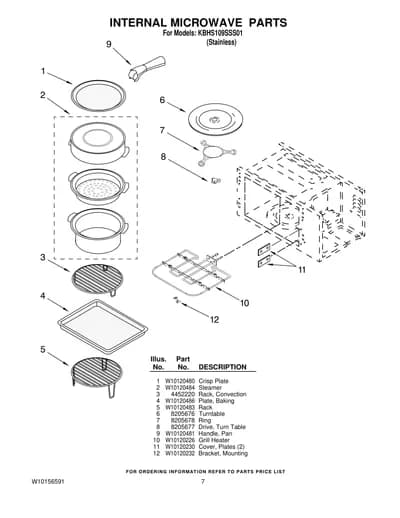

Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBHS109SSS0130" Built−In Microwave
6 diagrams133 parts
Parts Sections (6)
Diagram

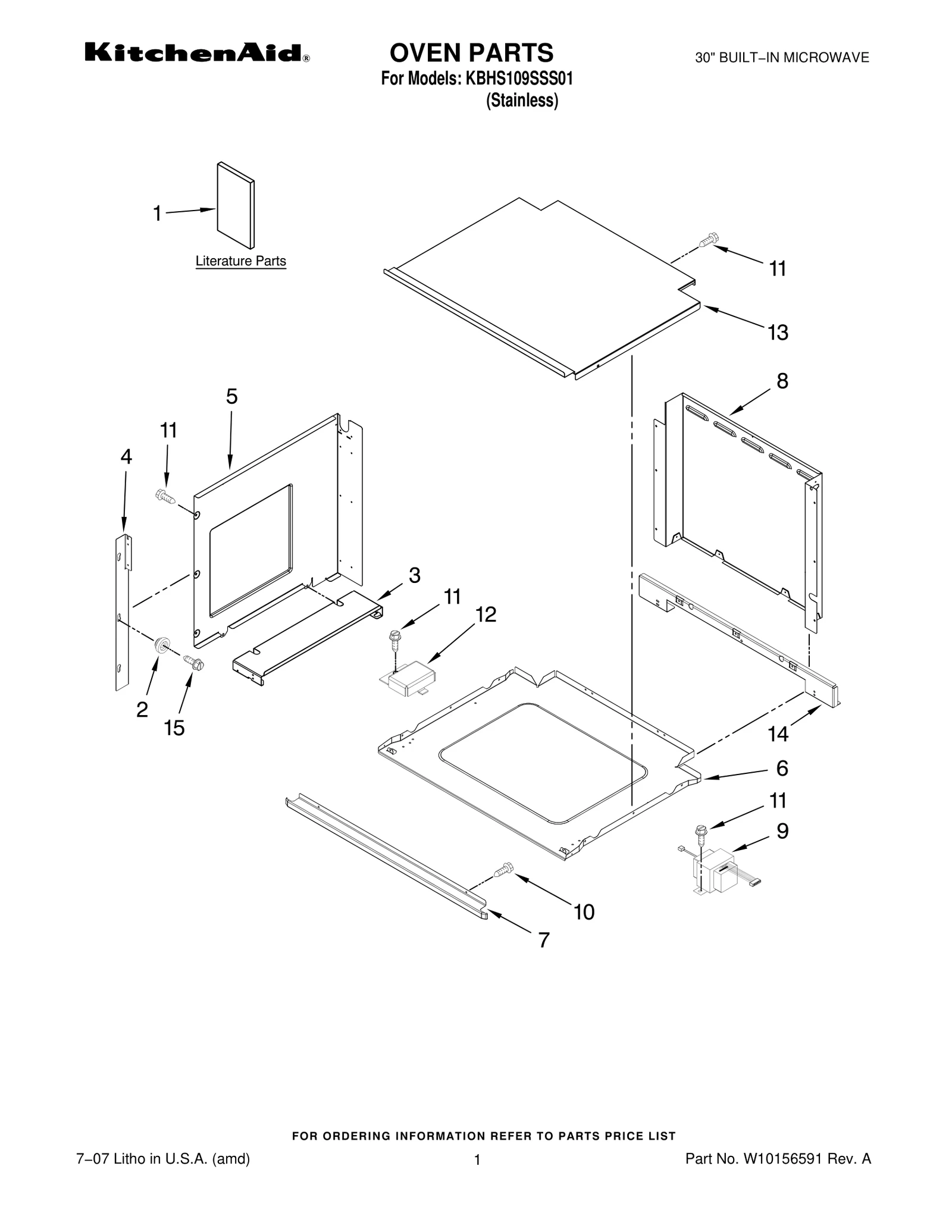

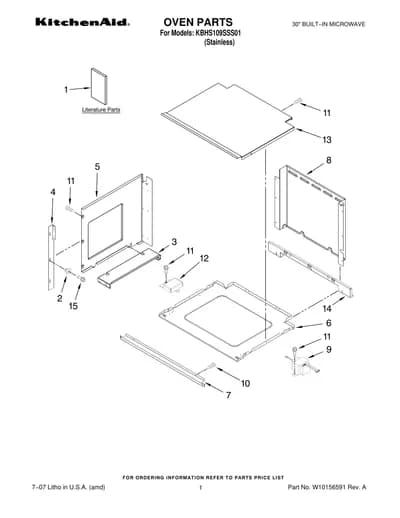

OVEN PARTS
Parts in OVEN PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8304424 Installation Instructions | - |
| 1 | – | 8304369 Use & Care Guide Tech Sheet | - |
| 1 | – | 8304418 English | - |
| 1 | – | 8304419 French | - |
| 1 | – | 8304375 Easy Set Guide Safer Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |

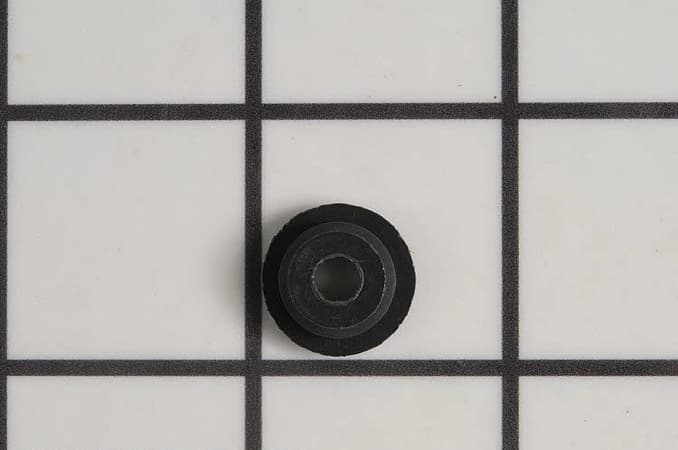

| 2 |  | WP4448444replaces 4448444 Grommet, Mounting Rail | $4.32 Parts Dr |
| 3 | – | 8304569 Support, Microwave Module | - |
| 4 | – | 8304621BL Rail, Mounting Side — Right | - |
| 4 | – | 8304622BL Rail, Mounting Side — Left | - |
| 5 | | Side, Chassis — Right | - |
| 5 | – | 8303539 Side, Chassis — Left | - |
| 6 | – | 8304216 Base, Chassis | - |
| 7 | | 8304057NLA Trim, Bottom | Discontinued |
| 8 | – | 8304509 Chassis, Back | - |
| 9 | | Transformer, Microwave UI | - |
| 10 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 11 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |

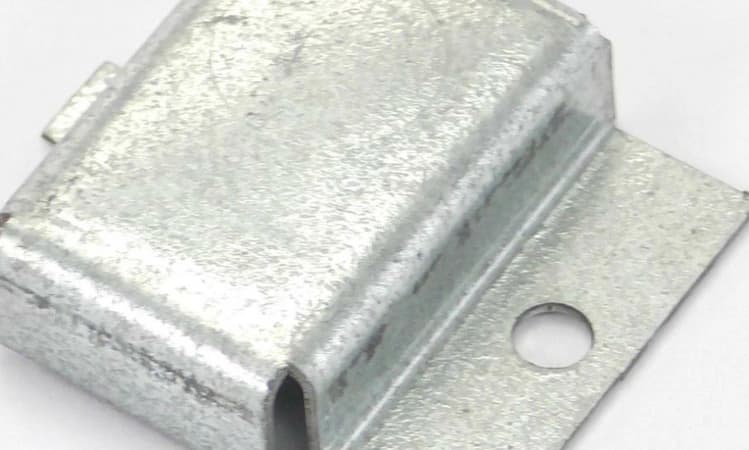

| 12 |  | Connector Cover | - |
| 13 | – | 8303519 Cover, Top | - |
| 14 | – | 8303537 Channel, Rear | - |
| 15 | | WP3400893replaces 3400893 Screw | - |
