KitchenAid KBHS109SSS03
30" Built−In Microwave
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBHS109SSS0330" Built−In Microwave
6 diagrams134 parts

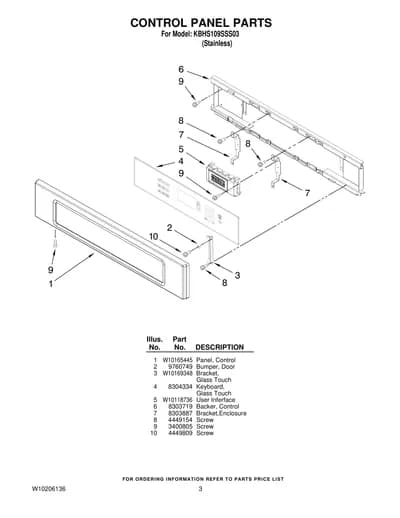

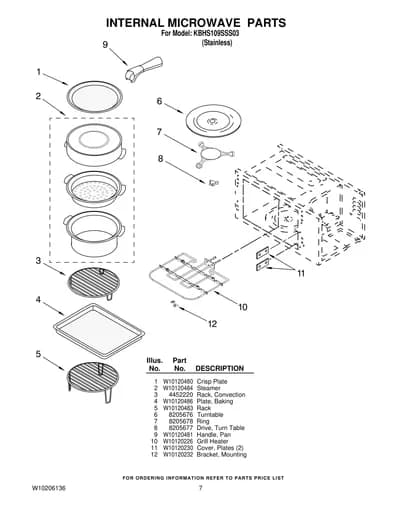

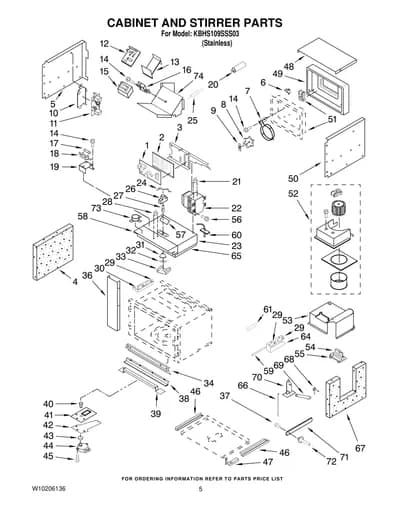

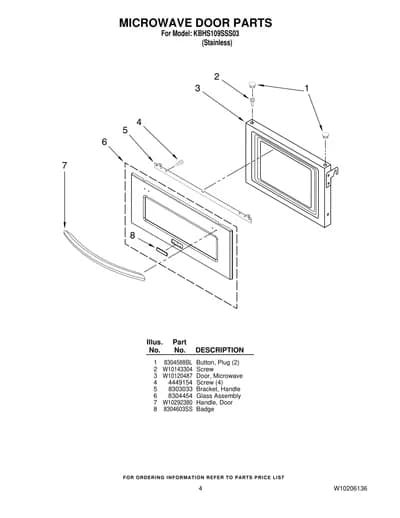

Parts Sections (6)
Diagram

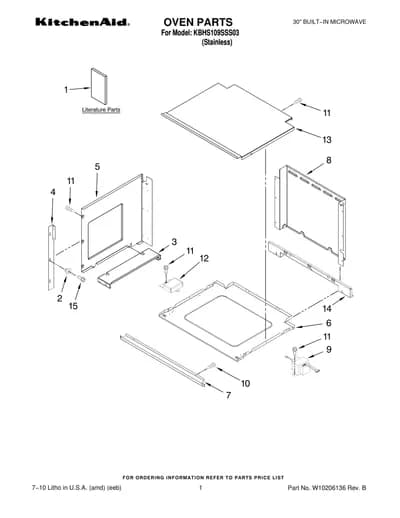

OVEN PARTS
Parts in OVEN PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8304424 Installation Instructions | - |
| 1 | – | W10162181 Use & Care Guide Tech Sheet | - |
| 1 | – | W10220960 English | - |
| 1 | – | W10220961 French | - |
| 1 | – | 8304375 Easy Set Guide Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | WP4448444replaces 4448444 Grommet, Mounting Rail | $4.32 Parts Dr |
| 3 | – | 8304569 Support, Microwave Module | - |
| 4 | – | 8304621BL Rail, Mounting Side — Right | - |
| 4 | – | 8304622BL Rail, Mounting Side — Left | - |
| 5 |  | Side, Chassis — Right | - |
| 5 | – | 8303539 Side, Chassis — Left | - |
| 6 | – | 8304216 Base, Chassis | - |
| 7 | | Trim, Bottom | - |
| 8 | – | 8304509 Chassis, Back | - |
| 9 | | Transformer, Microwave UI | - |
| 10 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 11 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 12 |  | Connector Cover | - |
| 13 | – | 8303519 Cover, Top | - |
| 14 | – | 8303537 Channel, Rear | - |
| 15 | | WP3400893replaces 3400893 Screw | - |
