Model
KitchenAid KBLS22KVSS00
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBLS22KVSS00Refrigerator
8 diagrams194 parts

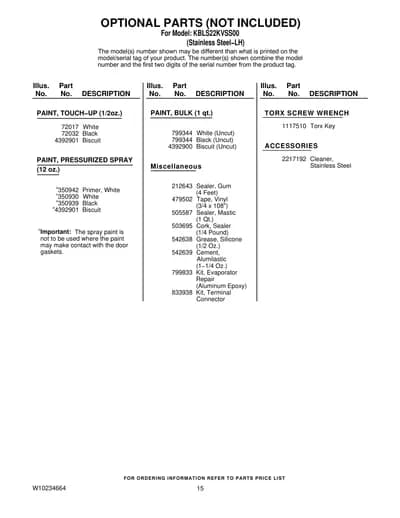

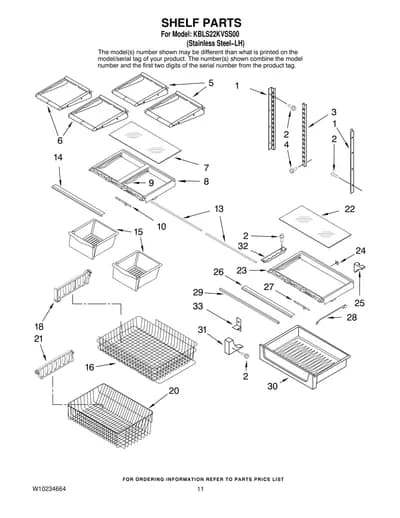

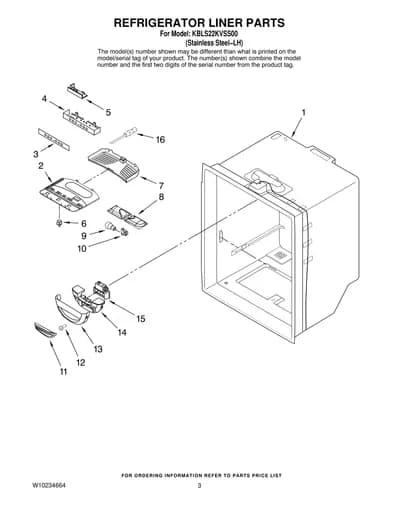

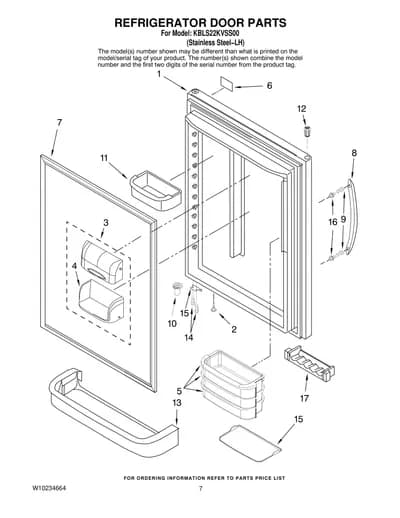

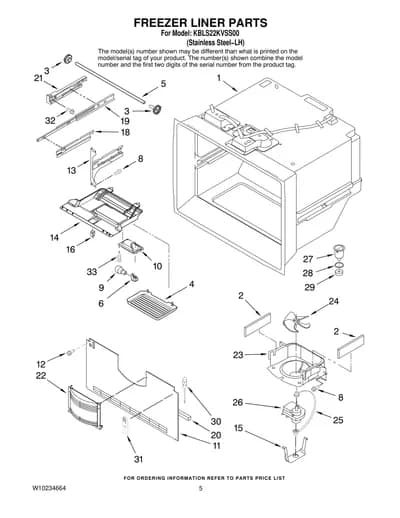

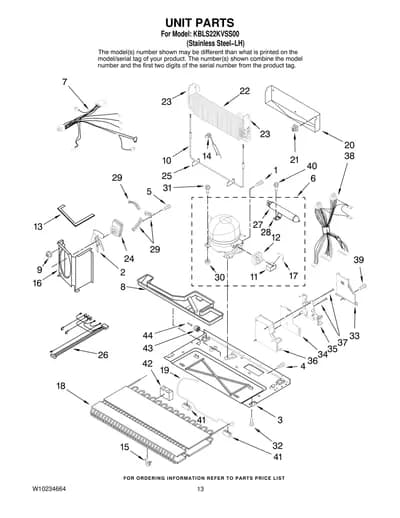

Parts Sections (8)

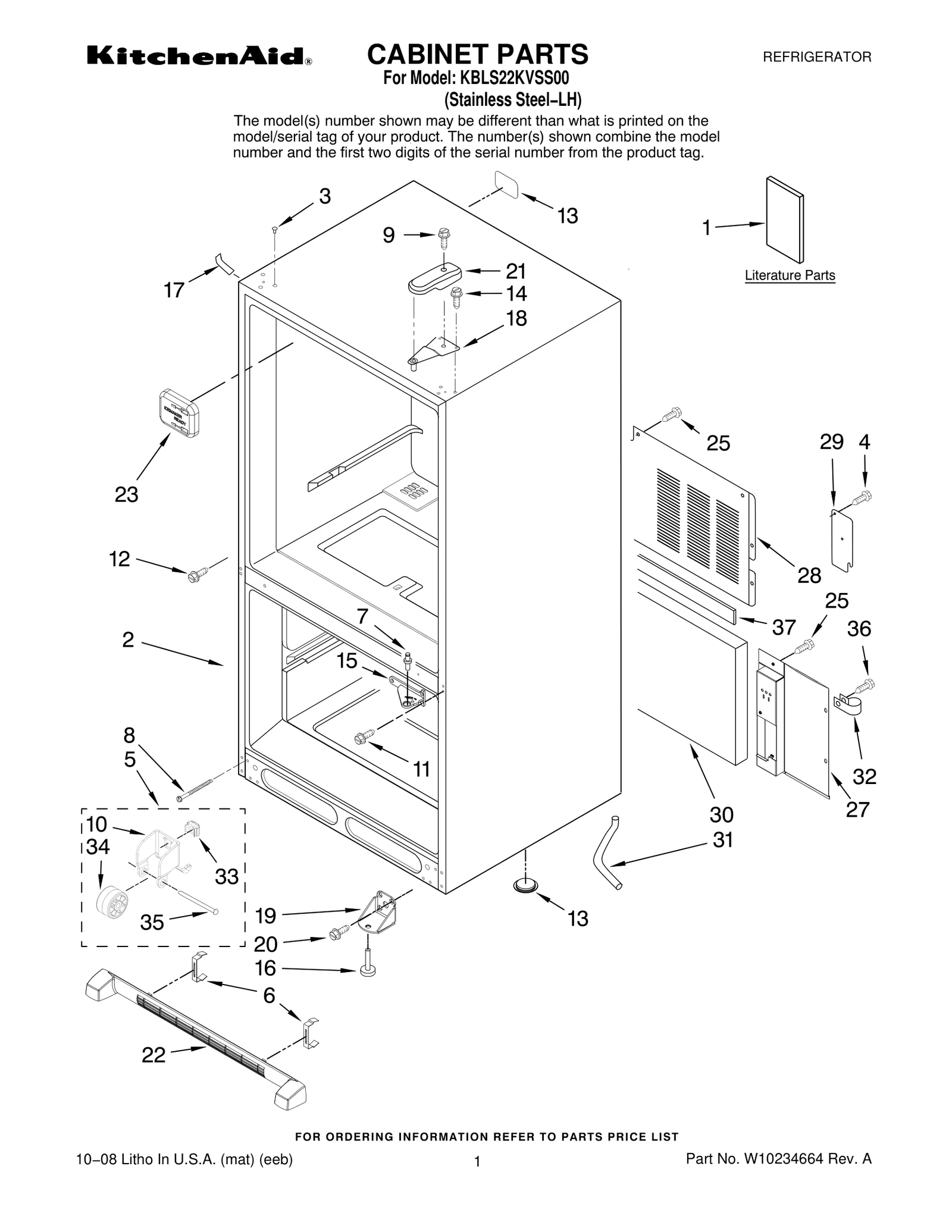

Diagram
CABINET PARTS
Parts in CABINET PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137649 Use & Care Guide | - |
| 1 | – | W10212714 Energy Guide | - |
| 1 | – | W10168777 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 3 |  | WP12246608replaces 67001131 Plug, Button | $3.38 Part Advantage |
| 4 |  | WP489128replaces 67006662 Screw | $5.96 Parts Dr |
| 5 | – | 12580304KVF Roller Foot Assembly | - |
| 6 | – | 12627302 Grille, Clip | - |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | 12456801Vreplaces 12456801 Bracket, Roller | $37.63 RepairClinic |
| 11 |  | WP67006380replaces 67006380 Screw | $21.46 ApplianceParts Pro |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | W11685757replaces 67005064 Label, Fill Tube | $3.95 ApplianceParts Pro |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 |  | WP12607104EDreplaces 12607104ED Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | W11177593replaces 67003868 Foot Brake (2) | $6.48 Part Advantage |
| 17 |  | Cover, Corner — Black | - |
| 18 |  | WP12566606EDreplaces 12566606ED Hinge, Top | $18.97 Parts Dr |
| 19 |  | 12906303WDreplaces W10208641 Bracket, Foot | $27.27 Parts Dr |
| 20 | | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 21 |  | Cover, Hinge | - |
| 22 |  | WPW10534162replaces 67006954 Grille Assembly — Black | $36.95 Part Advantage |
| 23 |  | WP67001098replaces 67001098 Cover, Fill Tube | $4.95 ApplianceParts Pro |
| 25 |  | Screw | $2.30 Part Advantage |
| 27 | | Cover, Water Valve | - |
| 28 | | Cover, Unit | - |
| 29 | | Plate, Cover | - |
| 30 |  | Insulation, Sound | $11.89 Parts Dr |
| 31 |  | Tube, Drain | - |
| 32 | – | W10157973 Clip, Drain Tube | - |
| 33 |  | Nut, Speed | $19.88 RepairClinic |
| 34 |  | WP10450603replaces 67005127 Roller | $2.74 Part Advantage |
| 35 | – | M1205302 Pin | - |
| 36 |  | WP33001882replaces 67006737 Screw | $27.07 ApplianceParts Pro |
| 37 | – | B5759649 Gasket | - |
