Model
KitchenAid KBMS1454SBT0
Built−In Microwave
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBMS1454SBT0Built−In Microwave
6 diagrams117 parts
Parts Sections (6)
Diagram

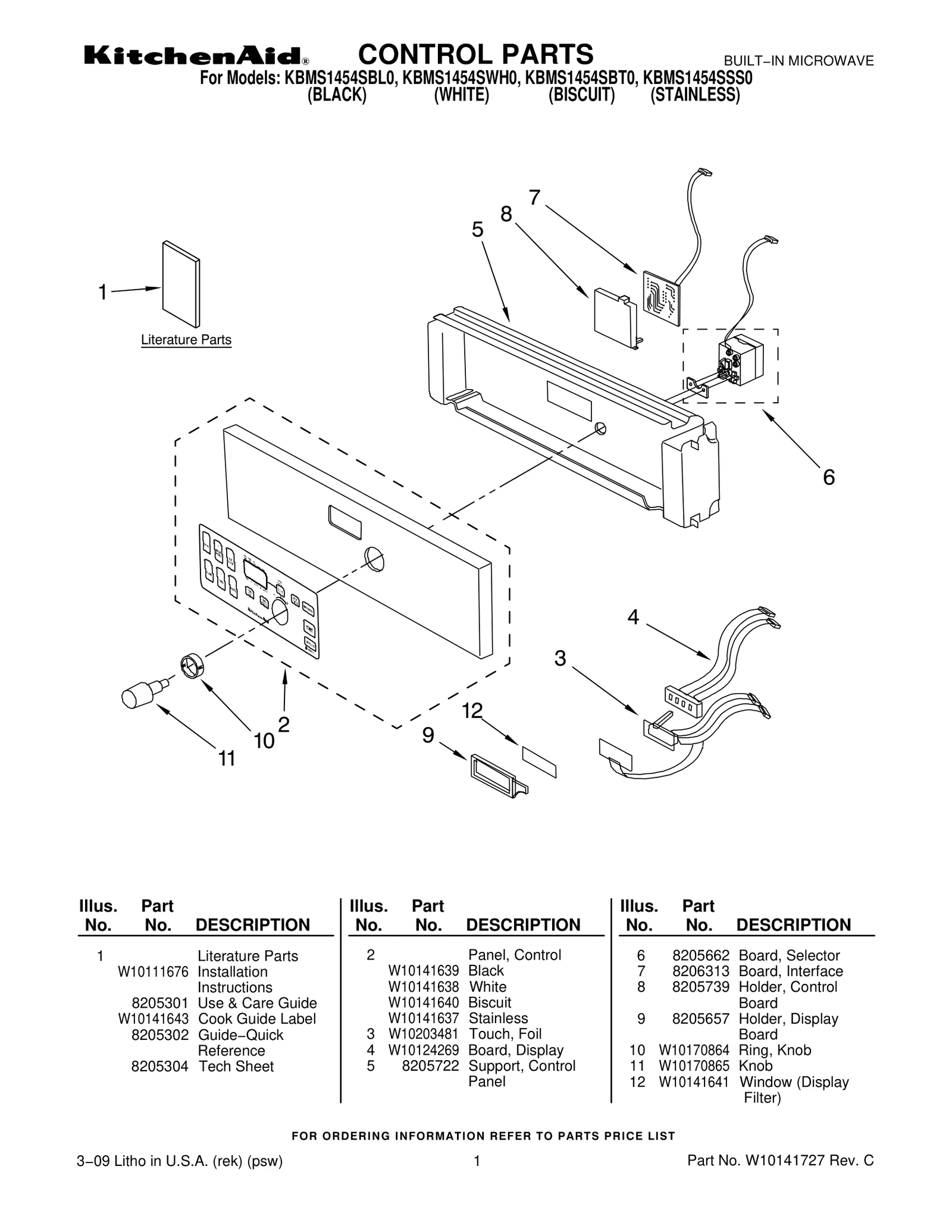

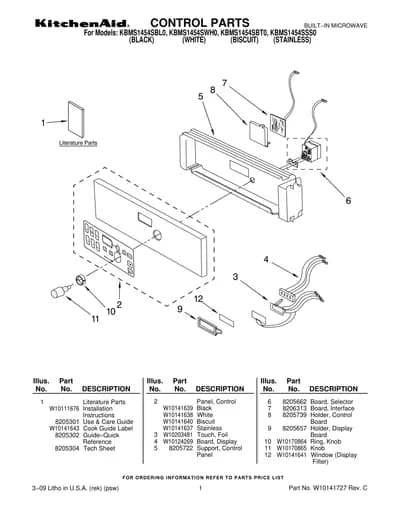

CONTROL PARTS
Parts in CONTROL PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10111676NLA Installation Instructions | Discontinued |
| 1 | – | 8205301 Use & Care Guide | - |
| 1 | | W10141643NLA Cook Guide Label | Discontinued |
| 1 | – | 8205302 Guide−Quick Reference | - |
| 1 | – | 8205304 Tech Sheet | - |
| 2 | | W10141639NLA Panel, Control — Black | Discontinued |
| 2 | | W10141638NLA Panel, Control — White | Discontinued |
| 2 | | W10141640NLA Panel, Control — Biscuit | Discontinued |
| 2 | | W10141637NLA Panel, Control — Stainless | Discontinued |
| 3 |  | WPW10203481replaces W10203481 Touch, Foil | $171.78 PartSelect |
| 4 |  | WPW10124269replaces W10124269 Board, Display | $132.20 PartSelect |
| 5 | | Support, Control Panel | - |
| 6 | | 8205662NLA Board, Selector | Discontinued |
| 7 | – | 8206313 Board, Interface | - |
| 8 | | W10884489replaces 8205739 Holder, Control Board | - |
| 9 |  | 461967750153replaces 8205657 Holder, Display Board | $30.67 ApplianceParts Pro |
| 10 |  | 461960204731replaces W10170864 Ring, Knob | $48.95 ApplianceParts Pro |
| 11 | | W10170865NLA Knob | Discontinued |
| 12 | – | W10141641 Window (Display Filter) | - |
