Model
KitchenAid KBSS361TSS00
36" Built−In Grill
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBSS361TSS0036" Built−In Grill
3 diagrams92 parts
Parts Sections (3)
Diagram

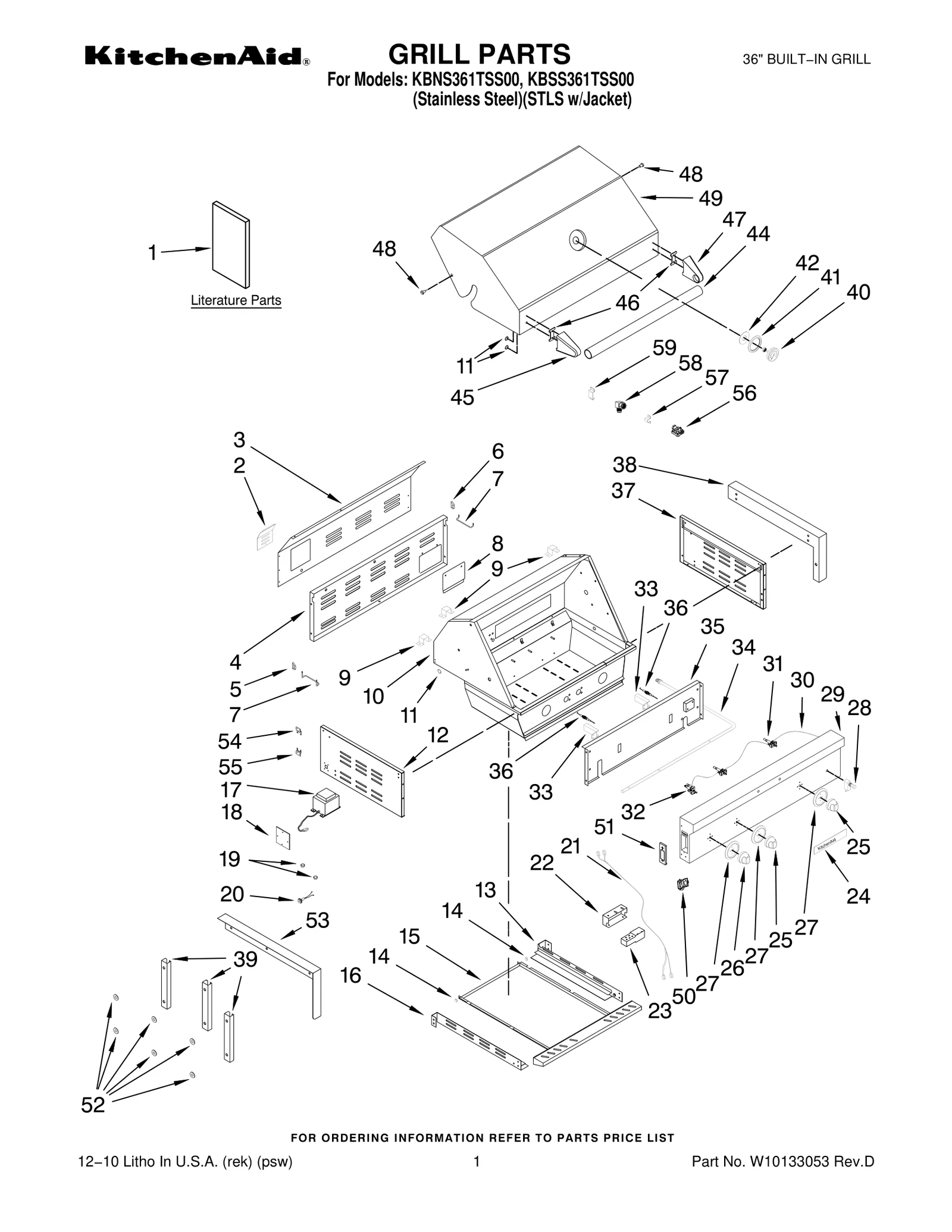

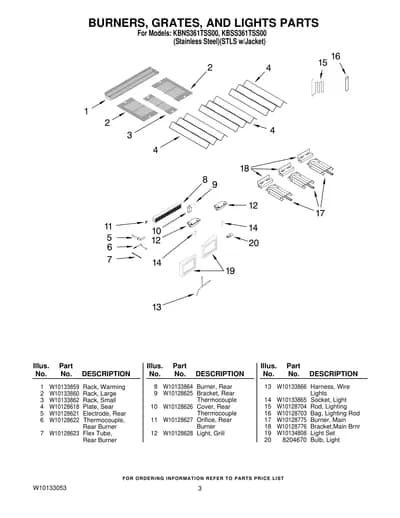

GRILL PARTS
Parts in GRILL PARTS
62 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10110724 Use & Care Guide | - |
| 1 | – | W10110730 Conversion Instr. | - |
| 2 | – | W10128619 Cover, Rear | - |
| 3 | – | W10133863 Panel, Rear | - |
| 4 | – | W10133867 Panel, Access | - |
| 5 | – | W10128634 Bracket, Panel Left | - |
| 6 | – | W10128635 Bracket, Panel Right | - |
| 7 | – | W10128636 Bracket, Warming Rack | - |
| 8 | – | W10128637 Cover, Access Panel | - |
| 9 | – | W10128638 Clip, Wire | - |
| 10 |  | Hood Assy | - |
| 11 | – | W10128640 Hole Plug | - |
| 12 | | Panel, Side Left | - |
| 13 | – | W10128644 Bracket, Grease Tray (Right) | - |
| 14 | – | W10128655 Roller, Drip Tray | - |
| 15 | – | W10133870 Drip Tray Assy | - |
| 16 | – | W10128657 Bracket, Grease Tray (Left) | - |
| 17 | | W10281396NLA Transformer | Discontinued |
| 18 | – | W10132690 Cover, Wire Terminal | - |
| 19 | – | W10132691 Plastic (#SB22) | - |
| 19 | – | W10132692 Plastic (#SB19) | - |
| 20 | | Outlet,Transformer | - |
| 21 |  | Harness, Wire Light | $24.47 RepairClinic |
| 22 | – | W10128664 Cover, Igniter | - |
| 23 | | Igniter | Discontinued |
| 24 | | Nameplate | - |
| 25 |  | Knob, Main Burner | $44.73 RepairClinic |
| 26 |  | WPW10128756replaces W10128756 Knob, Rear Burner | - |
| 27 | | Bezel, Knob | - |
| 28 | | Switch, Light | - |
| 29 | – | W10136433 Panel, Control | - |
| 30 | | W10134817NLA Harness, Wire Control | Discontinued |
| 31 |  | WPW10128764replaces W10128764 Valve, Main Brnr | - |
| 32 |  | Valve, Rear Brnr | Discontinued |
| 33 | | Igniter, Main Gas | - |
| 34 | – | W10133871 Manifold | - |
| 35 | – | W10133873 Baffle, Front | - |
| 36 |  | WPW10128770replaces W10128770 Electrode — Main Burner | $8.84 Part Advantage |
| 36 |  | Electrode — Main Burner | - |
| 36 | – | W10133875 Electrode — Main Burner | - |
| 37 | | Side Panel, Right | - |
| 38 | | Flange (RT) | - |
| 39 | | Bracket, Flange | - |
| 40 | | W10128777NLA Thermometer | Discontinued |
| 41 | | W10128779NLA Bezel, Thermometer | Discontinued |
| 42 | – | W10140257 Insulator, Thermometer(Small) | - |
| 44 | | Handle, Hood | - |
| 45 | – | W10128785 Endcap, Handle | - |
| 46 | – | W10128786 Spacer, Handle | - |
| 47 | – | W10128787 Endcap, Handle | - |
| 48 | | Hinge, Lid | - |
| 49 | – | W10133878 Hood | - |
| 50 | | Box, Battery | - |
| 51 | | Cover, Battery Box | - |
| 52 | – | W10132698 Washer | - |
| 53 | | Flange (LF) | - |
| 54 | | Brkt,Trnsfrmr(Top) | - |
| 55 | | Brkt,Trnsfrmr(Btm) | - |
| 56 |  | WPW10132702replaces W10132702 Regulator (NG) | $244.14 RepairClinic |
| 57 | – | W10128747 Fixture,Manifold | - |
| 58 | | Connector (Brass) | - |
| 59 | – | W10128749 Base, Manifold Fixture | - |
