Model
KitchenAid KCMS1555SSS0
Microwave Oven 1.5 Cubic Foot
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KCMS1555SSS0Microwave Oven 1.5 Cubic Foot
6 diagrams74 parts
Parts Sections (6)
Diagram

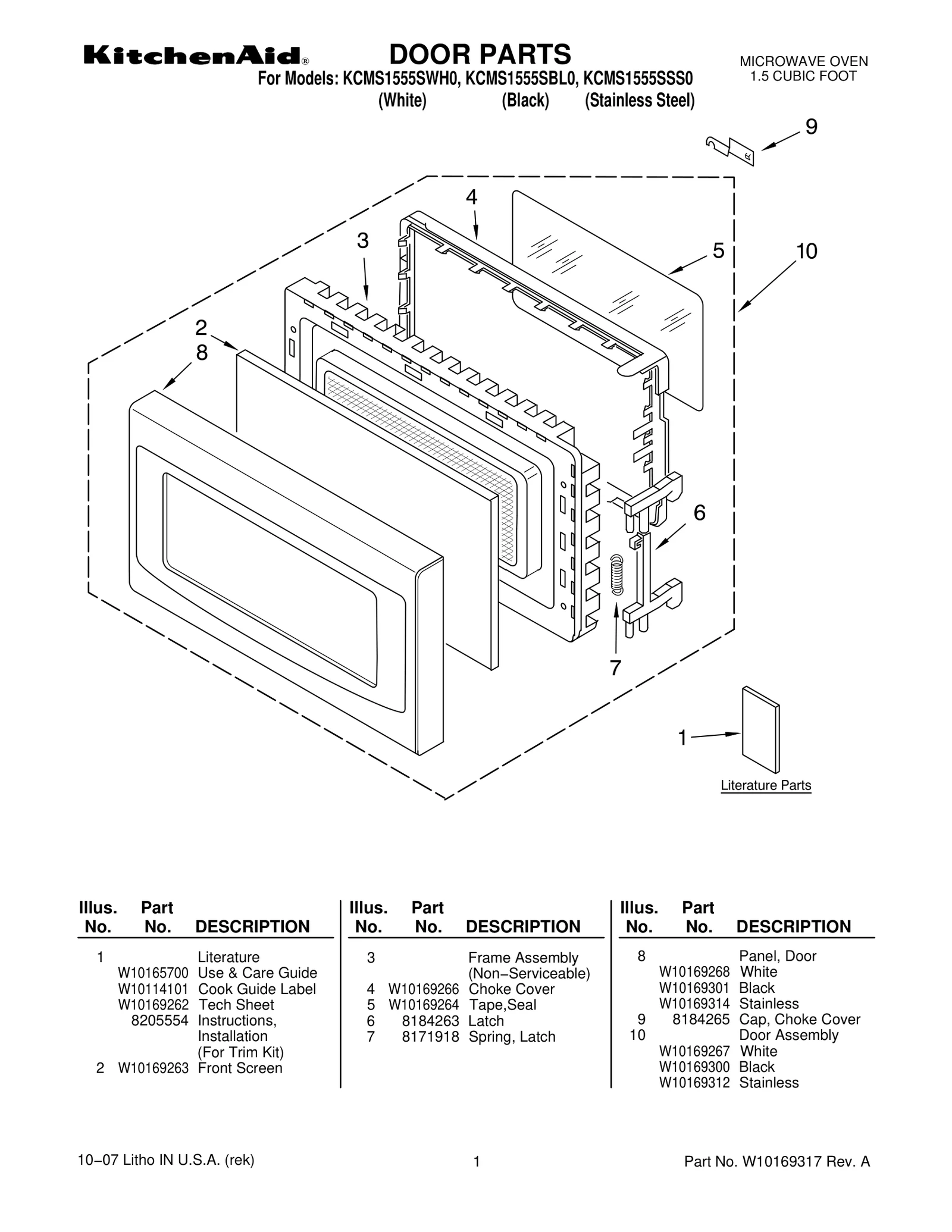

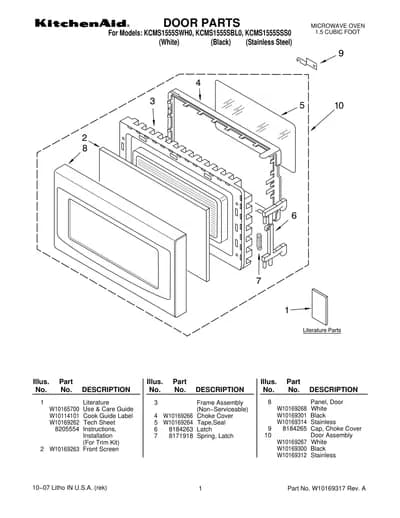

DOOR PARTS
Parts in DOOR PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10165700 Use & Care Guide | - |
| 1 | – | W10114101 Cook Guide Label | - |
| 1 | – | W10169262 Tech Sheet | - |
| 1 | – | 8205554 Instructions, | - |
| 2 | – | W10169263 Front Screen | - |
| 3 | – | N/S Frame Assembly | - |
| 4 |  | Choke Cover | - |
| 5 | | W10169264NLA Tape,Seal | Discontinued |
| 6 | | 8184263NLA Latch | Discontinued |
| 7 |  | 8171918NLA Spring, Latch | Discontinued |
| 8 | – | W10169268 Panel, Door — White | - |
| 8 | | Panel, Door — Black | - |
| 8 | | W10169314NLA Panel, Door — Stainless | Discontinued |
| 9 | | Cap, Choke Cover | - |
| 10 | | W10169267NLA Door Assembly — White | Discontinued |
| 10 | | Door Assembly — Black | - |
| 10 | | W10169312NLA Door Assembly — Stainless | Discontinued |
