Model
KitchenAid KCMS2055SSS0
Microwave Oven 2.0 Cubic Foot
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KCMS2055SSS0Microwave Oven 2.0 Cubic Foot
6 diagrams59 parts
Parts Sections (6)
Diagram

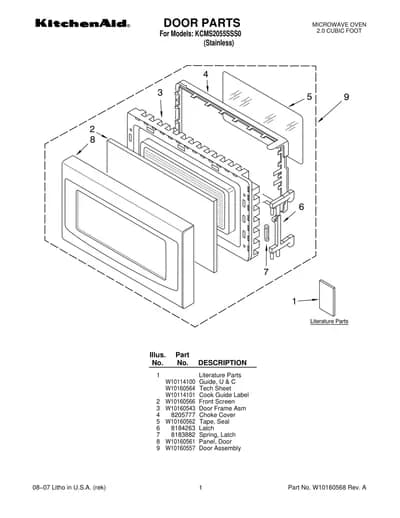

DOOR PARTS
Parts in DOOR PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10114100 Guide, U & C | - |
| 1 | – | W10160564 Tech Sheet | - |
| 1 | – | W10114101 Cook Guide Label | - |
| 2 |  | Front Screen | - |
| 3 | | Door Frame Asm | - |
| 4 | | 8205777NLA Choke Cover | Discontinued |
| 5 | | W10160562NLA Tape, Seal | Discontinued |
| 6 | | 8184263NLA Latch | Discontinued |
| 7 | | 8183882NLA Spring, Latch | Discontinued |
| 8 | | W10160561NLA Panel, Door | Discontinued |
| 9 | | Door Assembly | - |
