Model
KitchenAid KDDO24RVX00
Double Drawer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KDDO24RVX00Double Drawer
5 diagrams129 parts
Parts Sections (5)

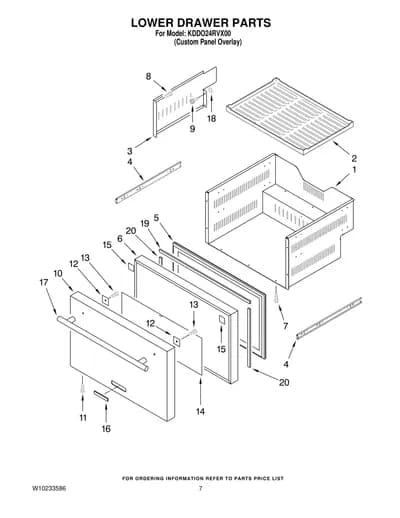

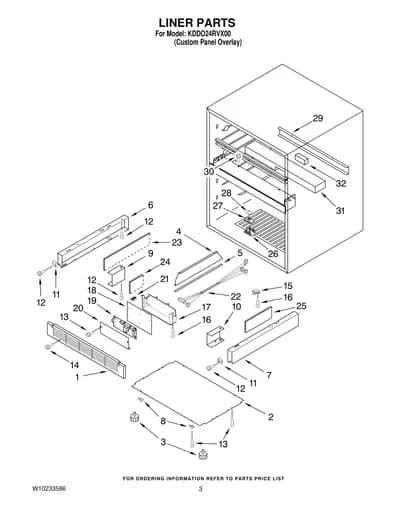

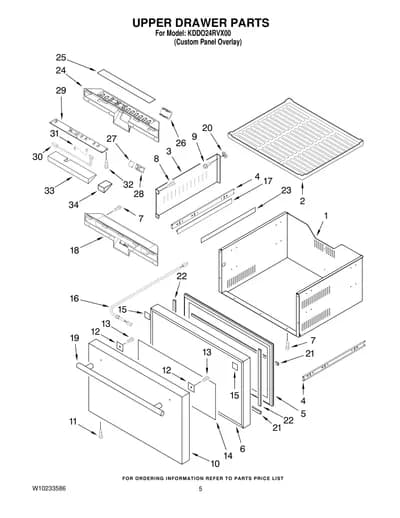

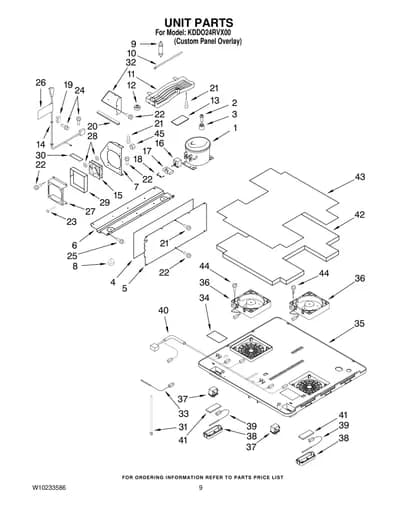

Diagram

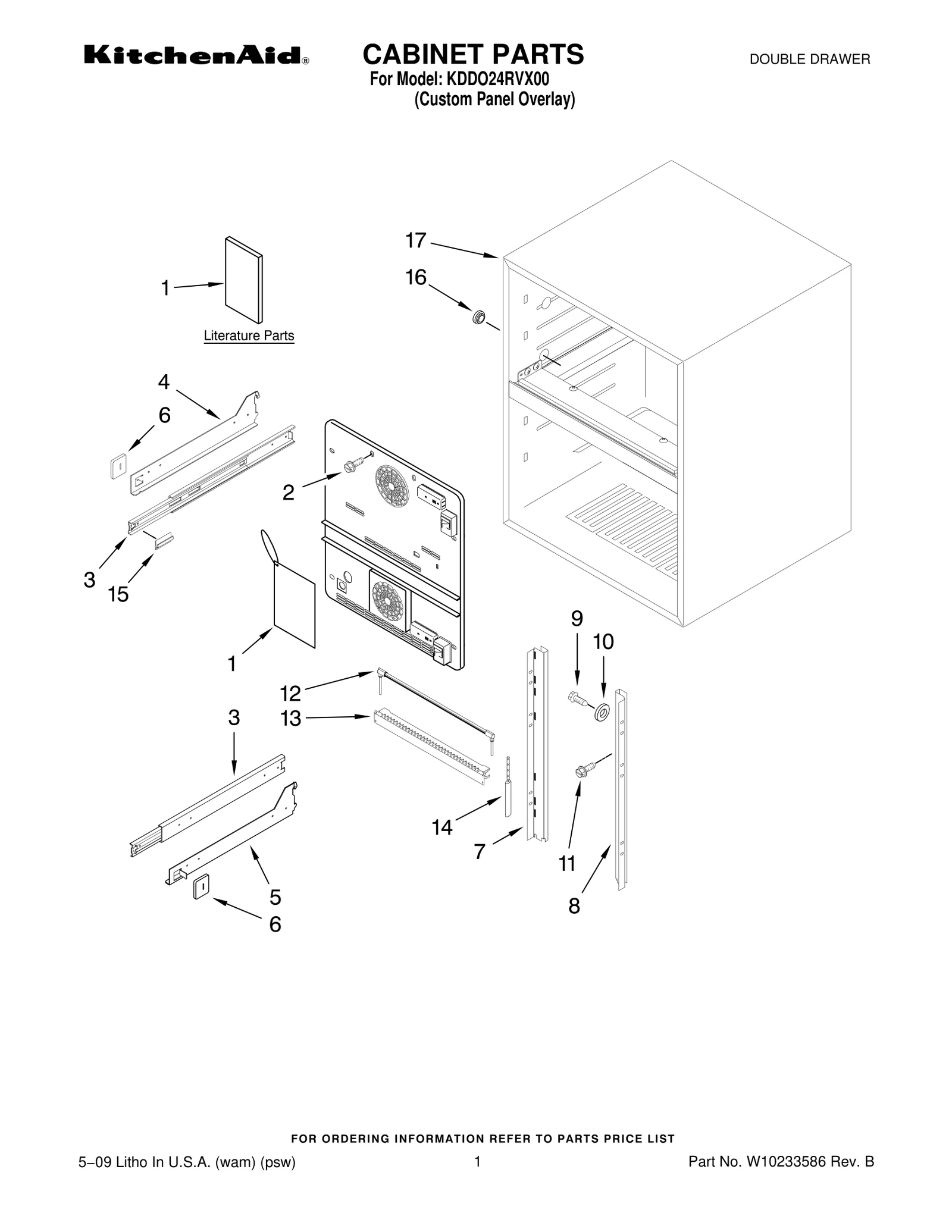

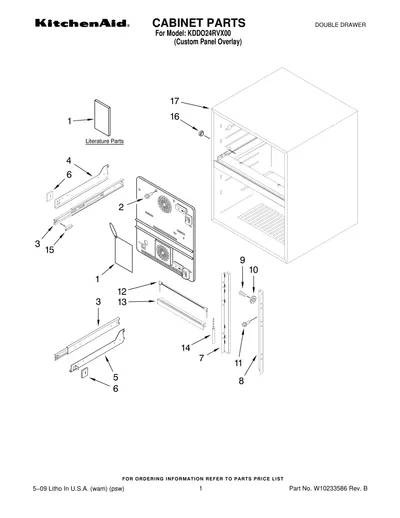

CABINET PARTS
Parts in CABINET PARTS
20 parts

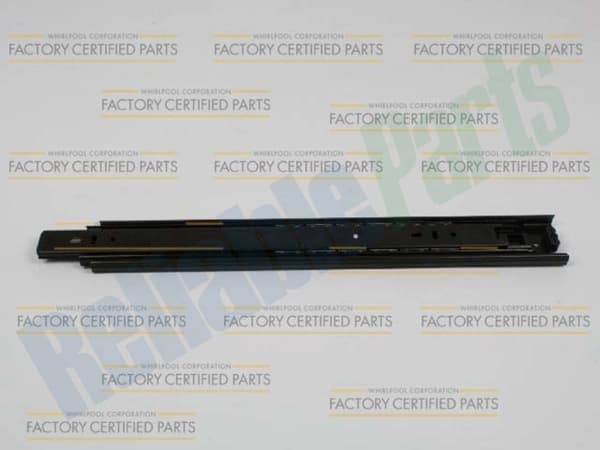

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10130022 Installation Instructions | - |
| 1 | – | W10130023 Use & Care Guide | - |
| 1 | – | W10233837 Service & Wiring Sheet | - |
| 1 | – | W10233839 Energy Guide | - |
| 2 |  | Screw | - |
| 3 |  | WPW10233777replaces W10233777 Rail Assy. | $116.31 Parts Dr |
| 4 | | Support Shelf, LH | - |
| 5 | | Support Shelf, RH | - |
| 6 | – | W10233780 Support Rubber A | - |
| 7 | – | 4344748 Ladder, LH | - |
| 8 | – | 4344749 Ladder, RH | - |
| 9 | – | 4344794 Screw | - |
| 10 | – | 4344795 Washer | - |
| 11 | – | W10162986 Screw & Washer | - |
| 12 | | W11506487replaces W10204610 Defrost Heater | $45.62 Part Advantage |
| 13 |  | Heat Shield | - |
| 14 |  | Thermal Fuse Assy. | - |
| 15 | | Lead Wire Support | - |
| 16 | – | W10204632 Liner Bushing | - |
| 17 | – | N/S Cabinet (Not a Servicable Part) | - |
