Model
KitchenAid KEBK171SSS03
27" Built−In Electric Single Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KEBK171SSS0327" Built−In Electric Single Oven
6 diagrams106 parts
Parts Sections (6)

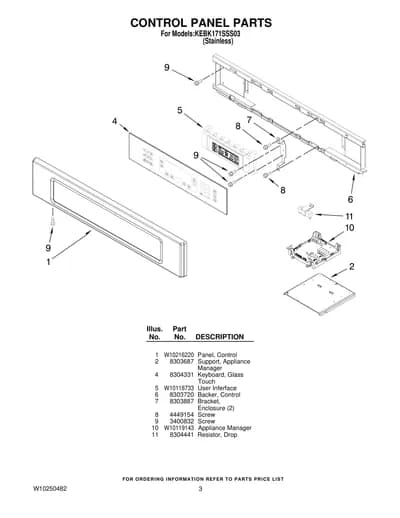

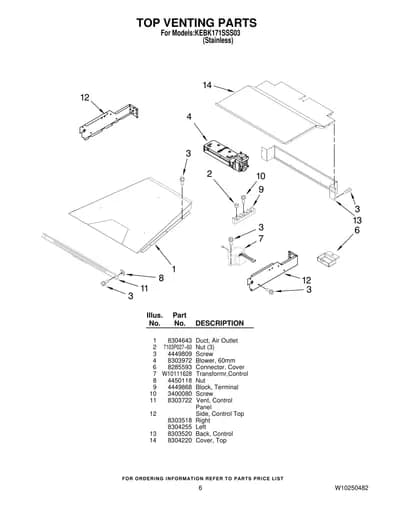

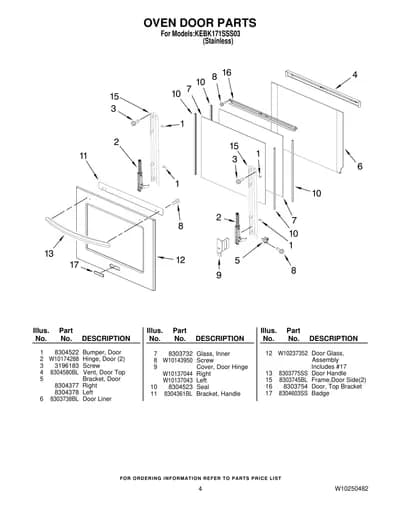

Diagram

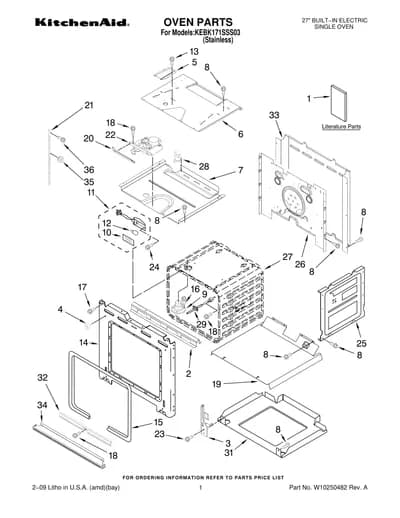

OVEN PARTS
Parts in OVEN PARTS
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8304336 Installation Instructions — Oven | - |
| 1 | – | 8304571 Installation Instructions — Undercounter | - |
| 1 | – | W10162179 Installation Instructions — Use & Care Guide | - |
| 1 | – | W10220952 Installation Instructions — English | - |
| 1 | – | W10220953 Installation Instructions — French | - |
| 1 | – | 8304335 Installation Instructions — Easy Set Guide | - |
| 1 | – | 9762761 Installation Instructions — English | - |
| 1 | – | W10065852 Installation Instructions — French | - |
| 2 |  | W10153090NLA Bracket, Base | Discontinued |
| 3 |  | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage |
| 3 |  | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage |
| 4 |  | Bumper, Door (2) | $4.44 Part Advantage |
| 5 | – | 8303829 Exhaust,Vent Slope | - |
| 6 | – | W10181198 Divider, Vent Center | - |
| 7 | – | W10204469 Top Chassis | - |
| 8 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 9 |  | W10861715replaces 4452158 Tube, Vent | - |
| 10 |  | Lens, Light | $29.22 Parts Dr |
| 11 |  | WPW10307114replaces W10009940 Oven Light Assembly | $53.95 Parts Dr |
| 12 |  | WPW10169757replaces W10169757 Bulb, Light | $19.66 Amazon |
| 13 |  | WP3400832replaces 3400832 Screw (2) | $2.30 Part Advantage |
| 14 | | Frame, Front | - |
| 15 | | Gasket, Door | - |
| 16 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 17 |  | WPW10650400replaces 4449040 Screw | - |
| 18 |  | WP4449154replaces 4449154 Screw | $3.72 Parts Dr |
| 19 | | Support, Insulation | - |
| 20 | | W10169348NLA Thermostat, Bracket | Discontinued |
| 21 | | Mounting Rail,Side — Right | - |
| 21 | | 8303676BLNLA Mounting Rail,Side — Left | Discontinued |
| 22 |  | W11029221replaces W10195935 Latch, Mortorized | $111.84 Part Advantage |
| 23 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 24 |  | Screw | $16.95 ApplianceParts Pro |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | – | 8304304 Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 28 |  | WP8304452replaces 8304452 Thermal Fuse 105C | $63.22 Amazon |
| 29 |  | WPW10131825replaces W10131825 Sensor | $50.18 Part Advantage |
| 31 | – | 8303772 Base, Chassis | - |
| 32 | | 8304478NLA Retainer, Gasket | Discontinued |
| 33 | | Cover, Back | - |
| 34 | | W10216231NLA Trim, Bottom Vent | Discontinued |
| 35 |  | WP4448444replaces 4448444 Grommet, Mounting Rail | $4.32 Parts Dr |
| 36 | | WP3400893replaces 3400893 Screw (12) NOT ILLUSTRATED INSULATION | - |
| 36 | – | 8303966 Insulation, Wrap | - |
| 36 | – | 8303968 Insulation, Back | - |
