Model
KitchenAid KEBK206SSS02
30" Built−In Electric Double Oven Thermal Convection
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KEBK206SSS0230" Built−In Electric Double Oven Thermal Convection
6 diagrams109 parts

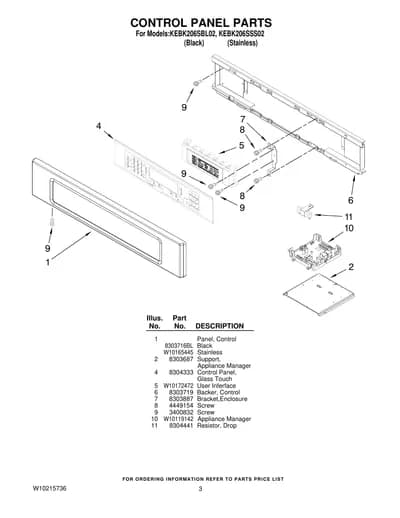

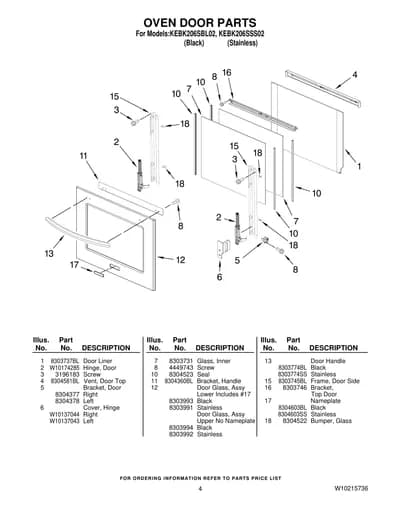

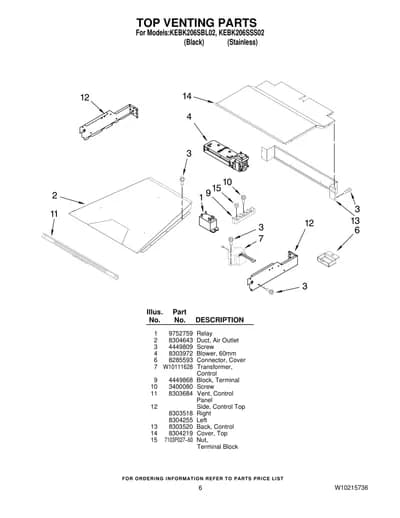

Parts Sections (6)
Diagram

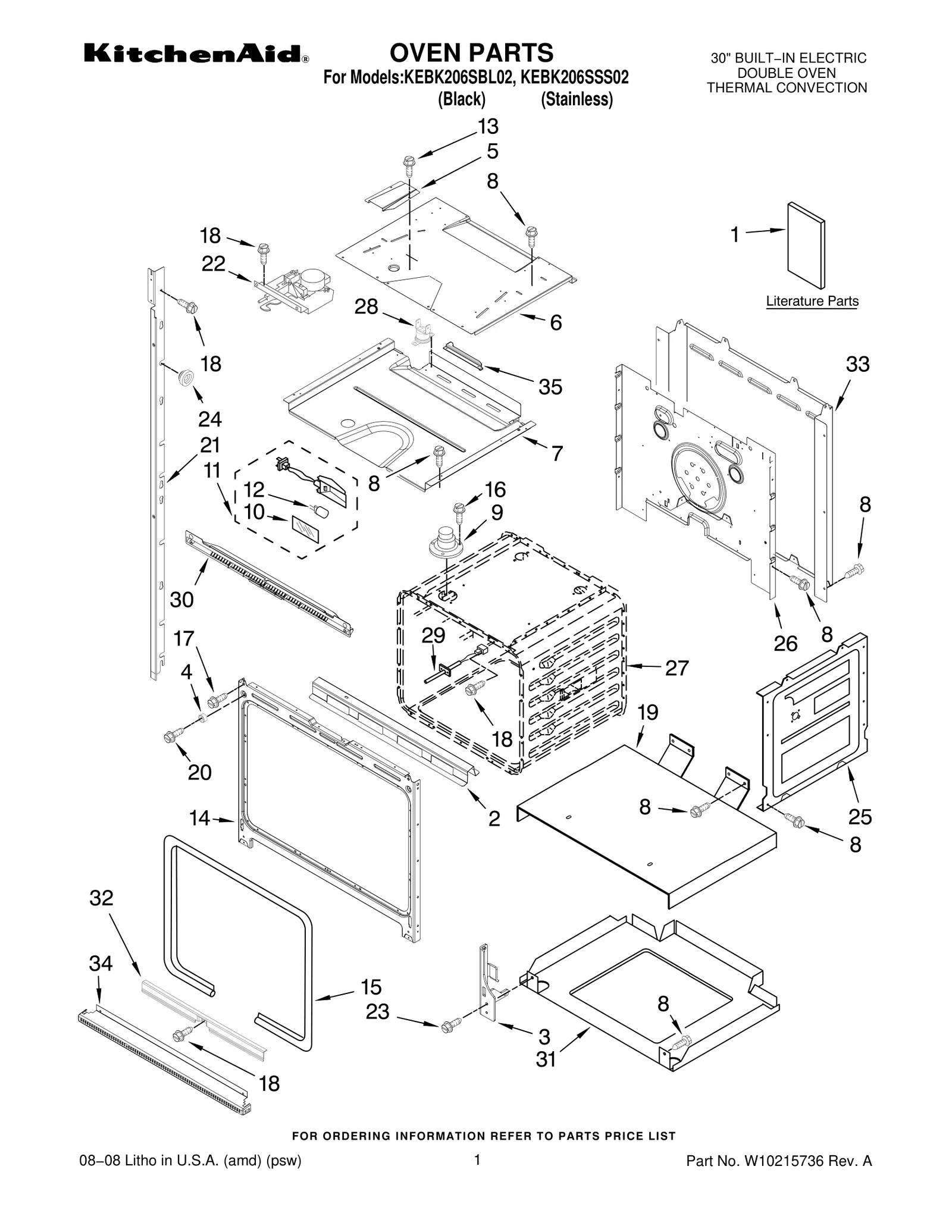

OVEN PARTS
Parts in OVEN PARTS
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8304336 Installation Instructions | - |
| 1 | – | W10162179 Use & Care Guide Tech Sheet | - |
| 1 | – | W10185203 English | - |
| 1 | – | W10185204 French | - |
| 1 | – | 8304335 Easy Set Guide Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | W10153090NLA Bracket, Base | Discontinued |
| 3 |  | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage |
| 3 |  | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage |
| 4 |  | Bumper, Door | $4.44 Part Advantage |
| 5 | – | 8303829 Exhaust,Vent Slope | - |
| 6 | – | W10181196 Divider, Center Vent | - |
| 7 | | Top Chassis | - |
| 8 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 9 |  | W10861715replaces 4452158 Tube, Vent | - |
| 10 |  | Lens, Light | $29.22 Parts Dr |
| 11 |  | WPW10307114replaces W10009940 Assembly, Oven Light | $53.95 Parts Dr |
| 12 |  | WPW10169757replaces W10169757 Bulb, Light | $19.66 Amazon |
| 13 |  | WP3400832replaces 3400832 Screw (2) | $2.30 Part Advantage |
| 14 | | Frame, Front | - |
| 15 |  | WP8304493replaces 8304493 Gasket, Door | $61.22 Part Advantage |
| 16 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 17 |  | WPW10650400replaces 4449040 Screw | - |
| 18 |  | WP4449154replaces 4449154 Screw | $3.72 Parts Dr |
| 19 | – | 4451478 Support, Insulation | - |
| 20 |  | WP4450038replaces 4450038 Screw (2) | $2.30 Part Advantage |
| 21 | | 8303677BLNLA Side,Mounting Rail — Right | Discontinued |
| 21 | | 8303678BLNLA Side,Mounting Rail — Left | Discontinued |
| 22 |  | W11029221replaces 8303692 Latch, Mortorized | $111.84 Part Advantage |
| 23 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 24 |  | WP4448444replaces 4448444 Grommet, Mounting Rail | $4.32 Parts Dr |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | | Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 28 |  | WP8304452replaces 8304452 Thermal Fuse | $63.22 Amazon |
| 29 |  | WPW10131825replaces W10131825 Sensor | $50.18 Part Advantage |
| 30 | | 8303685NLA Vent, Center | Discontinued |
| 31 | – | 8303516 Base, Chassis | - |
| 32 | | 8304478NLA Retainer, Gasket | Discontinued |
| 33 | | Cover, Back | - |
| 34 | | 8303705BLNLA Trim, Bottom Vent — Black | Discontinued |
| 34 | | W10165443NLA Trim, Bottom Vent — Stainless | Discontinued |
| 35 | | W10169348NLA Bracket, Thermostat NOT ILLUSTRATED INSULATION | Discontinued |
| 35 | | Insulation, Wrap | - |
| 35 | – | 8303967 Insulation, Back | - |
