KitchenAid KEBU208SSS00
30" Built−In Electric Double Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KEBU208SSS0030" Built−In Electric Double Oven
6 diagrams159 parts

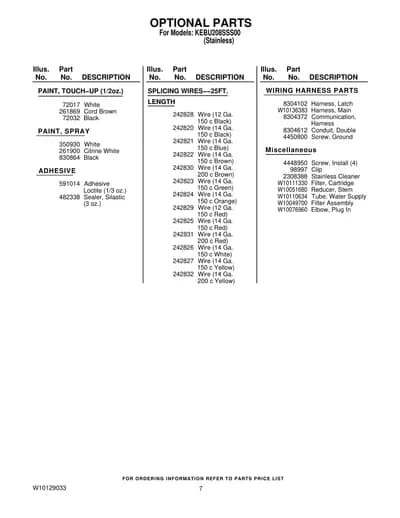

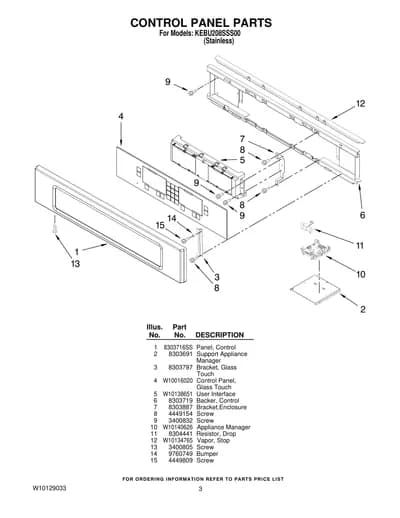

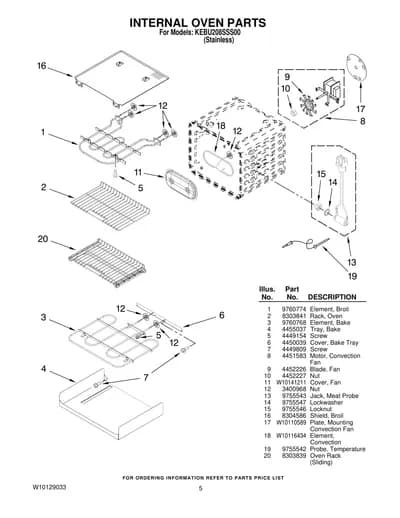

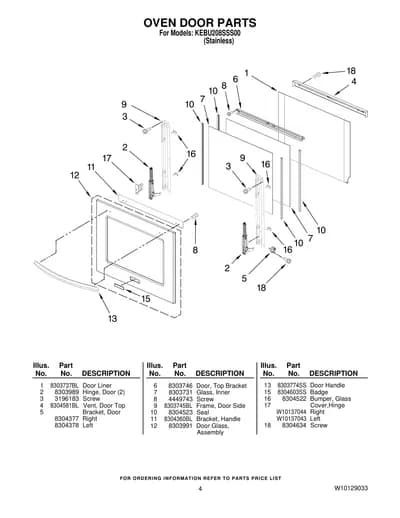

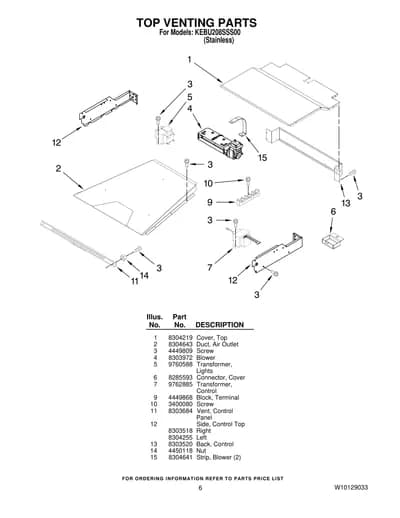

Parts Sections (6)
Diagram

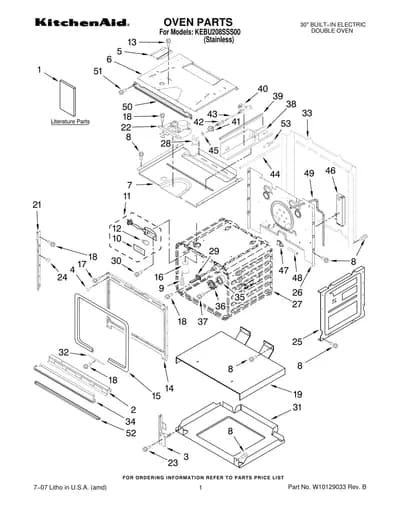

OVEN PARTS
Parts in OVEN PARTS
63 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8304535 Installation Instructions | - |
| 1 | – | 8304531 Use & Care Guide Tech Sheet | - |
| 1 | – | 8304551 English | - |
| 1 | – | 8304552 French | - |
| 1 | – | 8304533 Easy Set Guide Safer Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 | – | 8304420 Bracket, Base | - |
| 3 |  | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage |
| 3 |  | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage |

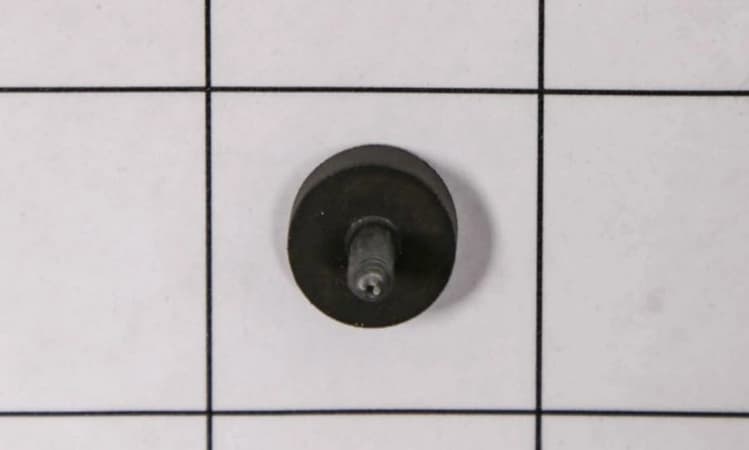

| 4 |  | Bumper, Door (2) | $4.44 Part Advantage |
| 5 | – | 8303829 Exhaust,Vent Slope | - |
| 6 | – | 8304618 Divider, Vent | - |
| 7 | | 8303511NLA Top Chassis | Discontinued |

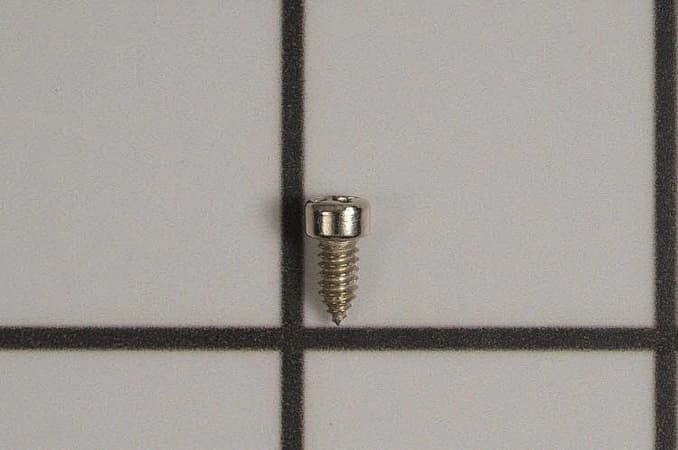

| 8 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 9 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 10 | | 4452163NLA Lens, Light | Discontinued |
| 11 |  | WP4448972replaces 4448972 Oven Light, Assembly | $69.91 PartSelect |
| 12 |  | WP4452164replaces 4452164 Bulb, Light | $34.07 Part Advantage |
| 13 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 14 | | 8304627NLA Frame, Front | Discontinued |
| 15 |  | WP8304493replaces 8304493 Gasket, Door | $61.22 Part Advantage |

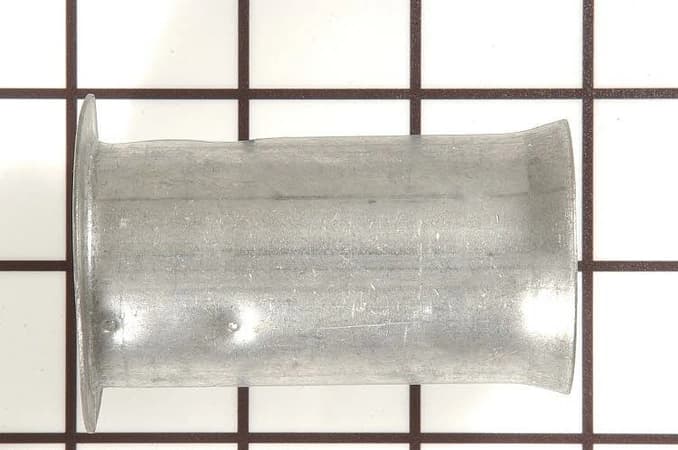

| 16 |  | W10861715replaces 4452158 Tube, Vent | - |
| 17 |  | WPW10650400replaces 4449040 Screw | - |
| 18 | | WP3400893replaces 3400893 Screw | - |
| 19 | – | 4451478 Support, Insulation | - |
| 21 | | 8303677BLNLA Mounting Rail,Side — Right | Discontinued |
| 21 | | 8303678BLNLA Mounting Rail,Side — Left | Discontinued |
| 22 |  | W11029221replaces 8303692 Latch, Mortorized | $111.84 Part Advantage |
| 23 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 24 |  | WP4448444replaces 4448444 Mounting Grommet, Rail (6) | $4.32 Parts Dr |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | – | W10132674 Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |

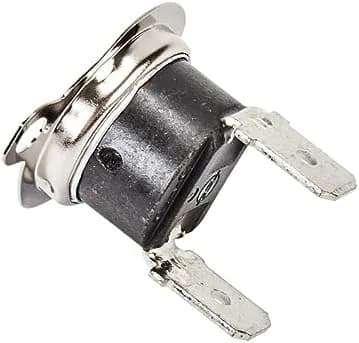

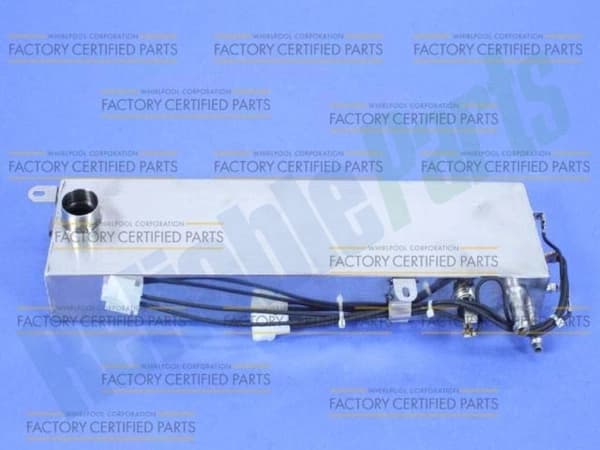

| 28 |  | WP8304452replaces 8304452 Thermal Fuse | $63.22 Amazon |
| 29 |  | WPW10131825replaces 4455636 Sensor | $50.18 Part Advantage |
| 30 |  | Screw | $16.95 ApplianceParts Pro |
| 31 | – | 8303516 Base, Chassis | - |
| 32 | | Retainer, Gasket | Discontinued |
| 33 | | Cover, Back | - |
| 34 | | Trim, Bottom Vent | - |
| 35 | | Orifice, Boiler Slip Fit | - |
| 36 | – | 8304495BU Cover, Boiler Orifice | - |
| 37 |  | WP4449154replaces 4449154 Screw | $3.72 Parts Dr |
| 38 | – | 8304599 Enclosure | - |
| 39 | – | W10077010 Gasket, Enclosure | - |
| 40 |  | Valve, Solenoid | - |
| 41 |  | WPW10076760replaces W10076760 Sensor, Conductivity Slip Fit | $94.23 ApplianceParts Pro |
| 42 |  | WP2314271replaces 2314271 Valve, Check (2) | $41.52 Part Advantage |
| 43 | | Tubing, Check Valve (2) | - |
| 44 | – | W10051580 Lower, Clear | - |
| 44 | – | W10119541 Upper, Yellow | - |
| 45 |  | WP489503replaces 9761146 Clamp, Crimp (6) | $6.21 Parts Dr |
| 46 |  | 8186352replaces 9758598 Boiler Assembly (2) | - |
| 47 |  | W10194453replaces W10118757 Switch, Pressure (2) | - |
| 48 | | WPW10076930replaces W10076930 Hose (2) | - |
| 49 | – | W10142627 Tubing | - |
| 50 | | W10133473NLA Center, Vent | Discontinued |
| 51 |  | WP4450038replaces 4450038 Screw | $2.30 Part Advantage |
| 52 | | Basin, Bottom Vent | - |
| 53 | – | W10076950 Stem, Tube to Clear Hose NOT ILLUSTRATED INSULATION | - |
| 53 | | Insulation, Wrap | - |
| 53 | | Insulation, Back | - |
