KitchenAid KECC056RBL04
15" Electric Ceran 2 Burner Cooktop
Parts Sections (2)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KECC056RBL0415" Electric Ceran 2 Burner Cooktop
2 diagrams33 parts
Parts Sections (2)
Diagram

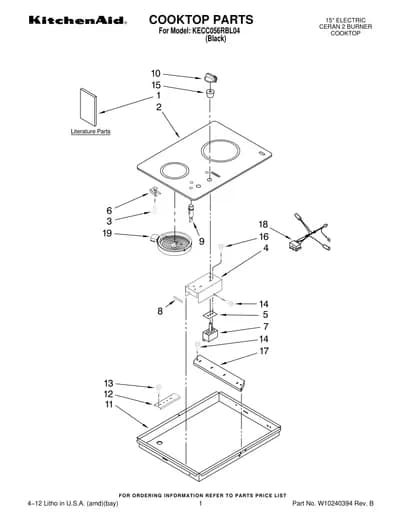

COOKTOP PARTS

Parts in COOKTOP PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | 8286066NLA Installation Instructions | Discontinued | |
| 1 | – | 3192609 Wiring Diagram | - |
| 1 | – | W10162162 Use & Care Guide Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 | ![]() | W10665724replaces W10487934 Cooktop, Glass | $265.82 Part Advantage |
| 3 | WP486754replaces 246119 Screw | $5.95 ApplianceParts Pro | |
| 4 | Bracket, Switch Mounting | - | |
| 5 | ![]() | Seal, Switch Cover | $27.77 Part Advantage |
| 6 | ![]() | Spring Locator | $7.15 ApplianceParts Pro |
| 7 | WP3191049replaces 3191049 Switch, Infinite — 1200w/Front Burner | $66.87 Part Advantage | |
| 7 | WP3191050replaces 3191050 Switch, Infinite — 1800w/Rear Burner | $70.13 Part Advantage | |
| 8 | ![]() | W10491984replaces 3192439 Seal, Limiter | $6.20 Parts Dr |
| 9 | ![]() | Light, Indicator | - |
| 10 | WP9750372FFreplaces 9750372FF Knob, Control — Black | $10.08 Part Advantage | |
| 10 | WP9750372FWreplaces 9750372FW Knob, Control — White | $9.17 Part Advantage | |
| 10 | WP9750372FCreplaces 9750372FC Knob, Control — Biscuit | $4.88 Parts Dr | |
| 11 | – | 8286988 Box, Burner | - |
| 12 | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr | |
| 13 | ![]() | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 14 | WP3196557replaces 3196537 Screw | $2.30 Part Advantage | |
| 15 | ![]() | Seal, Infinite | $28.85 Part Advantage |
| 16 | – | N/S 7101P309−60 Screw | - |
| 17 | Rail, Element | - | |
| 18 | Lamp, Hot Surface Indicator | - | |
| 19 | W10823711replaces 8523698 Element, Surface — 1200W/Front Burner | $92.55 Part Advantage | |
| 19 | W10823698replaces 8523696 Element, Surface — 1800W/Rear Burner | $83.15 Part Advantage | |
| 19 | ![]() | Bracket, Support | - |
