Model
KitchenAid KECD806RSS04
30" Electric Built−In Downdraft Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KECD806RSS0430" Electric Built−In Downdraft Cooktop
3 diagrams65 parts

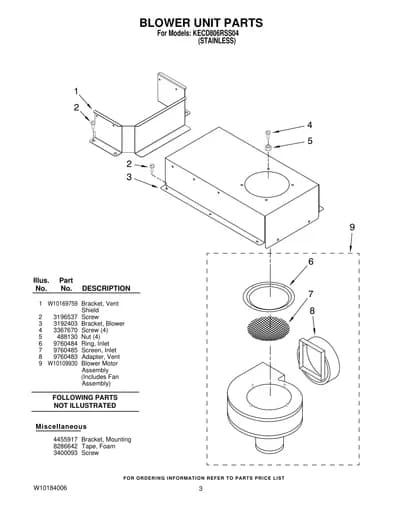

Parts Sections (3)
Diagram

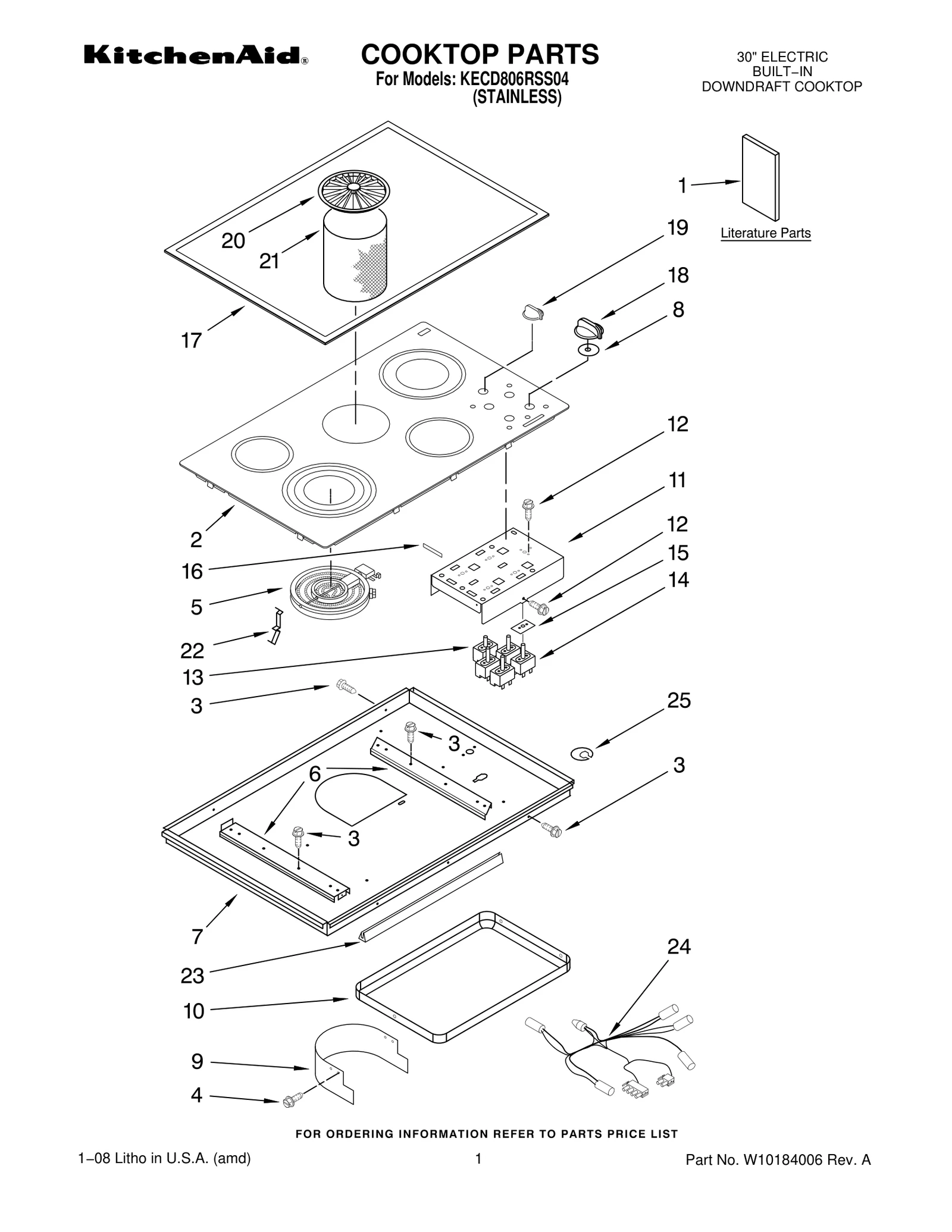

COOKTOP PARTS
Parts in COOKTOP PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286240 Installation Instructions | - |
| 1 | – | 8286427 Wiring Diagram | - |
| 1 | – | W10162163 Use & Care Guide Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | 8286948NLA Cooktop, Glass | Discontinued |
| 3 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 4 |  | WP3177991replaces 3177991 Screw | $3.74 Parts Dr |
| 5 |  | W10823711replaces 8523698 Element, Surface — LR 1200W | $92.55 Part Advantage |
| 5 | | Element, Surface — LF 900/1800/2500W | Discontinued |
| 5 | | 8285937NLA Element, Surface — RR 1000/2000W | Discontinued |
| 5 |  | W10823699replaces 8523697 Element, Surface — RF 1500W | $92.39 Parts Dr |
| 6 | – | 8285933 Rail, Element — Right | - |
| 6 | – | 8286054 Rail, Element — Left | - |
| 7 | – | 8285809 Box, Burner | - |
| 8 |  | Seal, Infinite Switch (4) | $28.85 Part Advantage |
| 9 | – | W10169758 Shield, Vent | - |
| 10 | – | 3190656 Drip Bowl | - |
| 11 | – | 4455354 Plate, Switch Mounting | - |
| 12 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 13 |  | WP4456836replaces 4456836 Switch, Speed Control | $98.20 Part Advantage |
| 14 |  | WP3191049replaces 3191049 Switch, Infinite — LR/RF | $66.87 Part Advantage |
| 14 |  | WP8286070replaces 8286070 Switch, Infinite — LF | $90.57 Part Advantage |
| 14 |  | WP4456027replaces 4456027 Switch, Infinite — RR | $67.40 Part Advantage |
| 15 |  | Seal, Switch Cover | $27.77 Part Advantage |
| 16 |  | W10491984replaces 3192439 Seal, Limiter (4) | $6.20 Parts Dr |
| 17 | | W10142241NLA Frame, Cooktop | Discontinued |
| 18 |  | WP8286096BLreplaces 8286096BL Knob, Control | $11.73 Parts Dr |

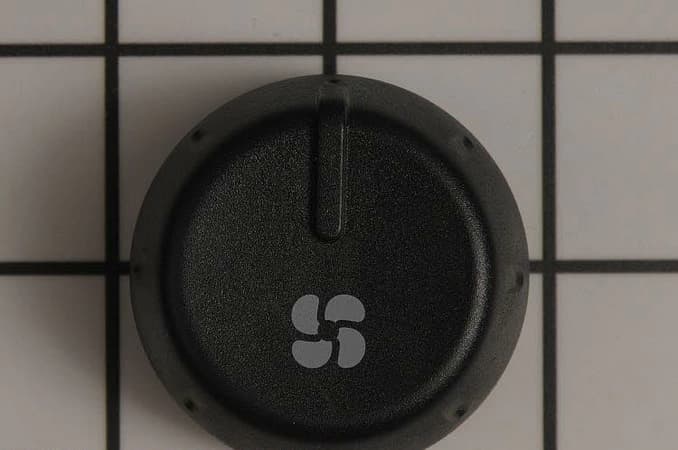

| 19 |  | WP8286097BLreplaces 8286097BL Knob, Blower Switch | - |
| 20 | | 8285875NLA Grille, Air | Discontinued |
| 21 | | Filter, Grease | - |
| 22 |  | Spring, Locator | $7.15 ApplianceParts Pro |
| 23 | – | W10137040 Gasket, Vent Shield | - |
| 24 | | Light, Hot Surface Indicator | - |
| 25 | – | 3193094 Plate, Cover | - |
