Model
KitchenAid KEHU309SSS02
30" Built−In Electric Combination Oven Convection Microwave Upper
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KEHU309SSS0230" Built−In Electric Combination Oven Convection Microwave Upper
9 diagrams231 parts
Parts Sections (9)

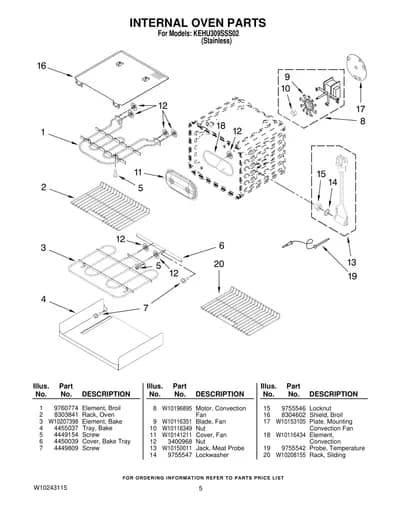

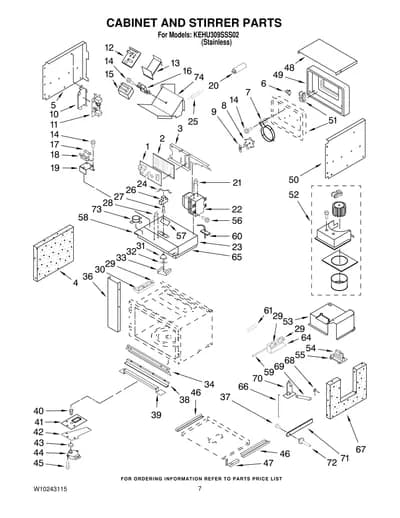

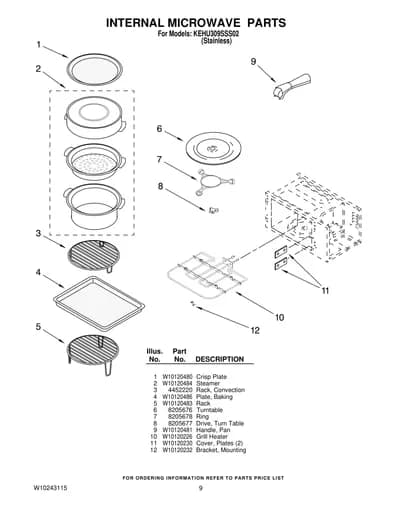

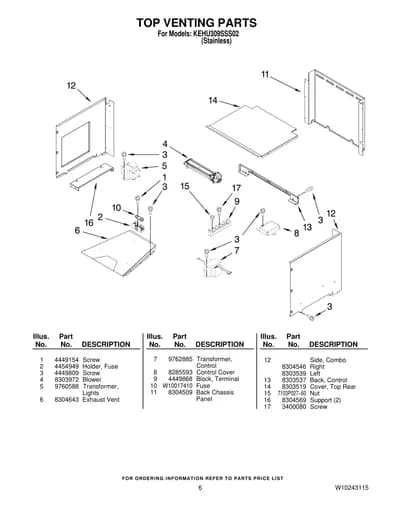

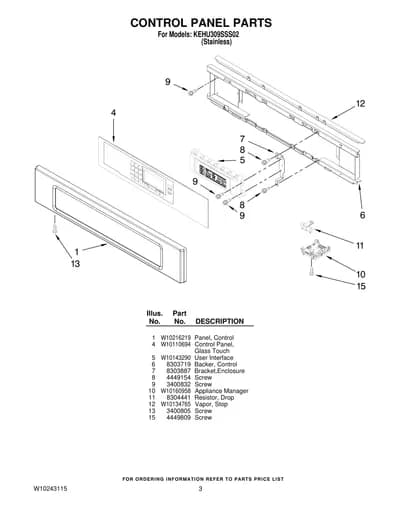

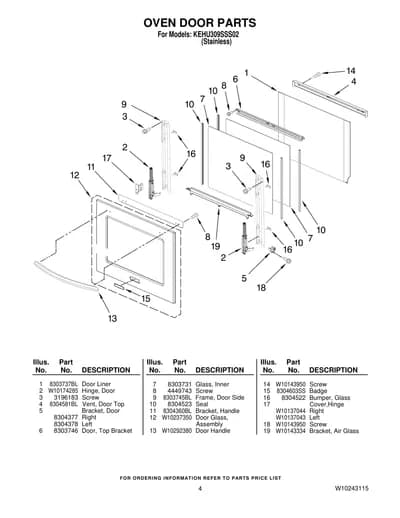

Diagram

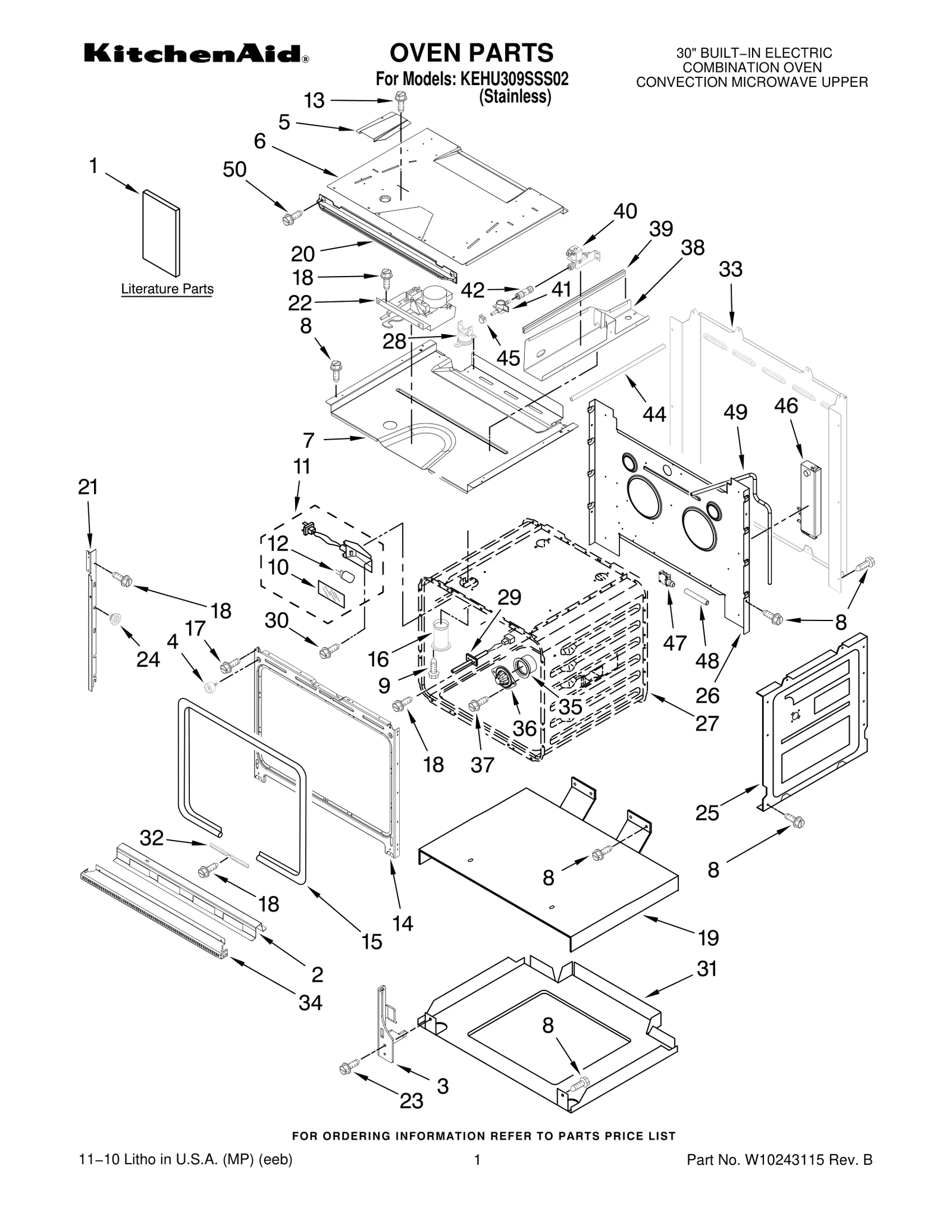

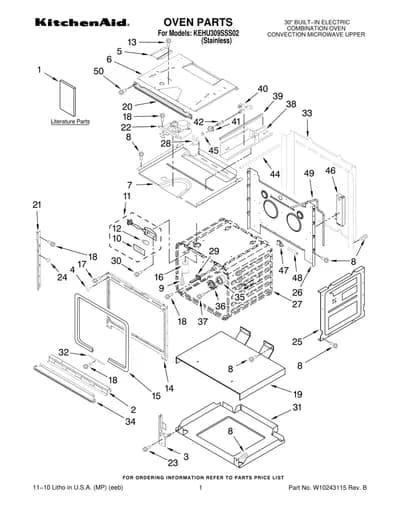

OVEN PARTS
Parts in OVEN PARTS
59 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10140564 Installation Instructions Use & Care Guide | - |
| 1 | – | W10162201 Oven | - |
| 1 | – | W10138787 Microwave Tech Sheet | - |
| 1 | – | W10220958 English | - |
| 1 | – | W10220959 French Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | W10153090NLA Bracket, Base | Discontinued |
| 3 |  | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage |
| 3 |  | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage |
| 4 |  | Bumper, Door | $4.44 Part Advantage |
| 5 | – | 8303829 Exhaust,Vent Slope | - |
| 6 | – | W10181196 Divider, Vent | - |
| 7 | | Top Chassis | - |
| 8 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 9 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 10 | | 4452163NLA Lens, Light | Discontinued |
| 11 |  | WP4448972replaces 4448972 Oven Light, Assembly | $69.91 PartSelect |
| 12 |  | WP4452164replaces 4452164 Bulb, Light | $34.07 Part Advantage |
| 13 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 14 | | Frame, Front | - |
| 15 |  | WP8304493replaces 8304493 Gasket, Door | $61.22 Part Advantage |
| 16 |  | W10861715replaces 4452158 Tube, Vent | - |
| 17 |  | WPW10650400replaces 4449040 Screw | - |
| 18 | | WP3400893replaces 3400893 Screw | - |
| 19 | – | 4451478 Support, Insulation | - |
| 20 | | 8303685NLA Center Vent | Discontinued |
| 21 | | 8303679BLNLA Mounting Rail,Side — Right | Discontinued |
| 21 | | 8303680BLNLA Mounting Rail,Side — Left | Discontinued |
| 22 |  | W11029221replaces W10128708 Latch, Mortorized | $111.84 Part Advantage |
| 23 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 24 |  | WP4448444replaces 4448444 Mounting Grommet, Rail | $4.32 Parts Dr |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | – | W10153104 Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 28 |  | WP8304452replaces 8304452 Thermal Fuse | $63.22 Amazon |
| 29 |  | WPW10131825replaces W10131825 Sensor | $50.18 Part Advantage |
| 30 |  | Screw | $16.95 ApplianceParts Pro |
| 31 | – | 8303516 Base, Chassis | - |
| 32 | | W10153361NLA Retainer, Gasket | Discontinued |
| 33 | | Cover, Back | - |
| 34 | | Trim, Bottom Vent | Discontinued |
| 35 | | Orifice, Boiler Slip Fit | - |
| 36 | | Cover, Boiler Orifice | - |
| 37 | – | 8304640 Screw | - |
| 38 | – | W10155510 Enclosure | - |
| 39 | – | W10077010 Gasket, Enclosure | - |
| 40 | | Valve, Solenoid | - |
| 41 |  | WPW10076760replaces W10076760 Sensor, Conductivity Slip Fit | $94.23 ApplianceParts Pro |
| 42 | | W10169348NLA Bracket, Thermostat | Discontinued |
| 44 | | WPW10076910replaces W10076910 Tubing | - |
| 45 |  | WP489503replaces 9761146 Clamp, Crimp | $6.21 Parts Dr |
| 46 |  | 8186352replaces 9758598 Boiler Assembly | - |
| 47 |  | Switch, Pressure | - |
| 48 | | WPW10076930replaces W10076930 Hose | - |
| 49 | – | W10142627 Tube−Copper, Steam | - |
| 50 |  | WP4450038replaces 4450038 Screw NOT ILLUSTRATED INSULATION | $2.30 Part Advantage |
| 50 | | Insulation, Wrap | - |
| 50 | | Insulation, Back | - |
