Model
KitchenAid KERA205PBL5
30" Electric Ceran
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KERA205PBL530" Electric Ceran
6 diagrams223 parts

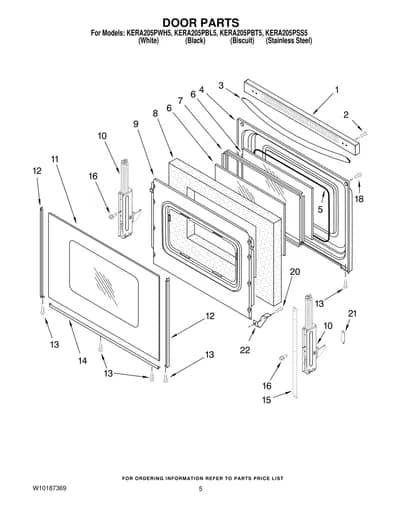

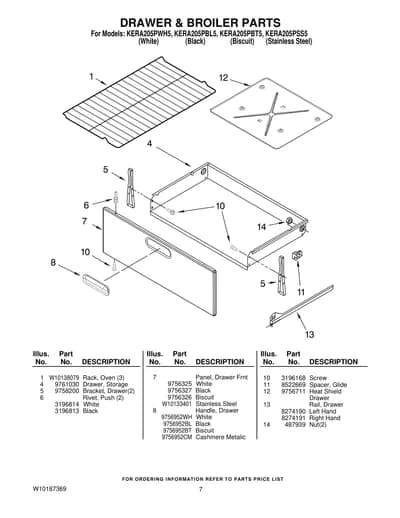

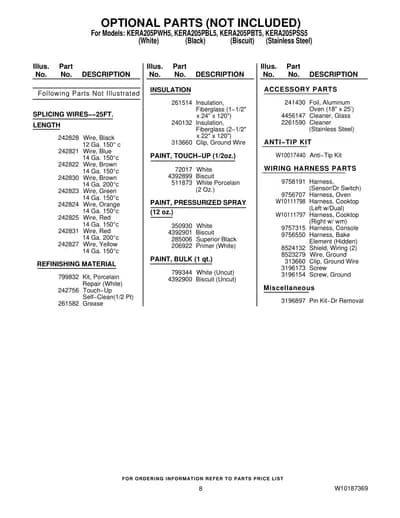

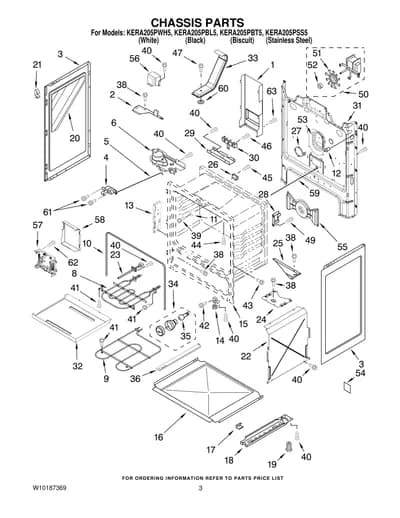

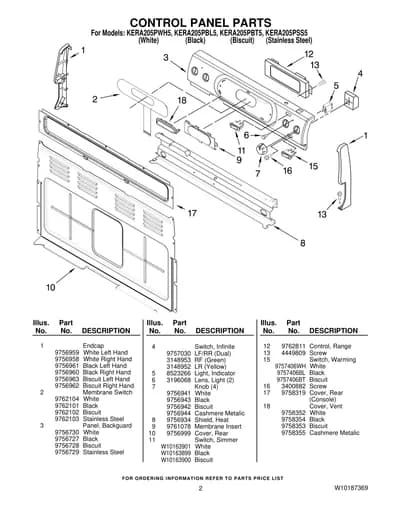

Parts Sections (6)
Diagram

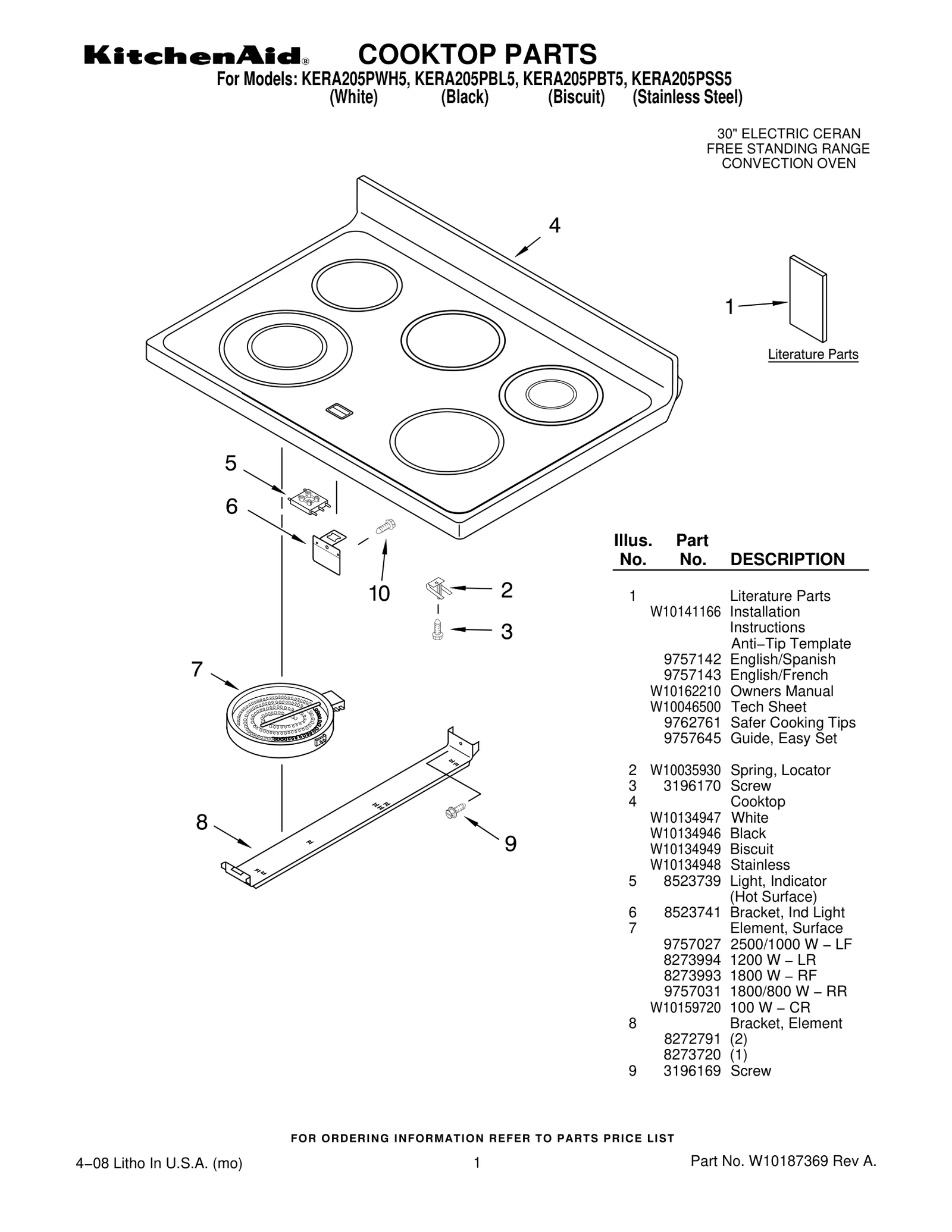

COOKTOP PARTS
Parts in COOKTOP PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10141166 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10162210 Owners Manual | - |
| 1 | – | W10046500 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 1 | – | 9757645 Guide, Easy Set | - |
| 2 |  | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | W10134947 Cooktop — White | - |
| 4 | – | W10134946 Cooktop — Black | - |
| 4 | – | W10134949 Cooktop — Biscuit | - |
| 4 | – | W10134948 Cooktop — Stainless | - |
| 5 | | Light, Indicator | - |
| 6 | – | 8523741 Bracket, Ind Light | - |
| 7 |  | WP8523047replaces 9757027 Element, Surface — 2500/1000 W − LF | $124.56 Parts Dr |
| 7 |  | W11171119replaces 8273994 Element, Surface — 1200 W − LR | $85.73 Part Advantage |
| 7 |  | WP8273993replaces 8273993 Element, Surface — 1800 W − RF | $112.36 Part Advantage |
| 7 | | 9757031NLA Element, Surface — 1800/800 W − RR | Discontinued |
| 7 | – | W10159720 Element, Surface — 100 W − CR | - |
| 8 | | (2) | - |
| 8 | – | 8273720 (1) | - |
| 9 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
